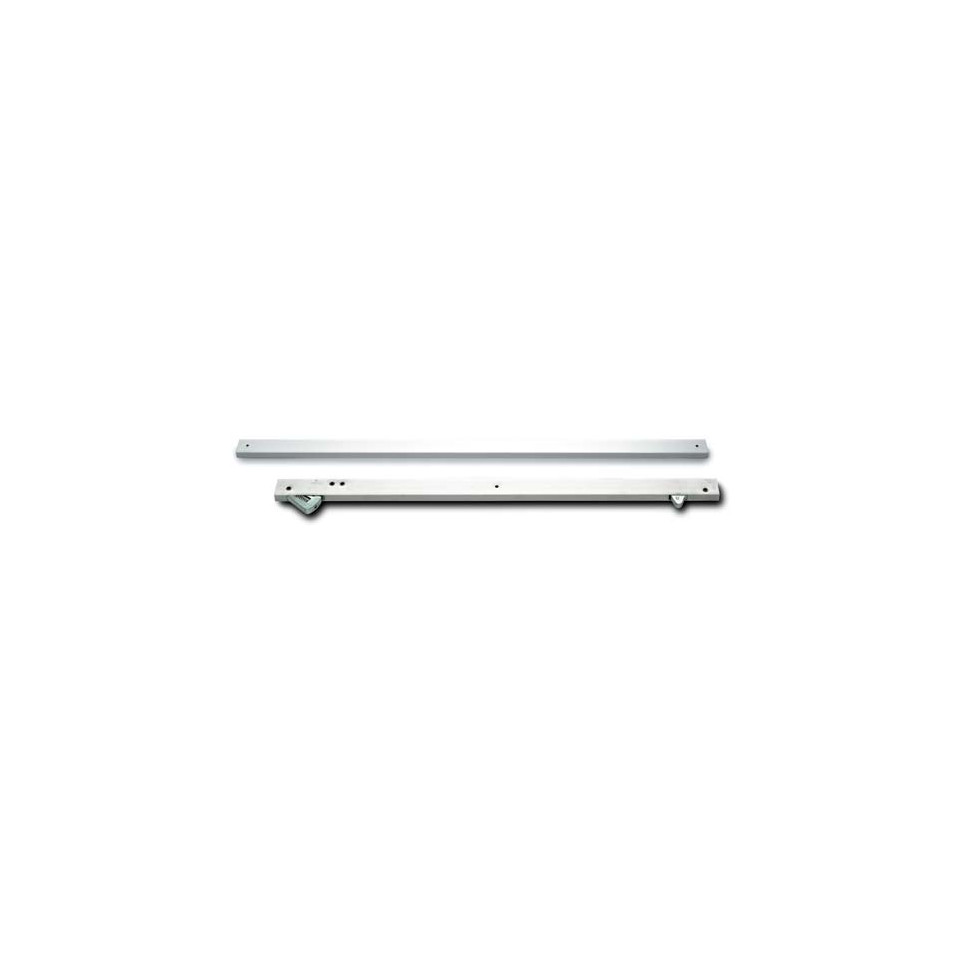

Linear Aluminium Cam Door Coordinator Tonic Line TL1004 / pc

Product

Aluminium linear door coordinator with cams designed to control the closing sequence of double-leaf doors, including asymmetrical and fire-resistant doors equipped with door closers in commercial, industrial, or residential buildings.

Specifications

• Robust aluminium body with cam mechanism for reliable sequencing, supplied with zinc-plated steel protection plates (33 x 76 x 2.5 mm) for leaf impact zones.
• Suitable for use on fire-resistant double doors with door closers, designed for long-term mechanical performance in intensive use environments.
• Enables correct closing order of active and semi-fixed leaves; optional extension and finishing profile FG 136524 allows a continuous selector across the full opening width; delivered with complete fixing kit and installation instructions.

Usage

Install the coordinator on the frame above double doors according to the supplied instructions, adjust it to the specific door configuration, then connect it to the door closers. During operation, the cams control the closing sequence so that the semi-fixed leaf closes first, followed by the active leaf, ensuring correct latching and fire or security performance.

FAQ

1. [What is the main function of the TL1004 door coordinator?]
   It ensures that the semi-fixed leaf of a double door closes before the active leaf, guaranteeing proper latching and reliable performance of fire or security doors.

2. [On which types of doors can this coordinator be used?]
   It is intended for double-leaf doors, including asymmetrical and fire-resistant models equipped with door closers, in both commercial and residential applications.

3. [Are protection elements included for the door leaves?]
   Yes, it is supplied with zinc-plated steel protection plates that are fixed where the leaves contact the cams to limit wear and protect the door surfaces.

4. [Is there an option to cover the full width of the opening?]
   An optional extension and finishing profile FG 136524 is available to create a continuous closing selector across the entire width of the door opening.

5. [Are other sizes available for different door widths?]
   On special order, model TL 1002 is available for double doors from 1170 to 1460 mm, and model TL 1005 for double doors from 2311 to 2660 mm.
