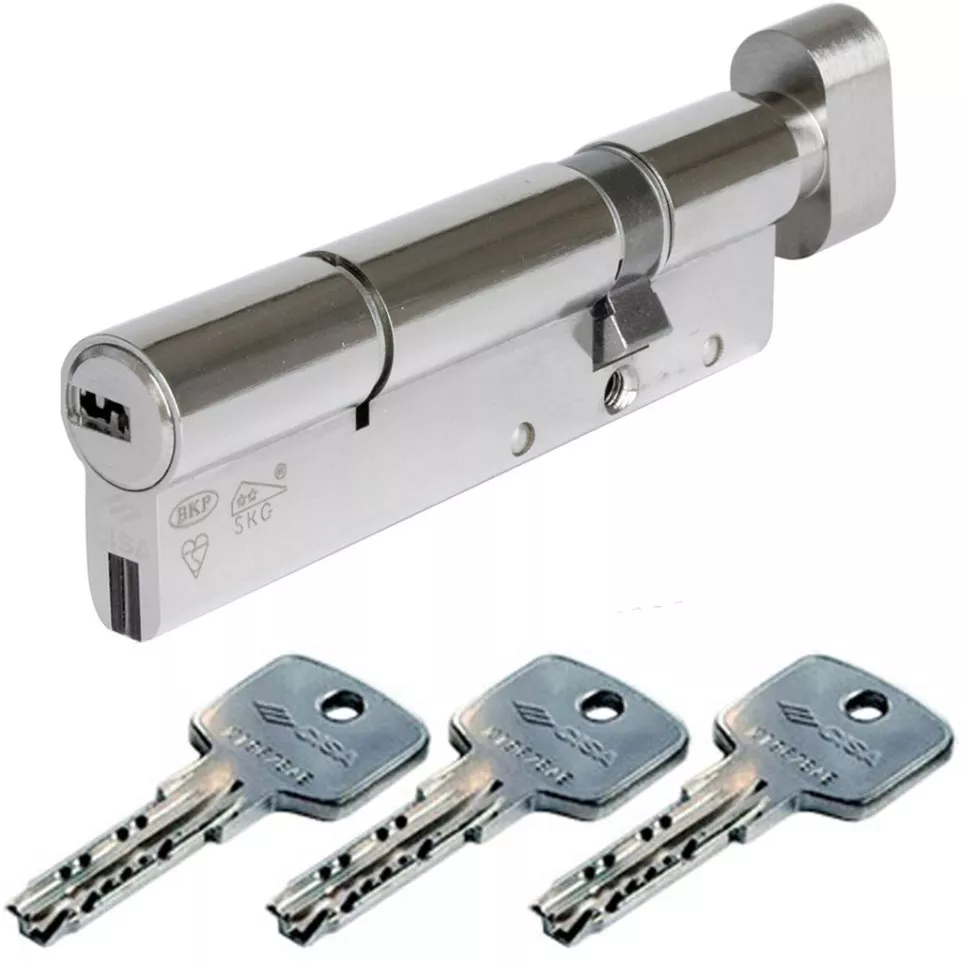

CISA Astral S Euro Profile Thumbturn Cylinder 30/B80 per piece

Product

The Cisa Astral S Europrofile Knob Cylinder offers robust mechanical security for doors in residential or commercial settings. Designed for easy installation, it provides multiple layers of protection against common break-in techniques and supports complex master key systems.

Specifications

• 10-pin key bitting system, including 6 active and 4 passive pins
• Brass cylinder body with laminated segment pack for anti-snap and anti-torsion protection
• Hardened steel anti-drill elements; special-shaped counter pins for anti-picking security
• Protruding cam protects against pulling attacks; DIN steel cam
• Supports up to 63,000 different cylinders per master key, with over 1,600,000 possible variations
• Rated for 100,000 cycles durability
• Compliant with EN 1303 European standard, SKG** certified, anti-bumping (BKP) protection
• Nickel-plated finish; reversible nickel-plated brass key; cylinder nickel-plated
• DUO function: enables operation of the lock from one side even with a key inserted on the other
• Supplied without knob (order separately); key copy protection not included

Usage

Install the cylinder in compatible Europrofile locks for enhanced physical security. The unit integrates easily into master key systems for controlled access in multi-user buildings and provides reliable performance in high-traffic environments. The DUO function maintains usability when a key is inserted on one side.

FAQ

1. What type of protection does this cylinder offer against forced entry?
   It has anti-snap, anti-torsion, anti-pull, anti-drill, and anti-pick features, providing multi-level protection against common attacks.

2. Can I use this cylinder with a master key system?
   Yes, it supports up to 63,000 cylinders per master key and over 1.6 million variations for complex access hierarchies.

3. Does the cylinder have key duplication protection?
   There is no protection against unauthorized key duplication; standard keys can be copied.

4. Is the knob included with the cylinder?
   No, the knob is not supplied and must be ordered separately.

5. How durable is the Cisa Astral S cylinder?
   The cylinder is rated for up to 100,000 operating cycles, ensuring long life in demanding environments.
