Hettich MultiBlue Hole Marking Jig per piece

Product

The Hettich MultiBlue Drilling Jig is a compact, versatile tool designed for precise hole marking and drilling during on-site furniture assembly. Ideal for professional installation of fittings where access to large machinery is limited.

Specifications

• Double-sided design made from durable blue plastic
• Facilitates System 32 hole spacing, Ø 35 mm and Ø 26 mm hinge cup drilling with 4 mm cup distance, Ø 25 mm and Ø 20 mm holes for connecting fittings
• Supports marking and drilling for mounting plates, dowels, shelf supports, Rastex, and various Hettich fittings
• Lightweight and portable for convenient on-site use

Usage

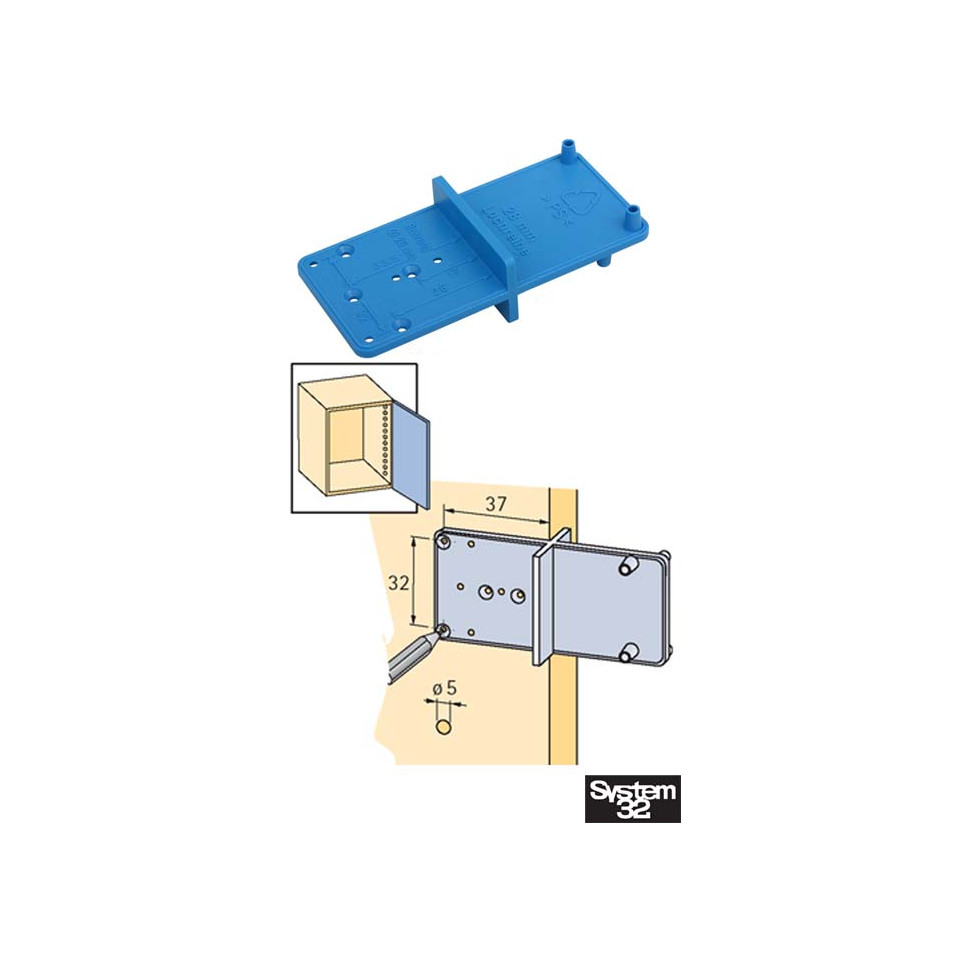

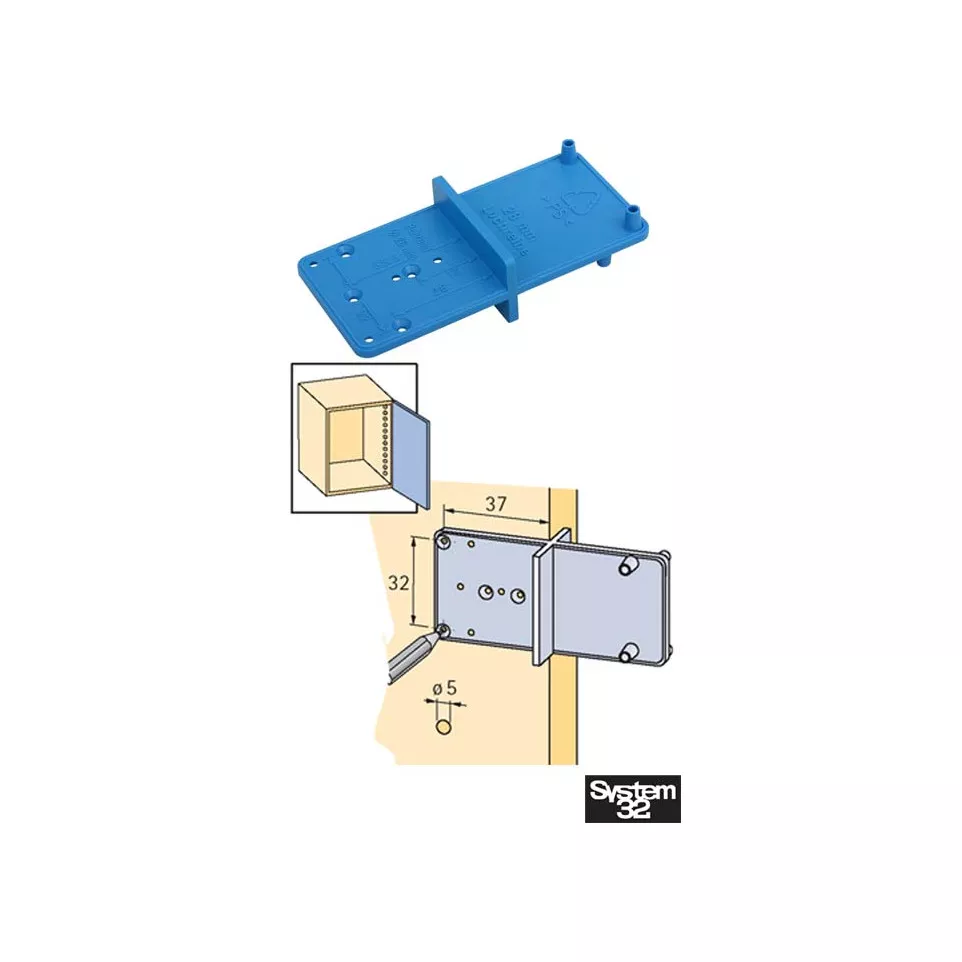

Place the MultiBlue jig on your workpiece to accurately center and mark or drill holes for hinges, mounting plates, dowels, or connecting hardware. The jig’s predefined templates guide hole placement for efficient, repeatable assembly without large-scale equipment.

FAQ

1. What materials is the MultiBlue jig suitable for?

• It is designed primarily for use with wood and wood-based panels commonly used in furniture assembly.

2. Does it support both hinge and dowel drilling?

• Yes, it accommodates hinge cup holes, dowel holes, and connecting fitting holes with various diameters.

3. Can it be used for System 32 drilling?

• Yes, it features guides specifically for the System 32 hole spacing standard.

4. Is the jig reusable and easy to clean?

• The high-quality plastic construction allows for repeated use and is simple to clean between projects.

5. Does the MultiBlue jig require special drill bits?

• Standard metric drill bits compatible with the indicated diameters are sufficient for all supported drilling operations.
