Hettich BlueJig Centering Jig for Hinges and Mounting Plates / pc

Product

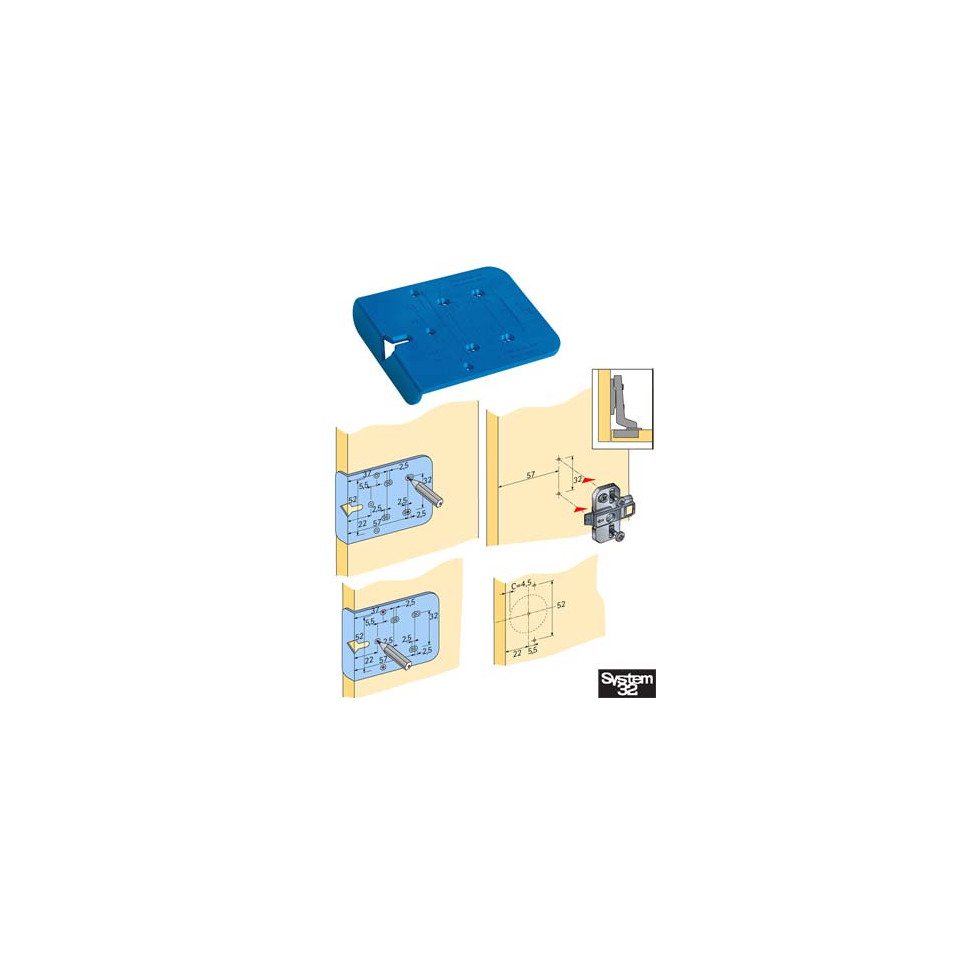

The Hettich BLUEJIG centering jig enables precise, on-site drilling for hinge and mounting plate installations, specifically tailored for automatic hinges such as Intermat, Ecomat, and Slide-line, as well as compatible central mounting fittings.

Specifications

• Made from robust blue plastic, designed for durability on construction sites
• Compatible with System 9000 (Intermat, Ecomat), System 2000 (Slide-line), and central mounting plate fittings
• Provides separate centering positions to support both standard and central mounting applications
• Facilitates accurate marking of hole center patterns for overlay, half overlay, and inset front panels
• Manufactured by Hettich, a recognized brand in assembly jigs

Usage

Align the BLUEJIG on the required panel or door, use the marked templates to position and drill precise holes for hinges and mounting plates. The jig accommodates panel variations and offers clear centering guides for both standard and central mounting solutions.

FAQ

1. What hinge systems is the BLUEJIG compatible with?
   The jig is compatible with Intermat, Ecomat, and Slide-line hinge systems, as well as their respective mounting plate variants.

2. Can I use the BLUEJIG for central mounting hardware?
   Yes, it features dedicated centering positions for central mounting fittings and the corresponding Hettich Top base plate.

3. Is the BLUEJIG suitable for use on-site or only in workshops?
   Its rugged plastic construction is designed for practical on-site use during installations.

4. Does the BLUEJIG support different panel types?
   It accommodates overlay, half overlay, and inset front panels, ensuring versatility in application.

5. Are special tools required to use the BLUEJIG?
   No special tools are required; standard drills and screws compatible with Hettich hardware are sufficient.
