Usage

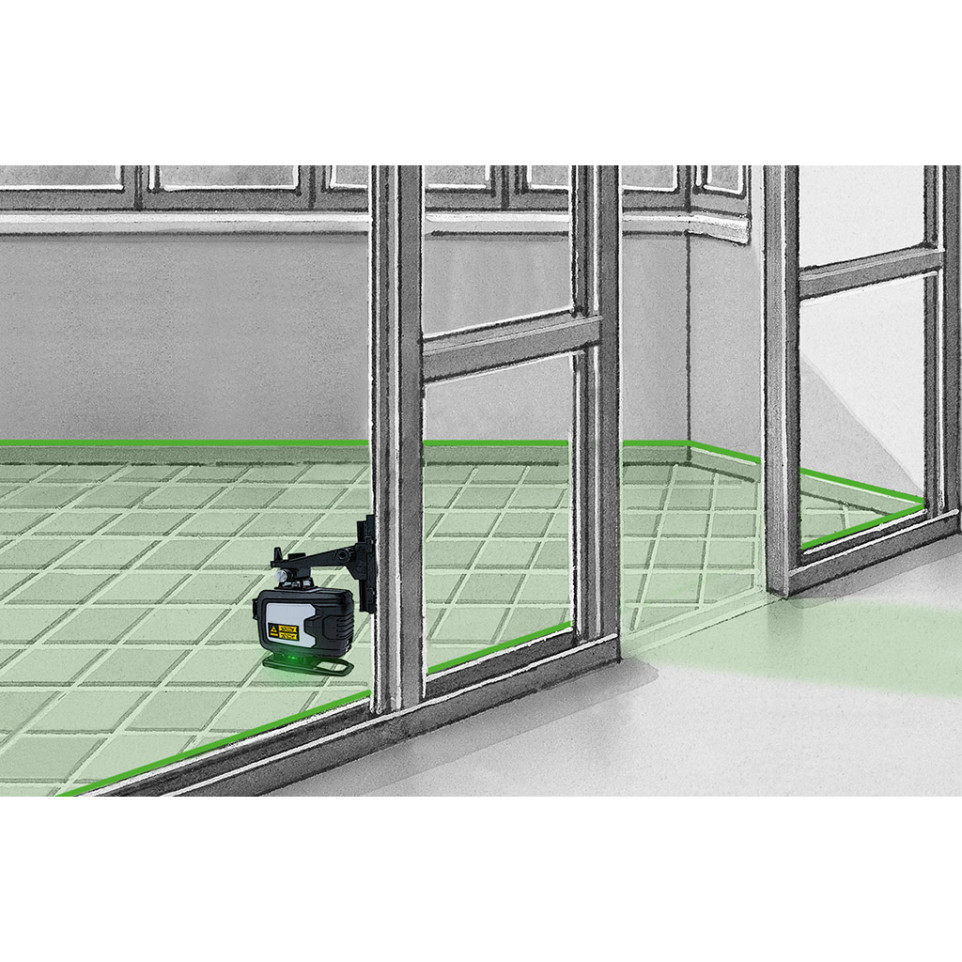

The LaserLiner PrecisionPlane 4G Pro is designed for precise alignment, leveling, and layout tasks in construction and interior fit-out. Its four green laser lines provide clear reference points for squaring, plumbing, and transfer of levels on site.
Advantages
- Projects four bright green laser lines for superior visibility in various lighting conditions.
- Self-leveling system ensures high accuracy by automatically correcting slight surface inclinations.
- Manual mode enables fixed-angle laser projection for customized alignments or inclined applications.

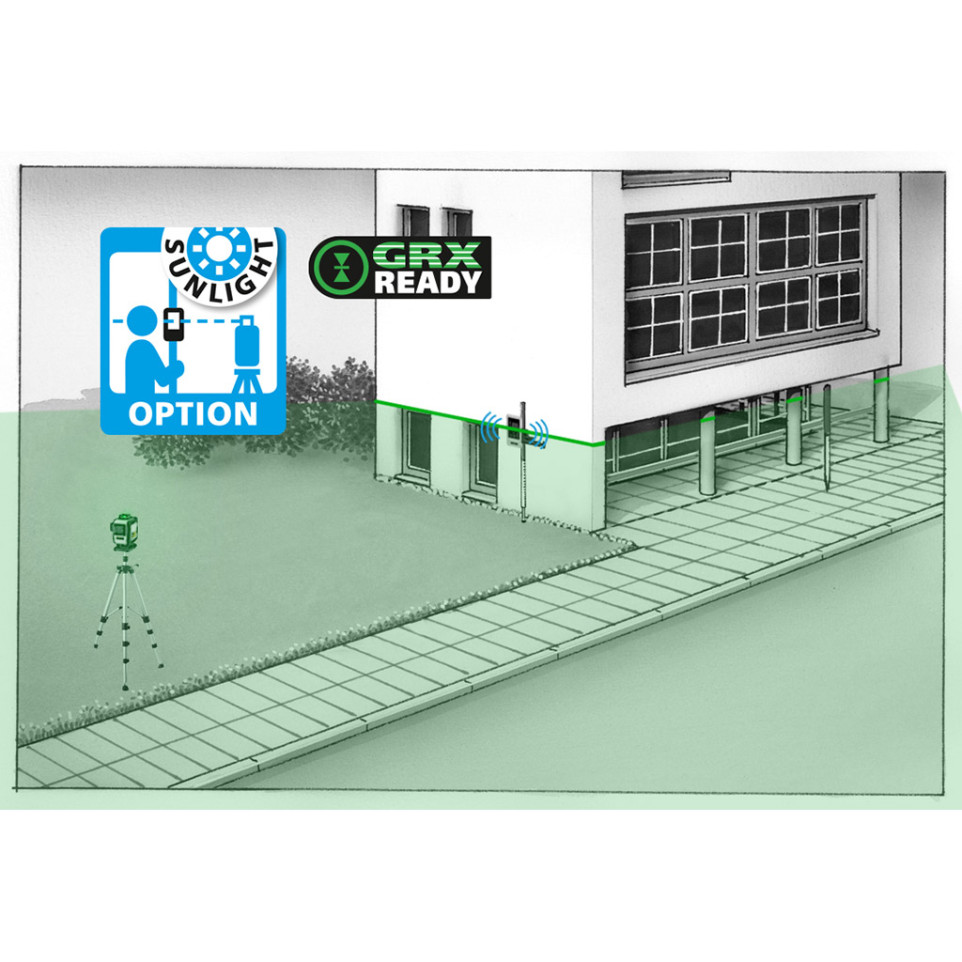

- Pulse function allows use with a laser receiver to extend working range up to 50 meters outdoors or in bright environments.

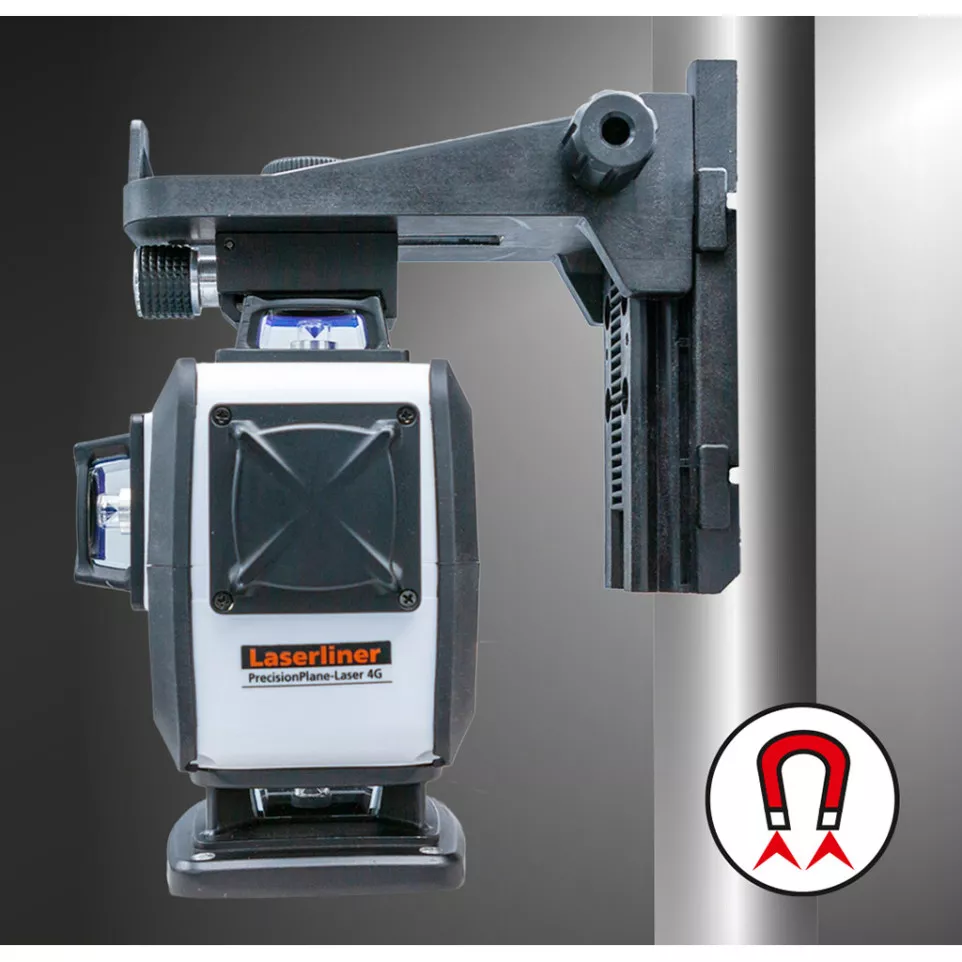

- Integrated magnetic bracket supports flexible mounting on tripods or metal surfaces; slight learning curve if new to multipoint lasers.
Specifications

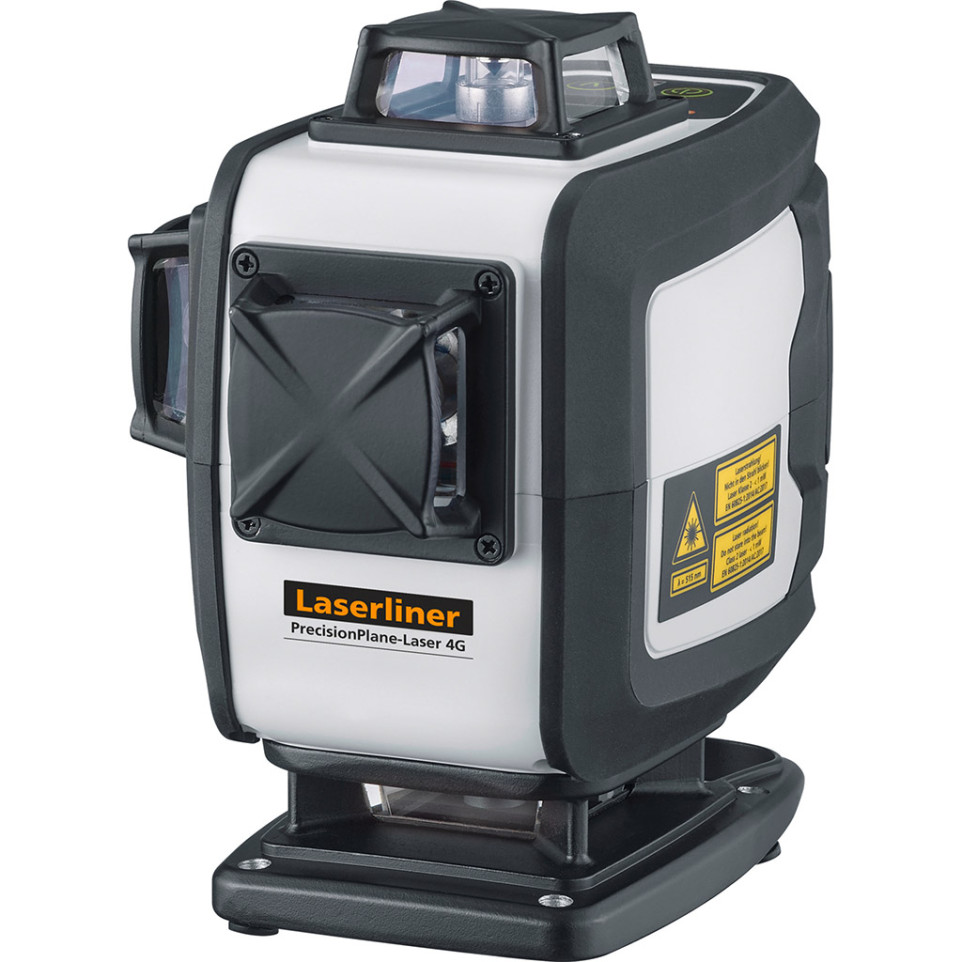

- Design & Technology: Compact housing with robust casing; integrated pendulum-based self-leveling mechanism; emits highly visible green Class II laser beams[1][4].
- Durability & Standards: IP54 dust and splash protection rating; compliant with IEC60825-1 safety standard[1].
- Performance: Accuracy of ±3mm at 10m; visible line range up to approximately 25m (extends to ~50m with receiver)[1]; includes both horizontal and vertical line projection options as well as plumb points.[1]

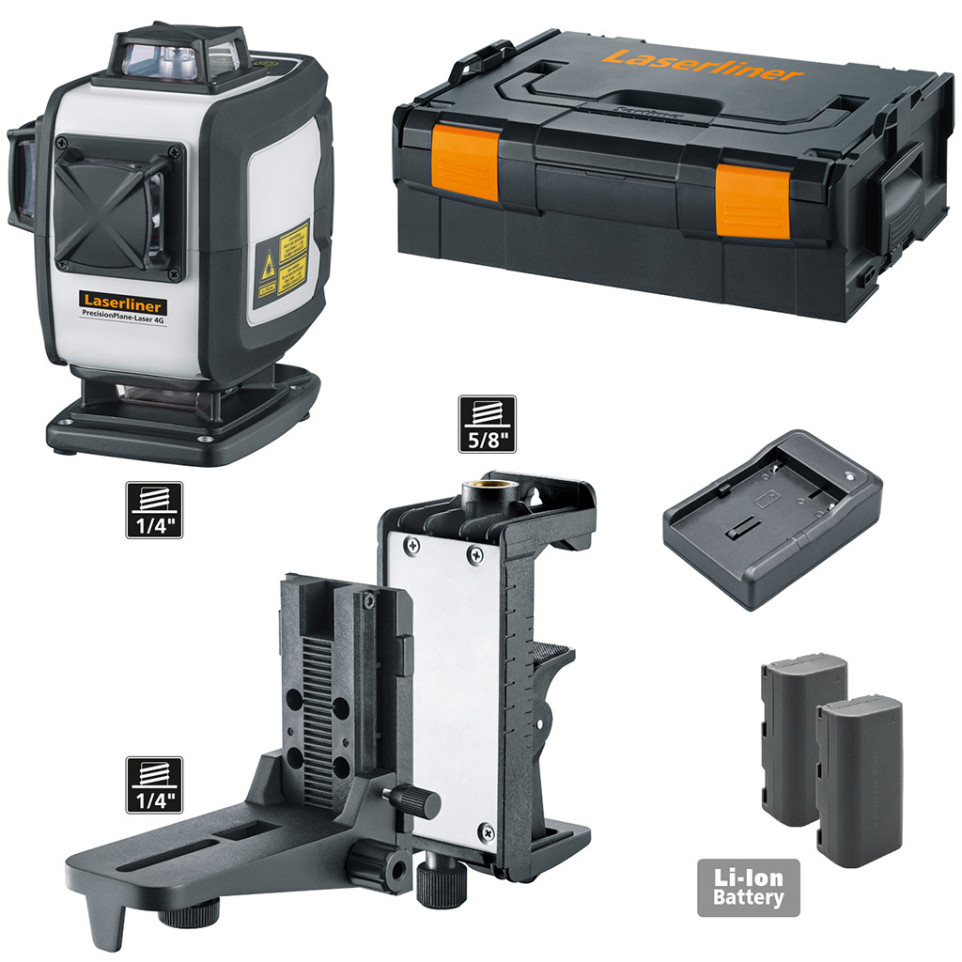

- Differentiating Features: Smart pendulum system indicates out-of-level condition and locks for transport stability; manual tilt mode for operation at angles outside the auto-level range; magnetic base mounts via standard tripod threads (¼" or ⅝"); operates on three AA batteries.[1]
How it works

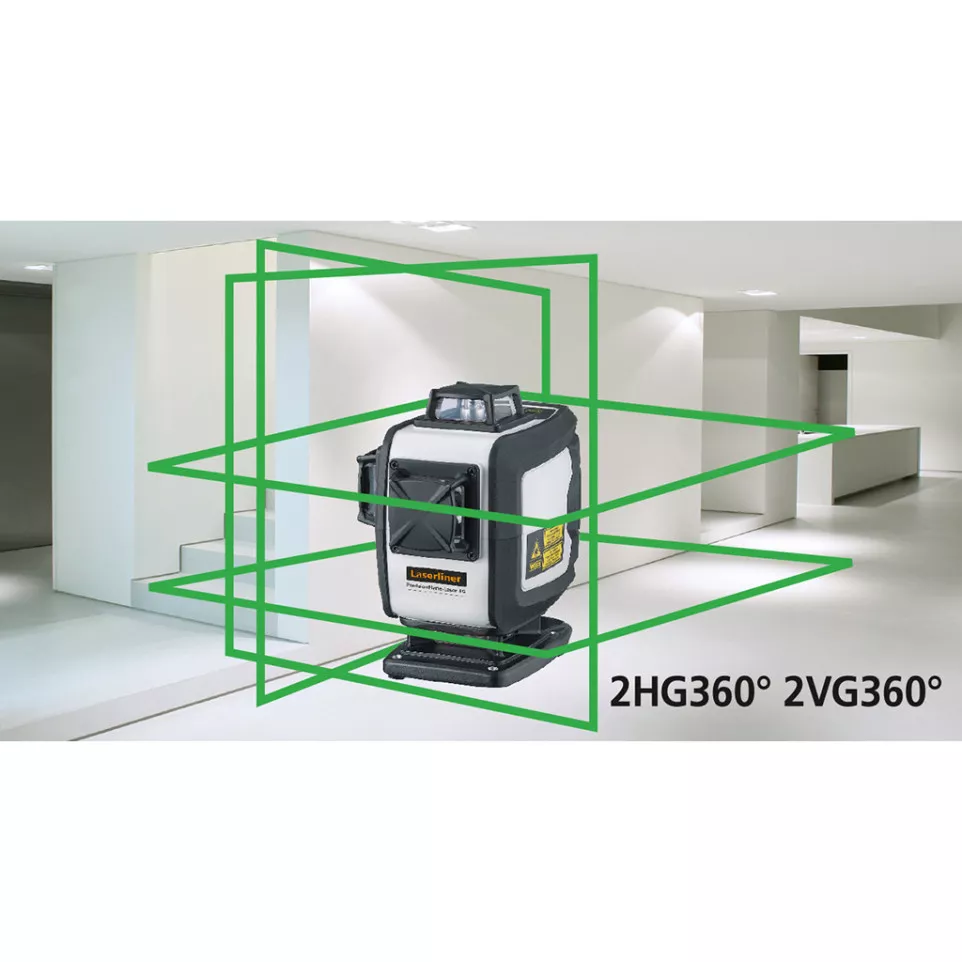

The device is positioned within the required workspace where it self-levels using an internal pendulum. Once set up, it projects four intersecting green laser lines onto surfaces. Users can select between automatic leveling or manual angle modes depending on application requirements.
