Usage

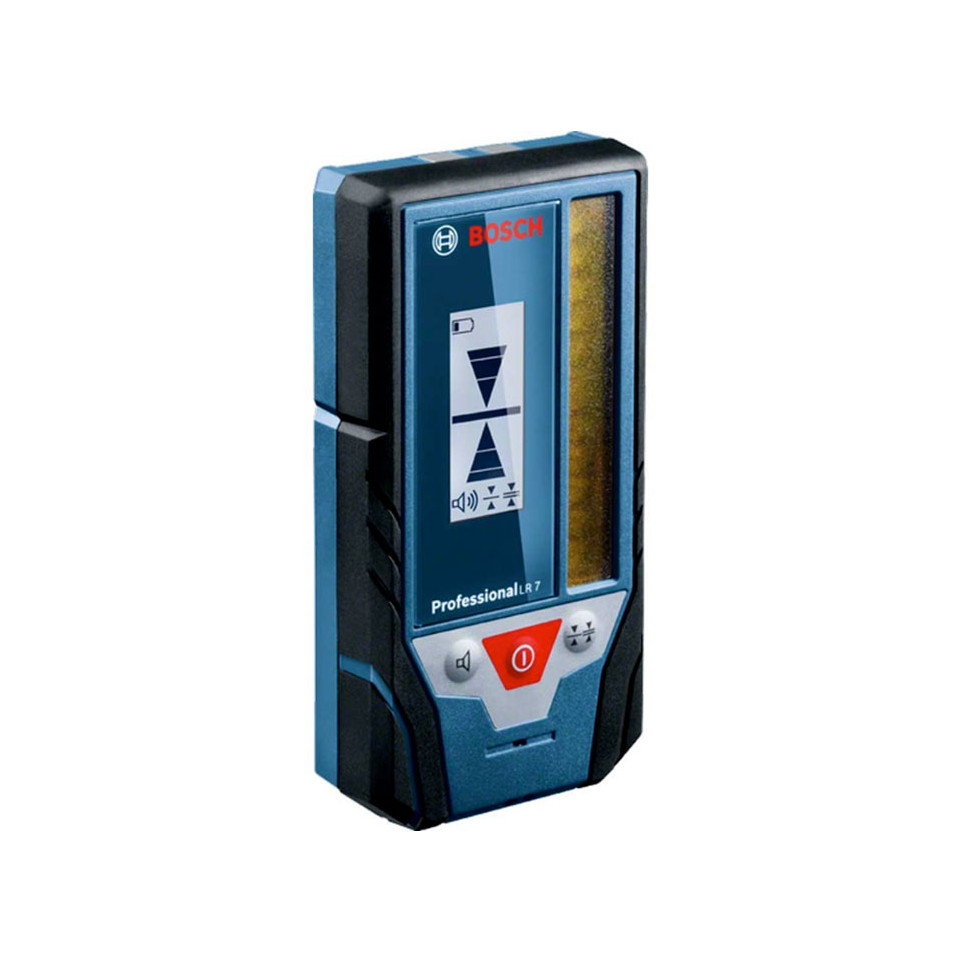

The Bosch LR7 laser receiver enables precise detection of red and green laser lines from compatible line and rotating lasers, ideal for alignment and leveling tasks in construction, interior finishing, and outdoor applications.
Advantages
- Detects both green and red laser lines for broad tool compatibility.
- Large 80 mm reception area speeds up laser line detection.
- IP54-rated housing offers dust and splash water protection on job sites.
- Visual (backlit display) and audible indicators facilitate use in diverse lighting conditions.
- Quick attachment with integrated magnets allows hassle-free setup on metal surfaces or leveling rods.
Specifications
- Tough ABS plastic body with built-in mounting magnets; supports green/red beam detection technology.[5][7]
- IP54 protection rating ensures resistance to dust infiltration and water splashes.[5][7]
- Sensing range: 5 – 50 meters depending on the connected laser; fine/coarse accuracy: ±1 mm/±3 mm.[5][7]
- Powers with two AA batteries; features an oversized backlit LCD, dual-sided LED guidance arrows, adjustable audio signals, weight approx. 150 g, dimensions: length 73 mm x width 28 mm x height 137 mm.[1][7]
How it works
The LR7 detects invisible or hard-to-see laser lines using its large reception window. Place the receiver in the projected path of a compatible Bosch line or rotary laser; visual/audible cues indicate when the unit is aligned at level height for precise measurements across distances up to 50 m.[1][5]
