Product

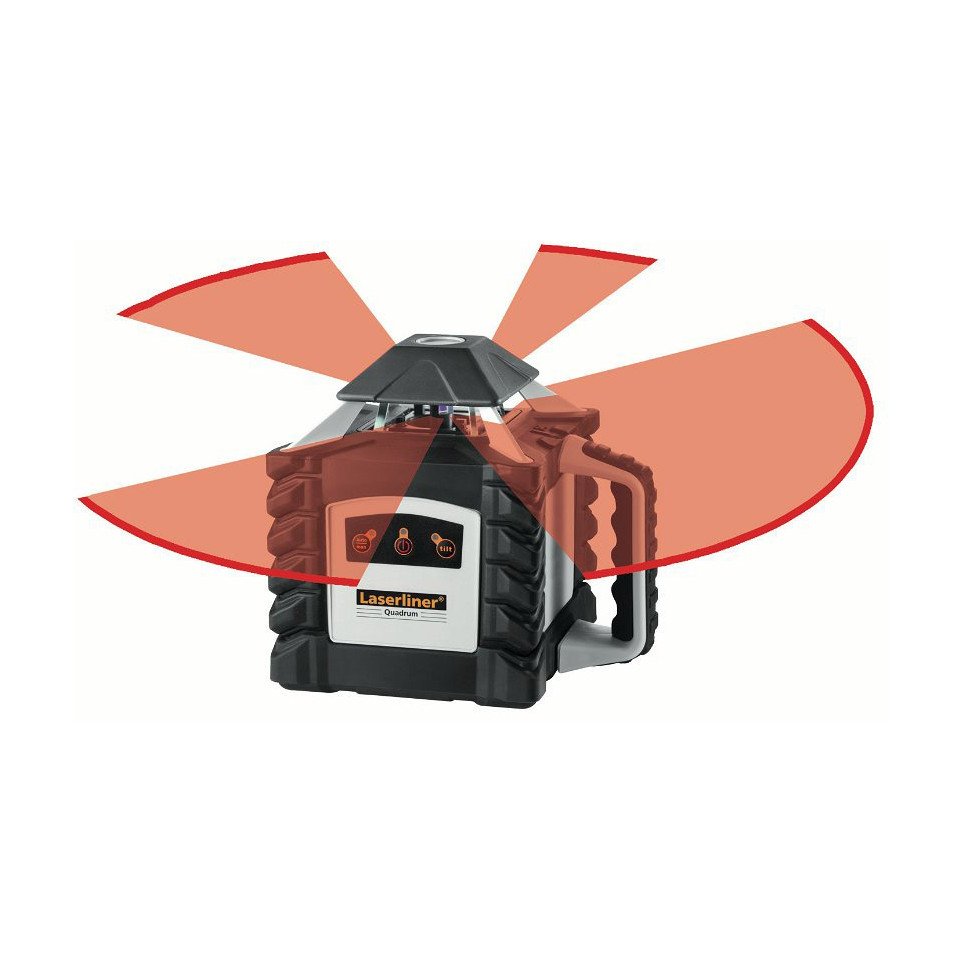

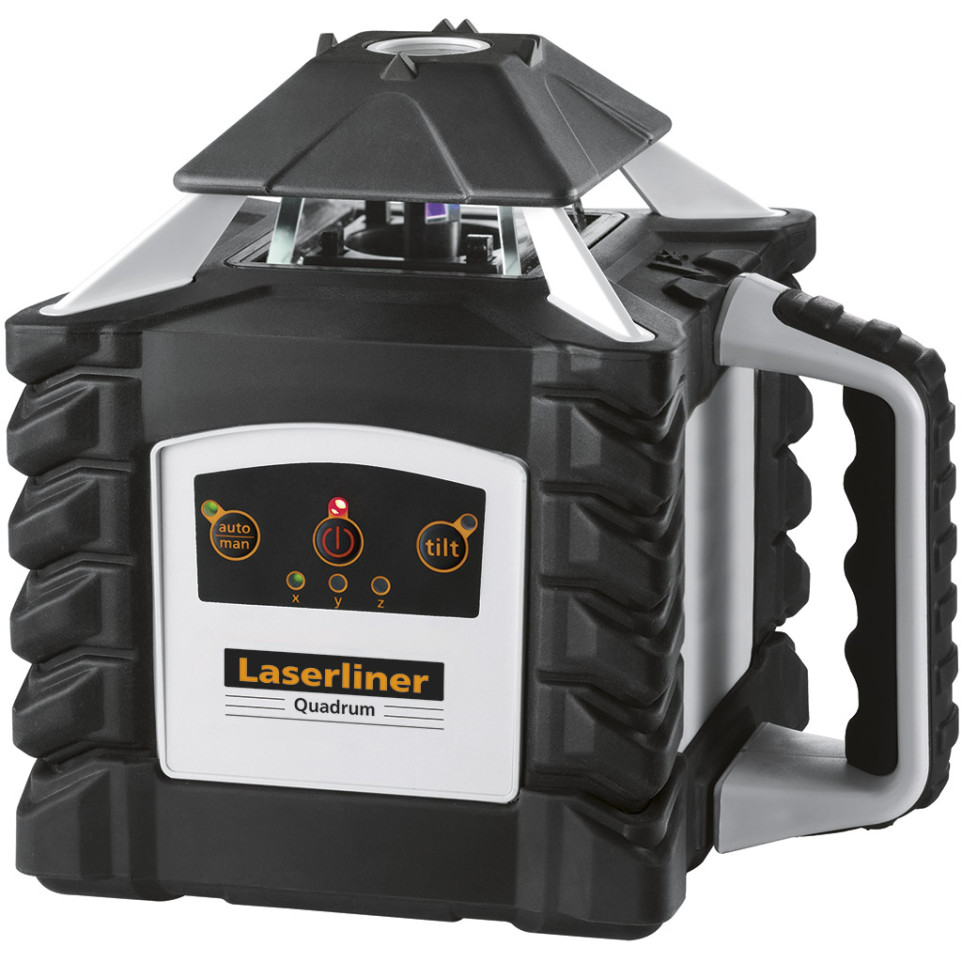

The LaserLiner Quadrum M350S is a fully automatic rotary laser designed for precise horizontal and vertical alignment in construction and surveying tasks. With its included SensoMaster laser receiver, it ensures reliable performance over long distances on demanding worksites.
Specifications
- Sturdy, ergonomic design with electronic self-levelling and servo motors
- Dust and water protection rated to IP66; robust construction for extended use
- ±5° self-levelling range, ±0.1 mm/m accuracy, 1H360°, 1V360° laser projection, 635 nm laser wavelength
- Multiple laser modes: spot, scan, rotation, and manual receiver mode
- Battery operated: up to 50 hours runtime; rechargeable batteries included
- Working range up to 700 m with SensoMaster receiver
- Anti-Drift-System and tilt warning for safety and accuracy
Usage

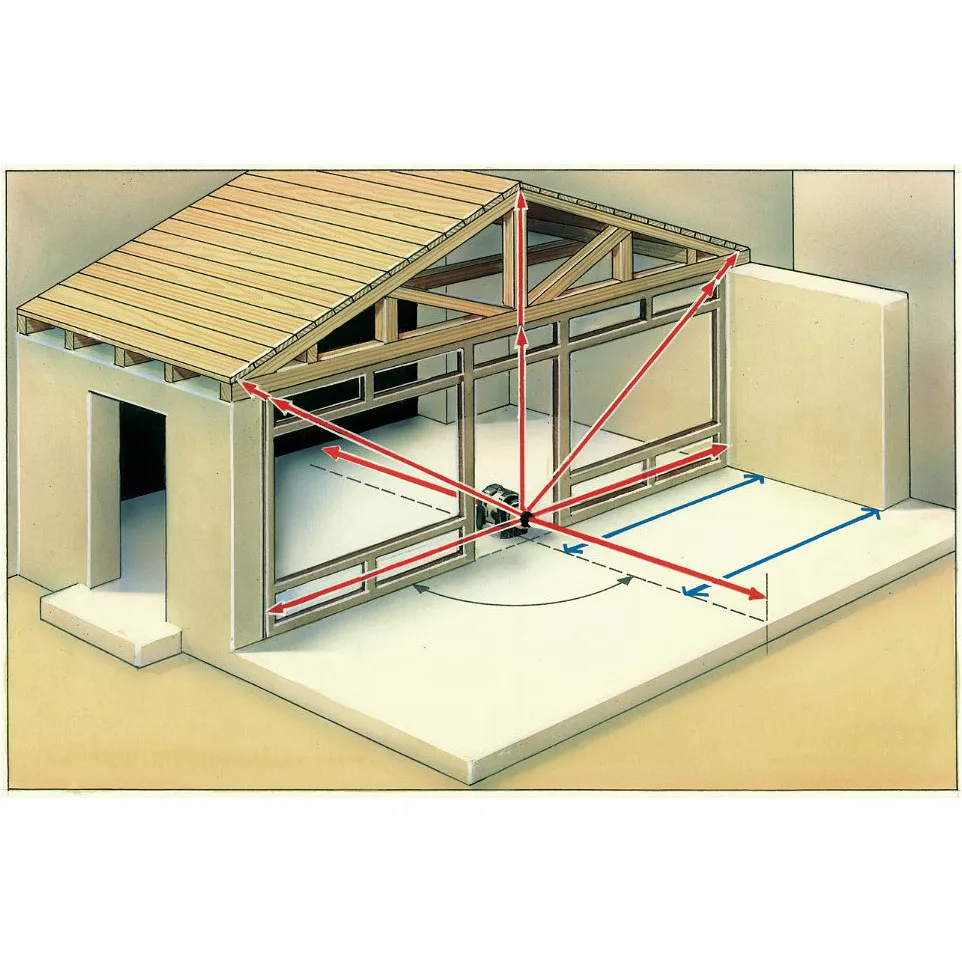

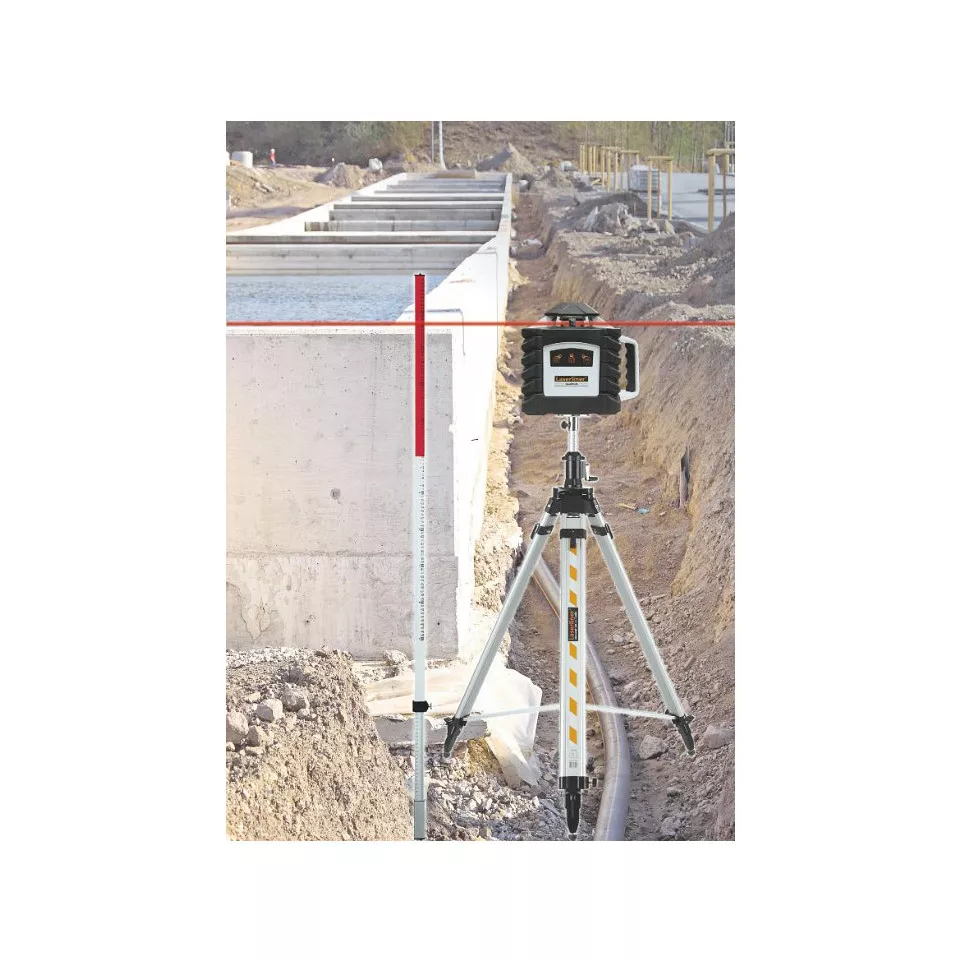

Place the Quadrum M350S on a stable surface or tripod, power it on, and it automatically self-levels within ±5°. Select the desired laser mode using the remote control. Use the SensoMaster receiver to detect and mark the laser line over distances up to 700 meters, ensuring fast and accurate reference for alignment, leveling, and construction layout tasks.
FAQ
- What is the maximum working range with the receiver?
- Up to 700 meters when using the SensoMaster receiver.
- How accurate is the Quadrum M350S?
- It achieves measurement accuracy of ±0.1 mm per meter.
- Is the device suitable for outdoor use?
- Yes, it has IP66 protection against dust and water for reliable outdoor operation.
- What power supply does it require?
- It operates on 4 x C-type batteries, either NiMH rechargeable or standard LR14.
- Does the Quadrum M350S have a tilt warning or anti-drift system?
- Yes, it includes both tilt warning and an Anti-Drift-System for safety and precision.
