Opera Maxima II Motorized Pivot Bolt Lock Backset 35mm per piece

Usage

The Opera Maxima II motorized locking system with a swinging deadbolt and 35mm backset is designed for secure access control on metal or armored doors in commercial and residential environments.

Advantages

• Motorized operation enables integration with advanced electronic access systems
• Swinging hardened steel deadbolt offers high resistance to cutting and forced entry
• Mechanical override ensures manual unlocking via European cylinder in case of power failure
• Stainless steel striking plate with adjustable anti-rebound ball-catch enhances alignment and smooth closure
• Integrated magnetic contact allows real-time monitoring of door status for security automation; cylinder not included

Specifications

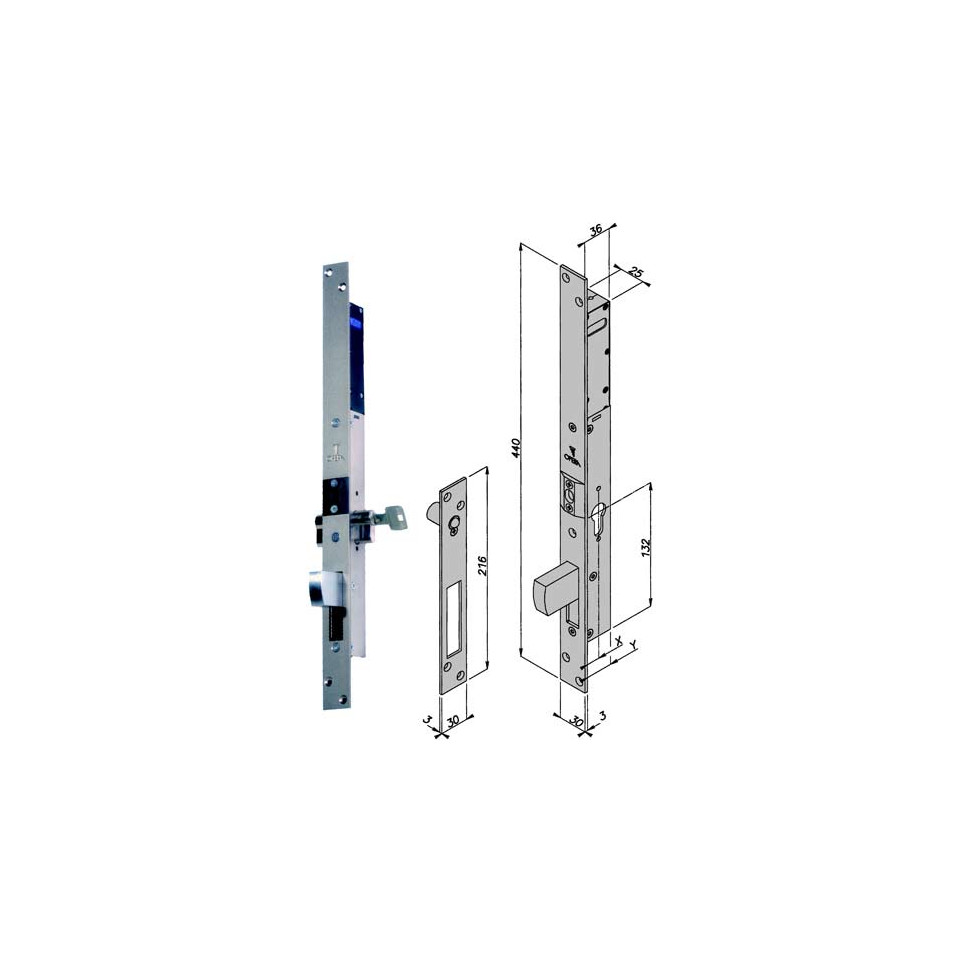

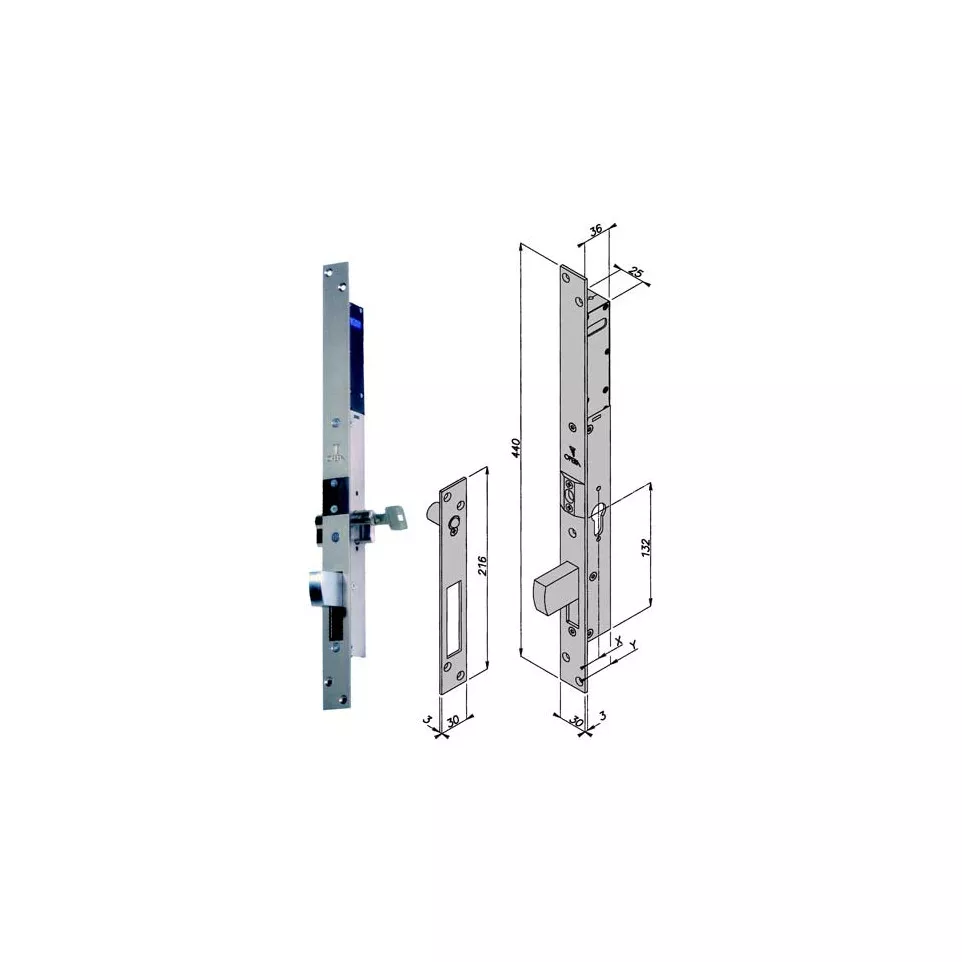

• Backset: 35 mm; Deadbolt: swinging type in hardened steel, dimensions 35 x 14 mm, extension: up to 40 mm; Striking plate size: approx. 440 x 30 x 3 mm stainless steel with adjustable receiver (up to ±16 mm)
• Main lock body dimensions: approx. 240 x 150 x 48 mm; Complies with CE EN14846 standards for motorized locks[1][2]
• Power supply: DC12V from control electronics; Inrush current at activation up to 4A (peak); Maximum actuation time for the motor is about 0.15 seconds[1][2]
• Bolt position monitored by opto-electronic circuit; Magnetic sensor extension adjustable up to ±25 mm; Quick coupler cable connection simplifies installation[1][3]

How it works

An electronic controller sends a signal that actuates the internal motor, extending or retracting the swinging deadbolt rapidly into the strike plate. Opto-electronic sensors verify bolt position while a magnetic contact provides real-time door status feedback.
