Opera Maxima II Motorized Pivoting Bolt Lock 20mm Backset per Piece
€946.38
Usage

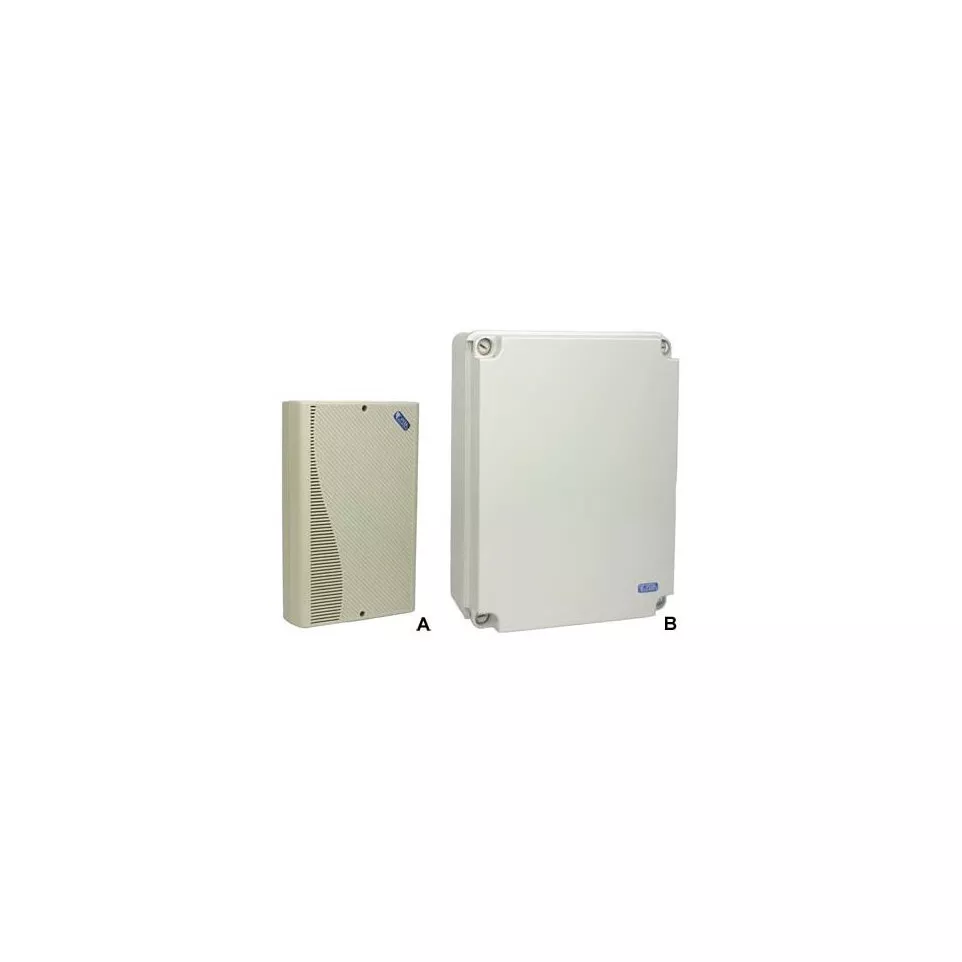

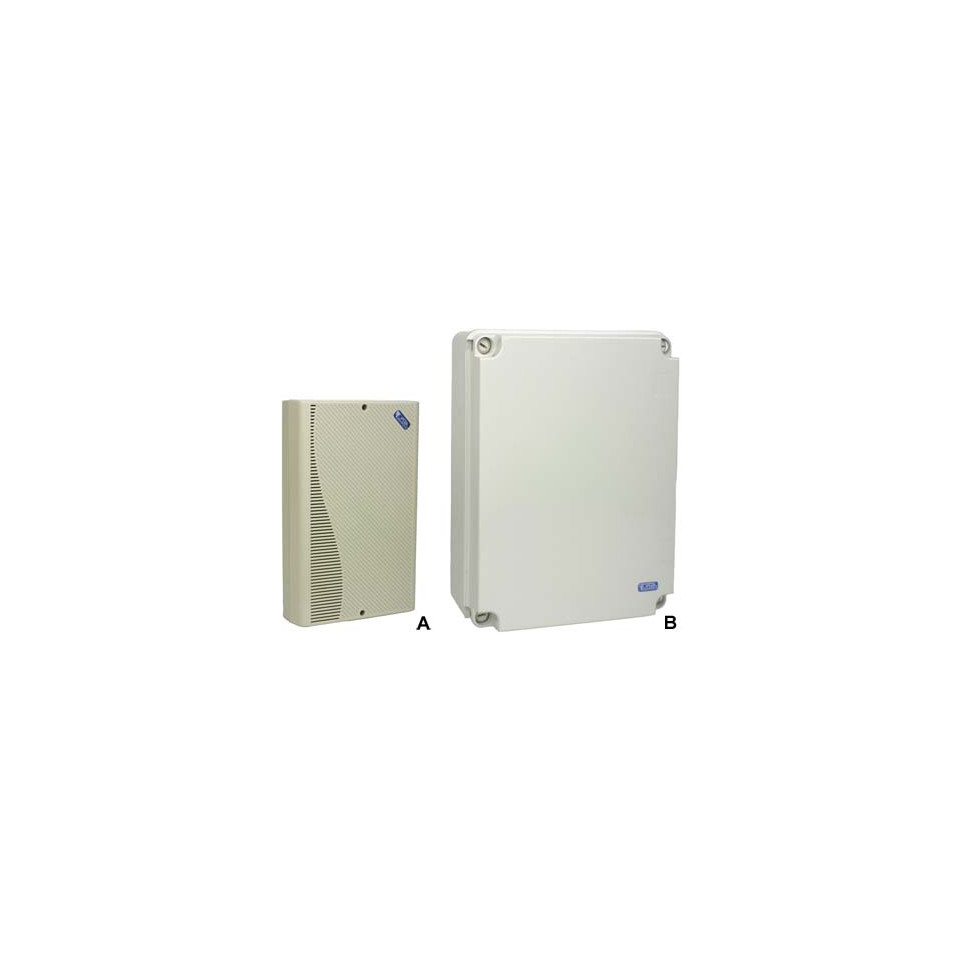

The OPERA management control unit is designed to manage the operation of one security door equipped with compatible Opera electric locks, electromagnetic devices, or strike plates. Ideal for access control and security automation in commercial or industrial settings.
Advantages
- Supports timed or interlocked management of a single motorized lock.
- Compatible with Opera’s SAFETY series magnets, QUADRA electrolocks, and OMNIA electric strikes.
- Offers emergency unlock and blockade controls for enhanced safety.
- Provides real-time status signals via magnetic sensors and relay outputs for monitoring lock states.
- The output power is limited to locks requiring less than 5A; verify compatibility with installed systems.[2][3]
Specifications
- Robust plastic enclosure; relay outputs (C./N.O./N.F.); connection ports for auxiliary commands via serial cables.[1][3]
- Suits harsh environments; meets industry standards for electronic door control units; engineered for reliability.[7]
- Main supply: supports input voltages of either 10-12 Vac / up to 65 VA or 12-14 Vdc / max. current draw of up to 3 A.
Lock supply: output relays handle up to a maximum load of 5 A (lock) and signal outputs up to 1 A (alarms/signals). - Differentiators include programmable timers, alarm reset buttons, emergency release function, interlock capability, state-indicator LED lights, and open collector alarm output for error reporting.[3][2]
How it works
The unit receives commands from access systems or manual controls (e.g., opening request, emergency), then powers the connected lock or strike plate accordingly. Status is monitored using built-in sensors and can be communicated externally using dedicated relay contacts and LEDs.[1][3][2]
