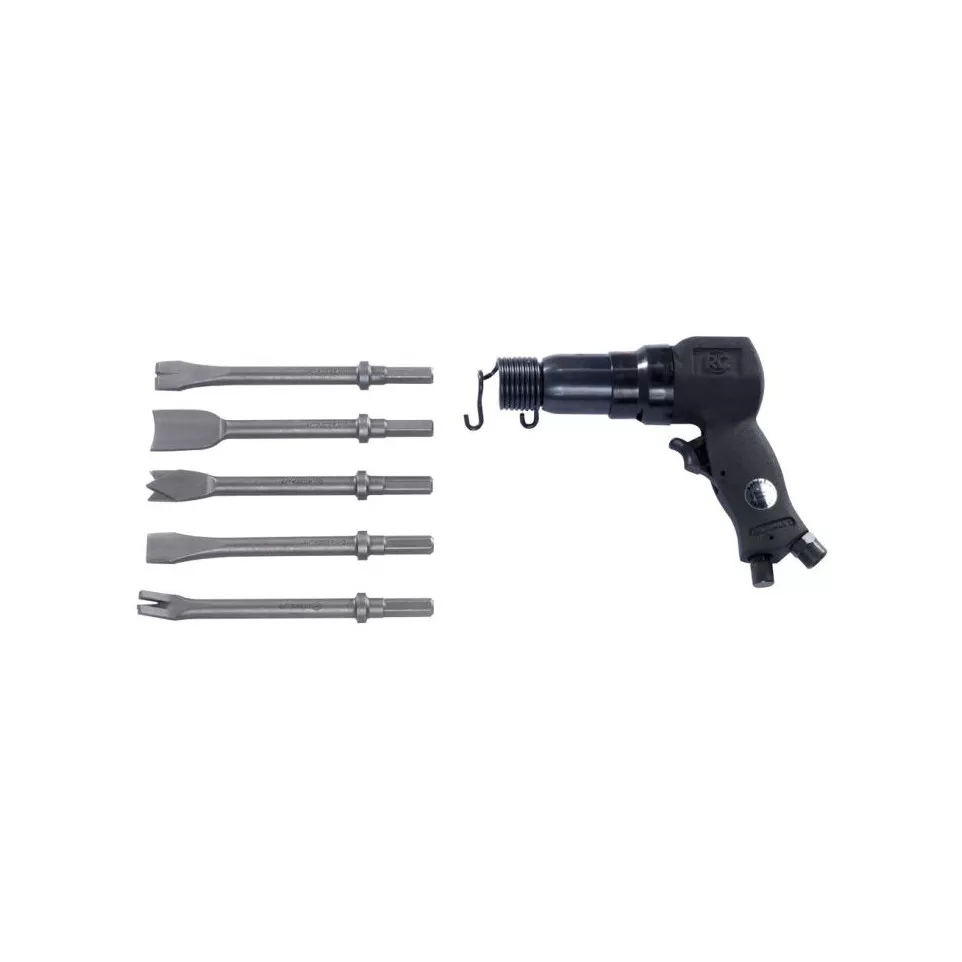

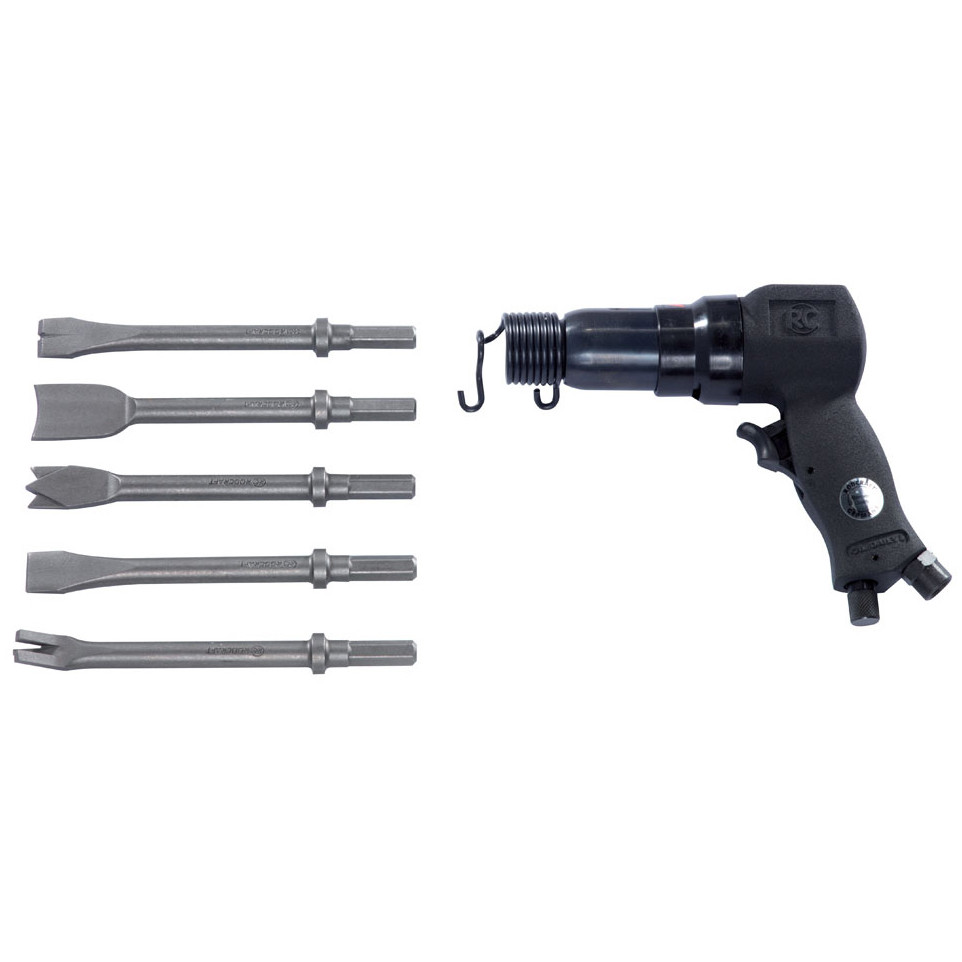

Rodcraft 5120 Pneumatic Chiseling Hammer per piece
€104.00
In stock
Product
The Rodcraft Pneumatic Chisel Hammer kit (Ref: 381170) is a versatile solution for demanding metalwork, bodywork, and mechanical applications. Supplied with multiple chisels and a robust tool case, it supports cutting, chiseling, and shaping tasks on steel and sheet metal.
Specifications
- Features a compact chisel hammer RC5100 with an 11 mm hexagonal shank
- Includes a RC70 spring retainer for secure chisel attachment
- Working pressure: pneumatic operation, air connection 1/4"
- Maximum air consumption: 400 l/min; minimum: 270 l/min
- Delivers up to 6 Joule adjustable impact force
- Delivers 3,000 blows per minute for efficient material removal
- Piston stroke: 60 mm; piston diameter: 19 mm
- Weight: approximately 1.5 kg
- Noise level: 94.8 dB
- Supplied chisels: universal, spot weld cutter, double blade sheet metal cutter, rivet cutter, curve cutter
- Delivered in a practical toolbox for easy transport and storage
Usage
Connect the RC5100 hammer to a compressed air supply via a standard 1/4" fitting. Choose the appropriate chisel for your application, secure it with the included RC70 spring retainer, and use the tool to cut, chisel, or shape metal. Adjust impact force as needed to match the task. The set is ideal for automotive, industrial, or workshop environments where rapid, controlled chiseling is required.
FAQ
-
What materials can the Rodcraft RC5100 chisel hammer work on?
It is designed for use on metals, especially steel and sheet metal, as well as for tasks such as cutting, chiseling, and shaping in automotive or industrial settings. -
What air compressor requirements are necessary?
The tool requires a 1/4" air connection and operates at an air consumption between 270 and 400 l/min. Ensure your compressor meets or exceeds these specifications. -
What chisels are included in the kit?
The kit contains a universal chisel, spot weld cutter, double blade sheet metal cutter, rivet cutter, and a curve cutter, each tailored for specific operational needs. -
Is the impact force adjustable?
Yes, the RC5100 offers adjustable impact force up to 6 Joules, allowing you to tailor performance to different materials and tasks. -
What is the weight and noise level of the tool?
The hammer weighs approximately 1.5 kg and produces a noise level of 94.8 dB, so hearing protection is recommended during use.
