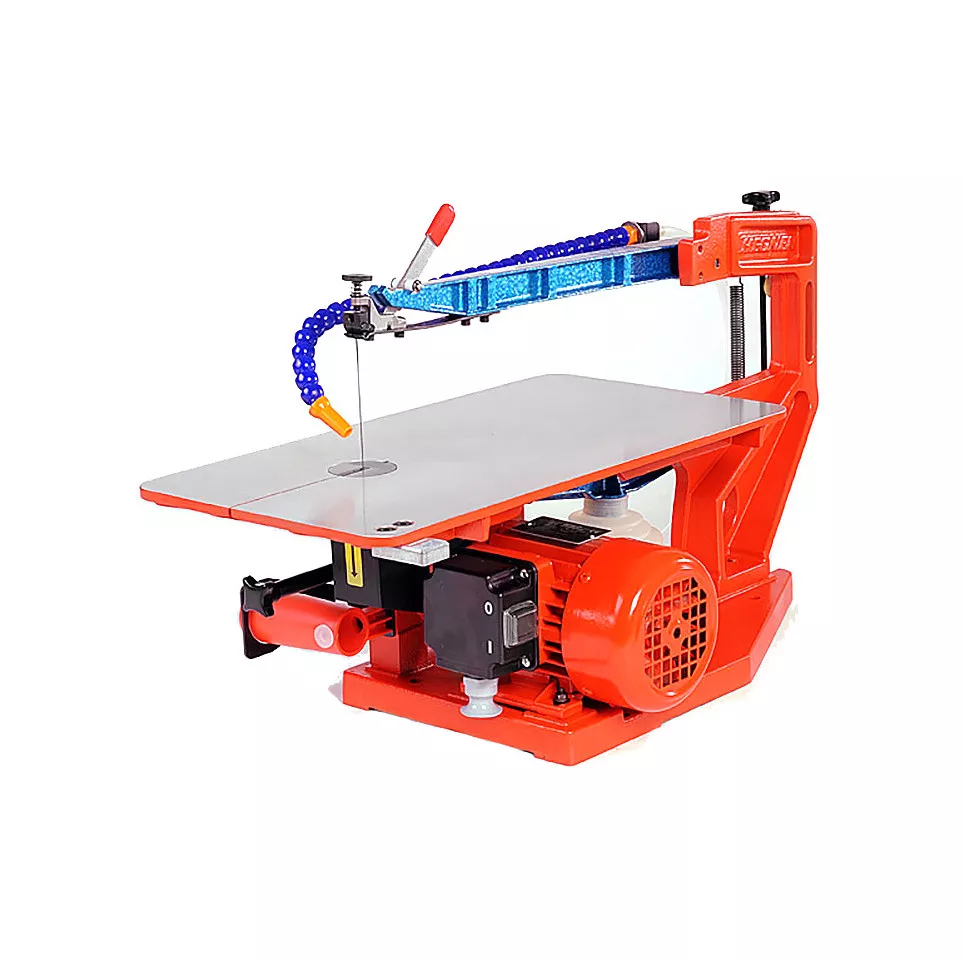

Hegner Multicut 2S Scroll Saw per piece

Product

The Hegner Multicut 2S scroll saw is designed for precision cutting in woodworking, model making, and fine metalwork. Built for continuous operation, it is suitable for professionals and dedicated enthusiasts demanding accuracy and versatility.

Specifications

• Constructed from grey cast iron for enhanced rigidity and reduced vibrations
• Equipped with a 230V, 100W asynchronous motor optimized for continuous use
• Rectified aluminum alloy table, tiltable to 45° (435 x 230 mm), for bevel and angled cuts
• Quick blade tensioning system and upper blade clamp for fast blade changes
• Accommodates standard 130 mm blades; includes upper and lower dust extraction ports (35 mm diameter)
• Throat depth: 460 mm; Maximum cutting thickness: 65 mm; Stroke length options: 19 or 12 mm
• Overall dimensions: 610 x 280 mm; Weight: 19 kg

Usage

Operate the Multicut 2S for detailed interior and exterior cutting by securing material on the stable worktable and guiding it through the reciprocating blade. Use the quick blade tensioning and upper clamp for rapid blade changes, ideal for switching between interior and exterior cuts. Connect a dust extraction system for a cleaner workspace during precise operations.

FAQ

1. What materials can the Multicut 2S cut, and at what maximum thickness?

   • It cuts softwood up to 65 mm, hardwood up to 50 mm, aluminum up to 15 mm, brass and silver up to 10 mm, semi-hard steel up to 6-8 mm, synthetic materials up to 40 mm, and foam up to 65 mm.

2. How does the blade changing system work?

   • The saw features rapid blade tensioning and an upper blade clamp, allowing you to quickly release and install standard 130 mm blades, including for interior cutouts.

3. Is the table adjustable for angled cuts?

   • Yes, the rectified aluminum table inclines up to 45°, enabling precise bevel and mitre cuts.

4. What accessories are included with the Multicut 2S?

   • The package includes 2 blade clamps, a tightening key, a round plastic table insert, a special clamp for interior cuts, 2 replacement plastic washers for the tension lever, and an assortment card with 76 blades.

5. Does the saw have dust extraction capability?

   • Yes, it features central dust extraction ports (35 mm) for both upper and lower collection, helping maintain visibility and cleanliness.
