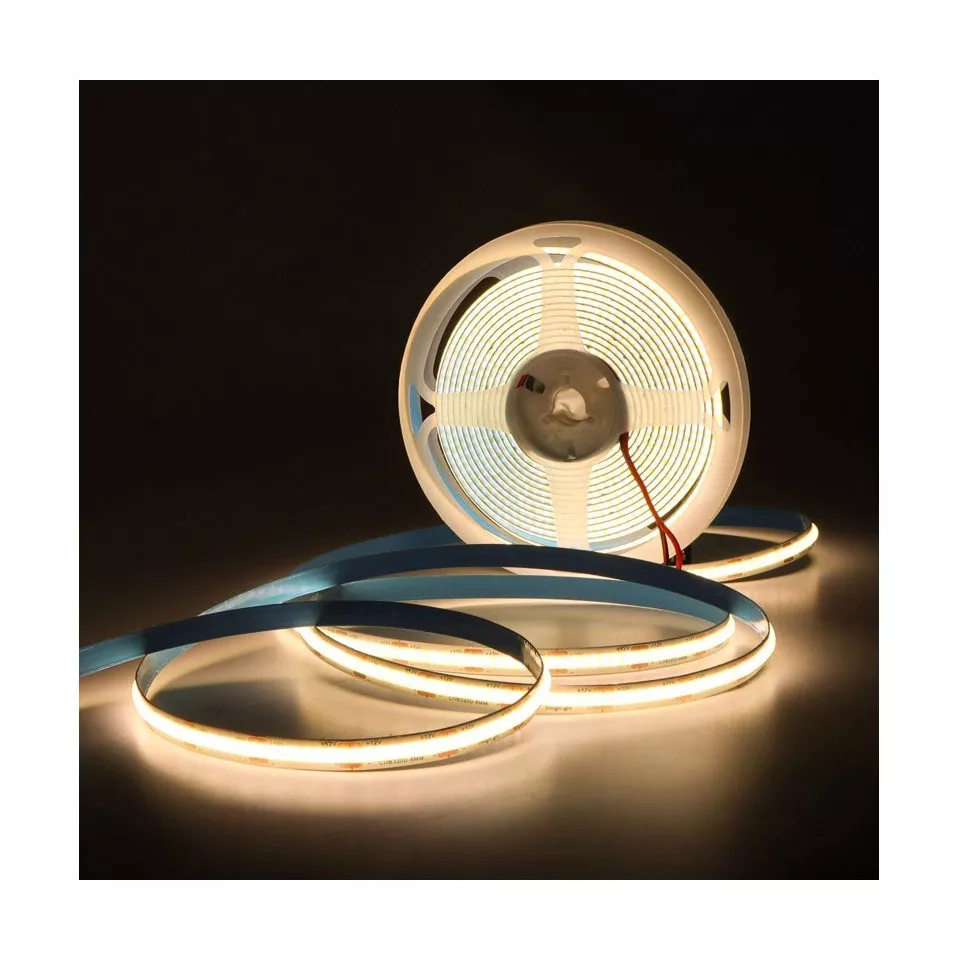

LED COB SOFT Strip 5mx8mm 12V Warm White 3000K 6.4W/m 680lm/m IP20 5m

Product

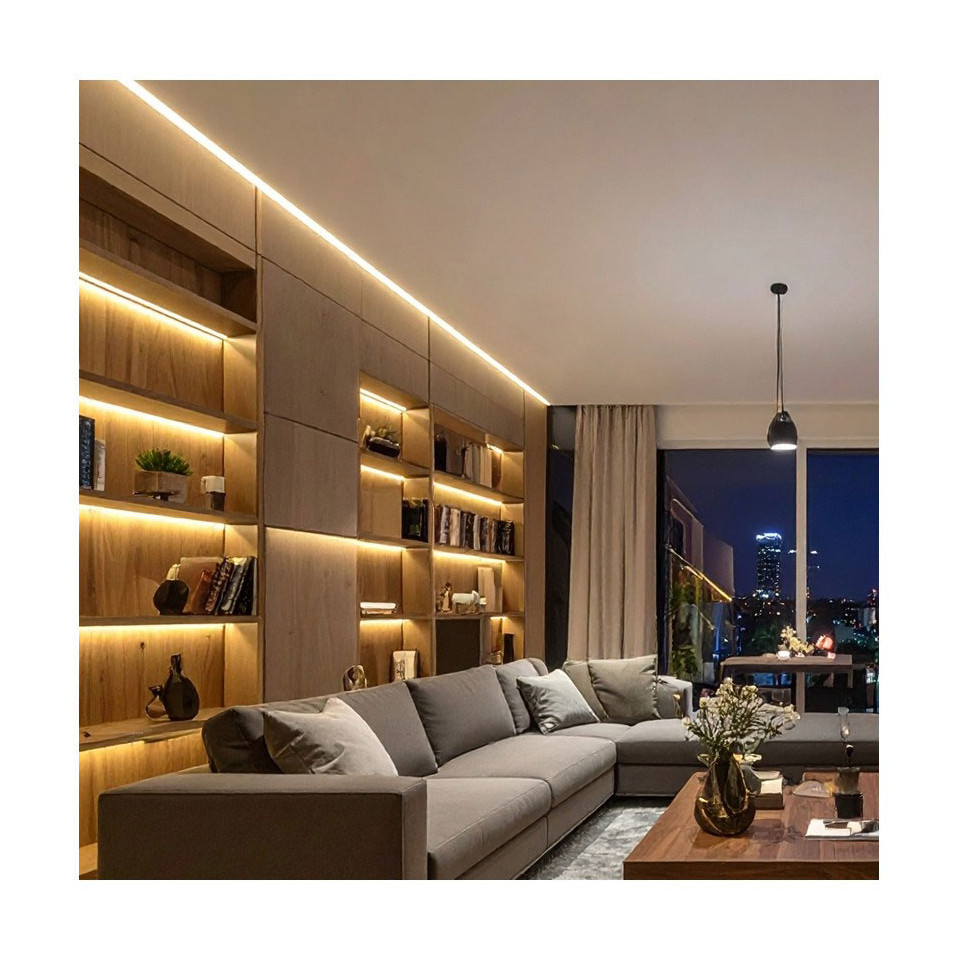

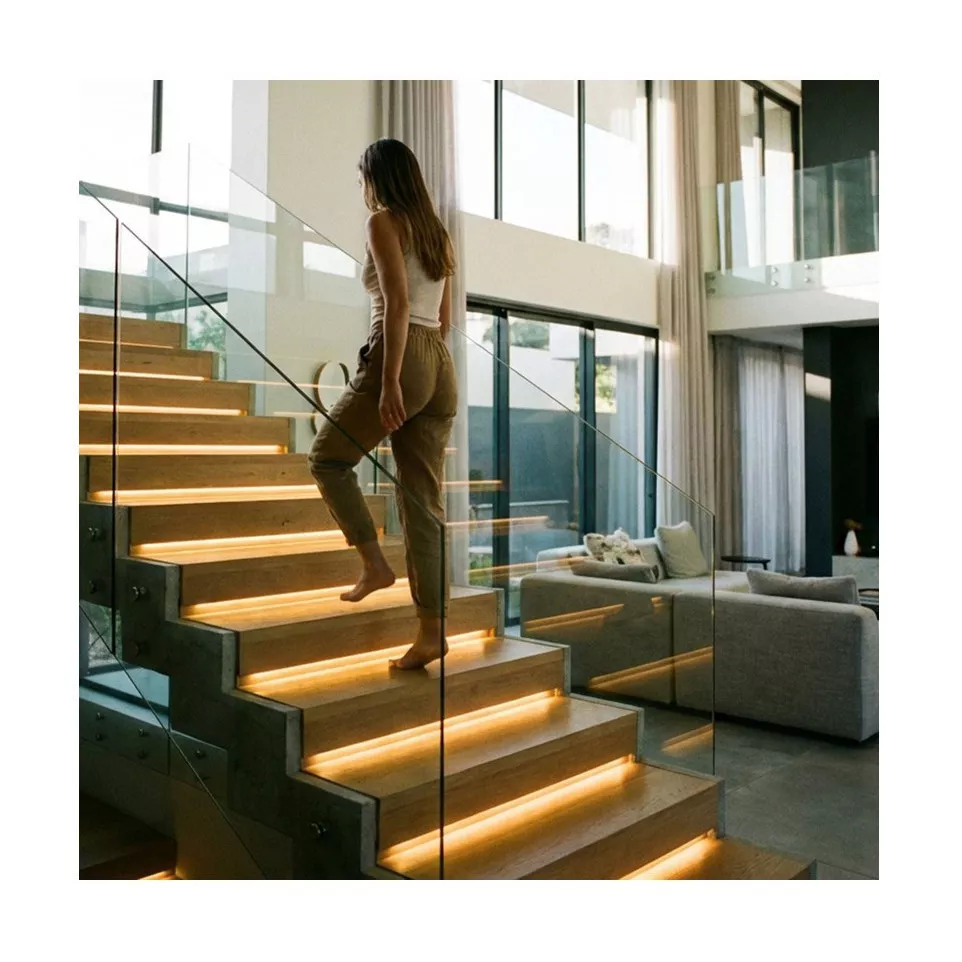

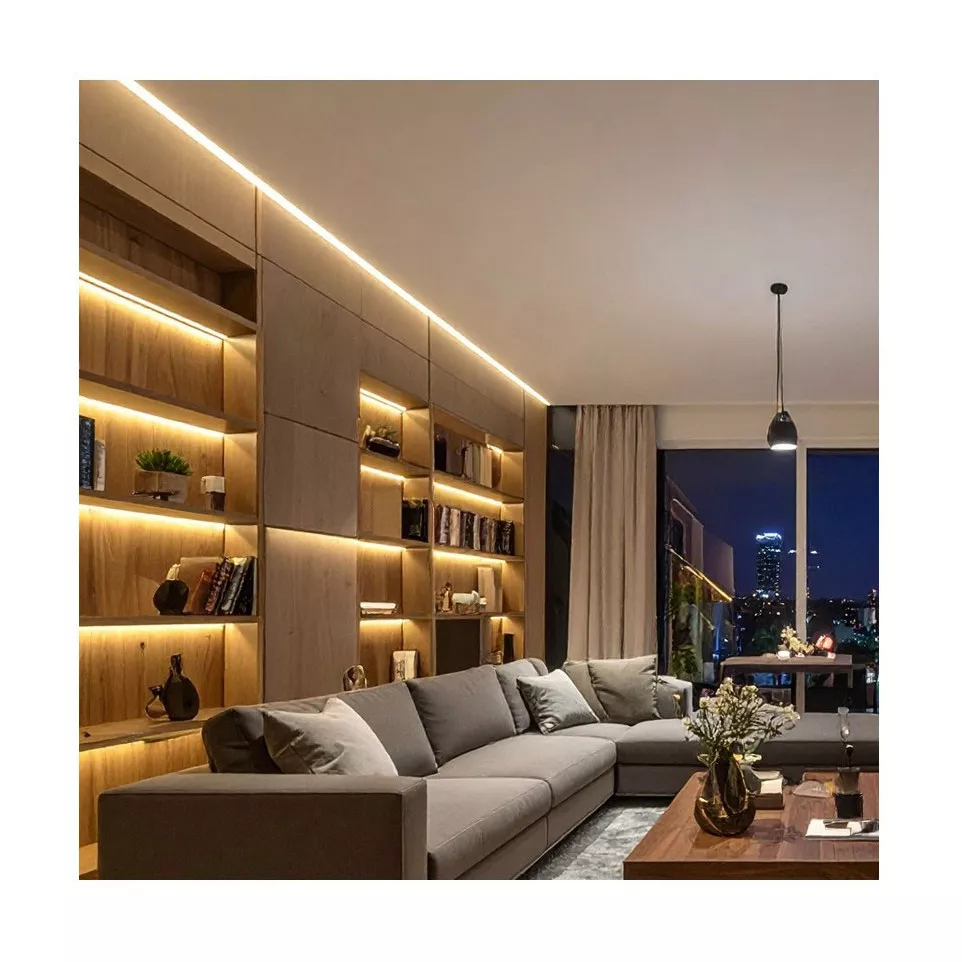

The LED COB Soft Strip delivers a seamless, uniform light line across 5 meters at 8mm wide, ideal for accent lighting, under-cabinet installations, and architectural detail work.

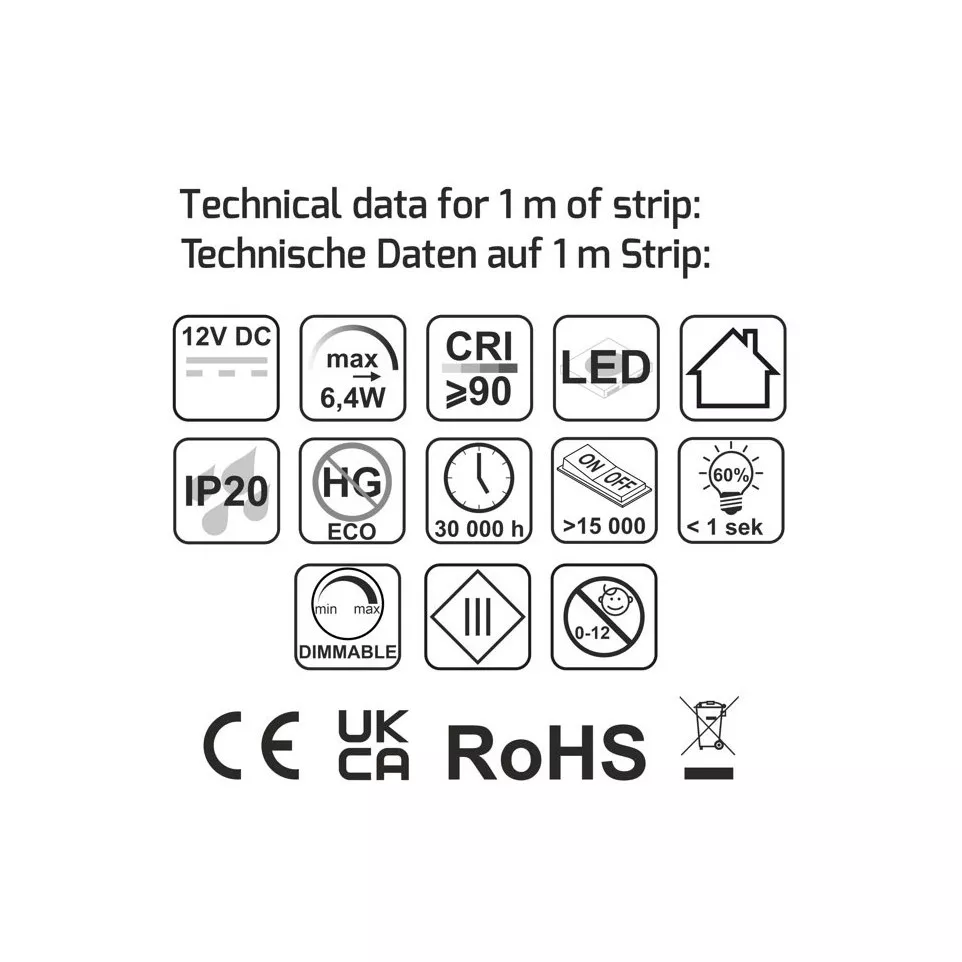

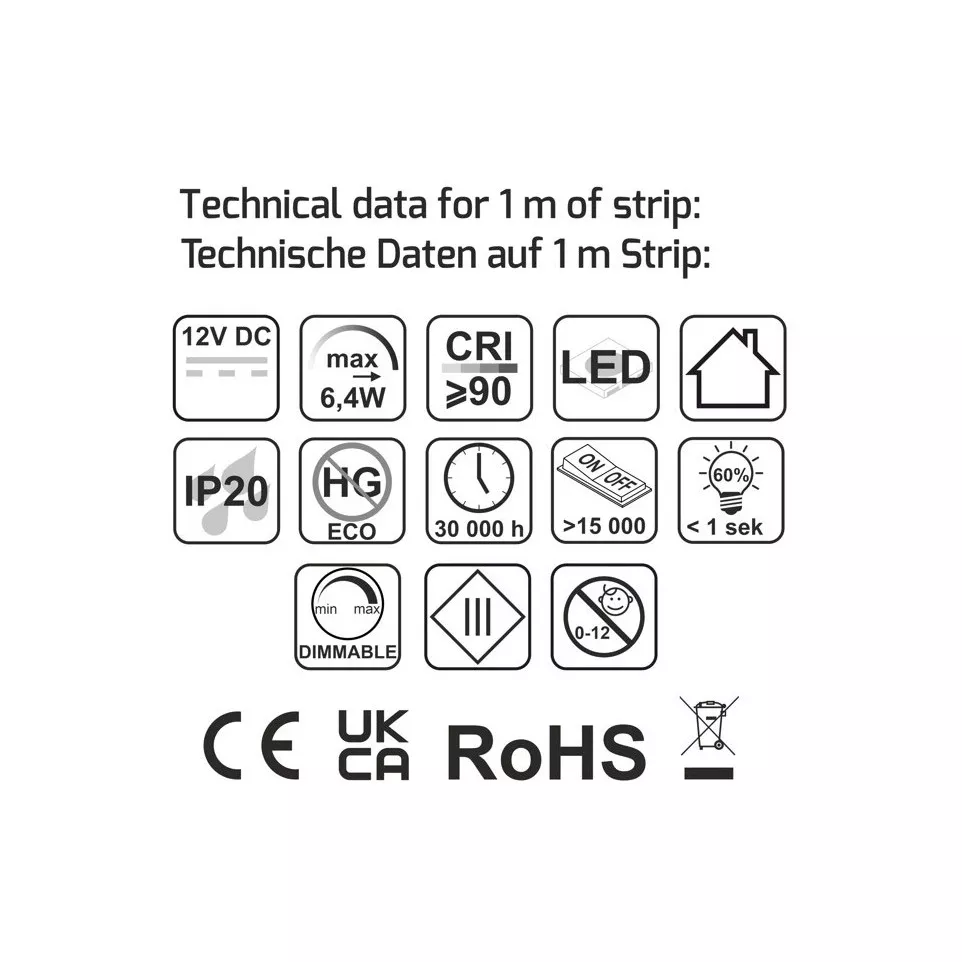

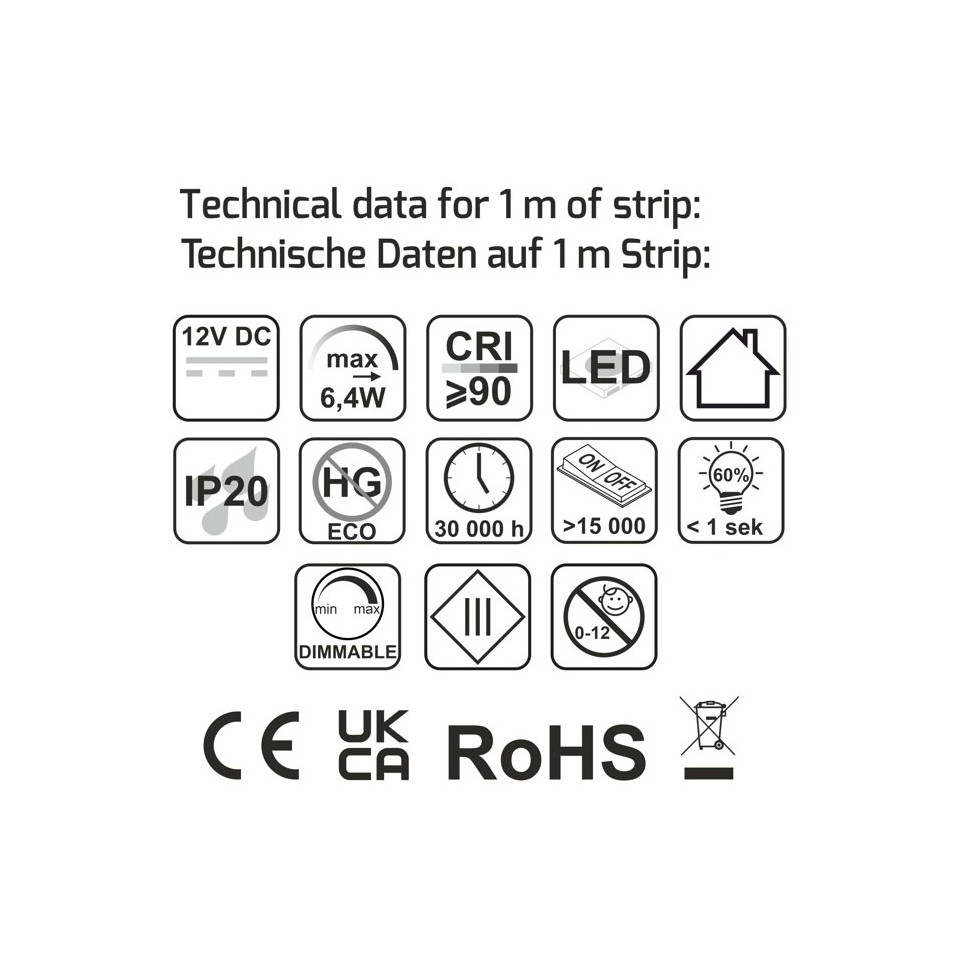

Specifications

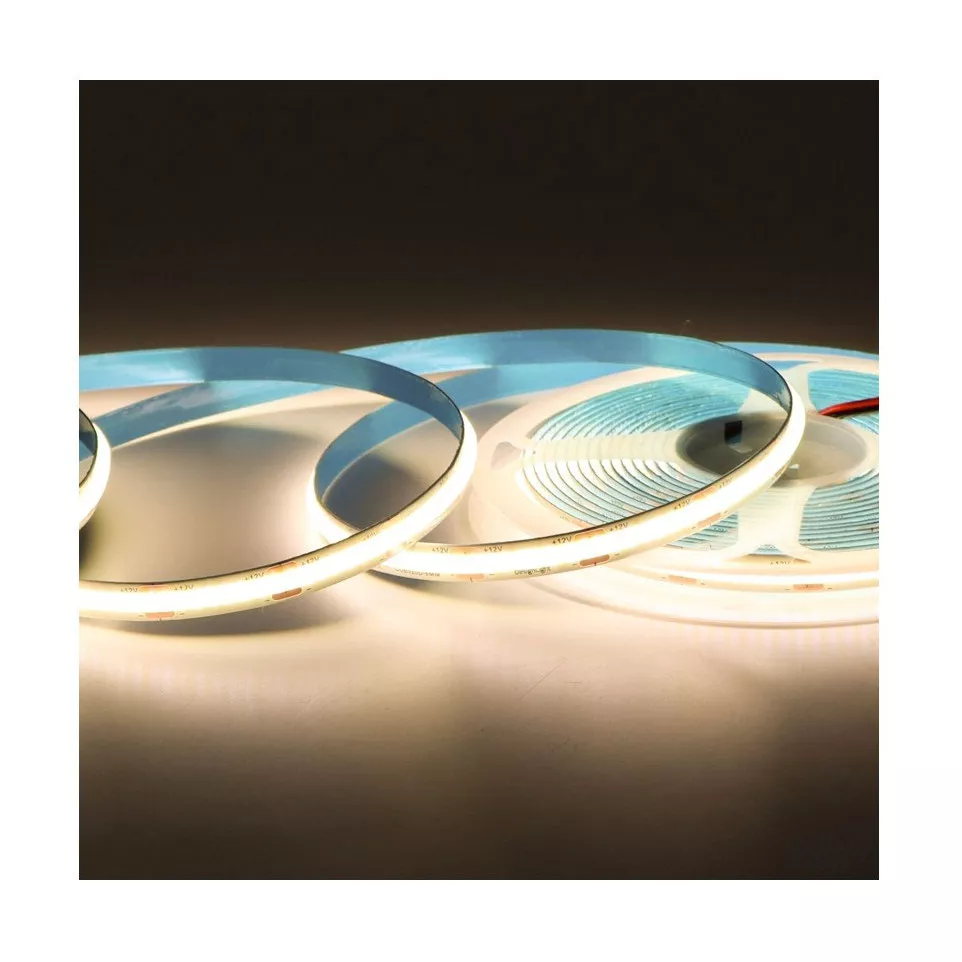

• COB (Chip on Board) technology producing a continuous light line with no visible individual diodes
• 12V DC power supply, 6.4W per meter, 680 lumens per meter, 3000K warm white color temperature

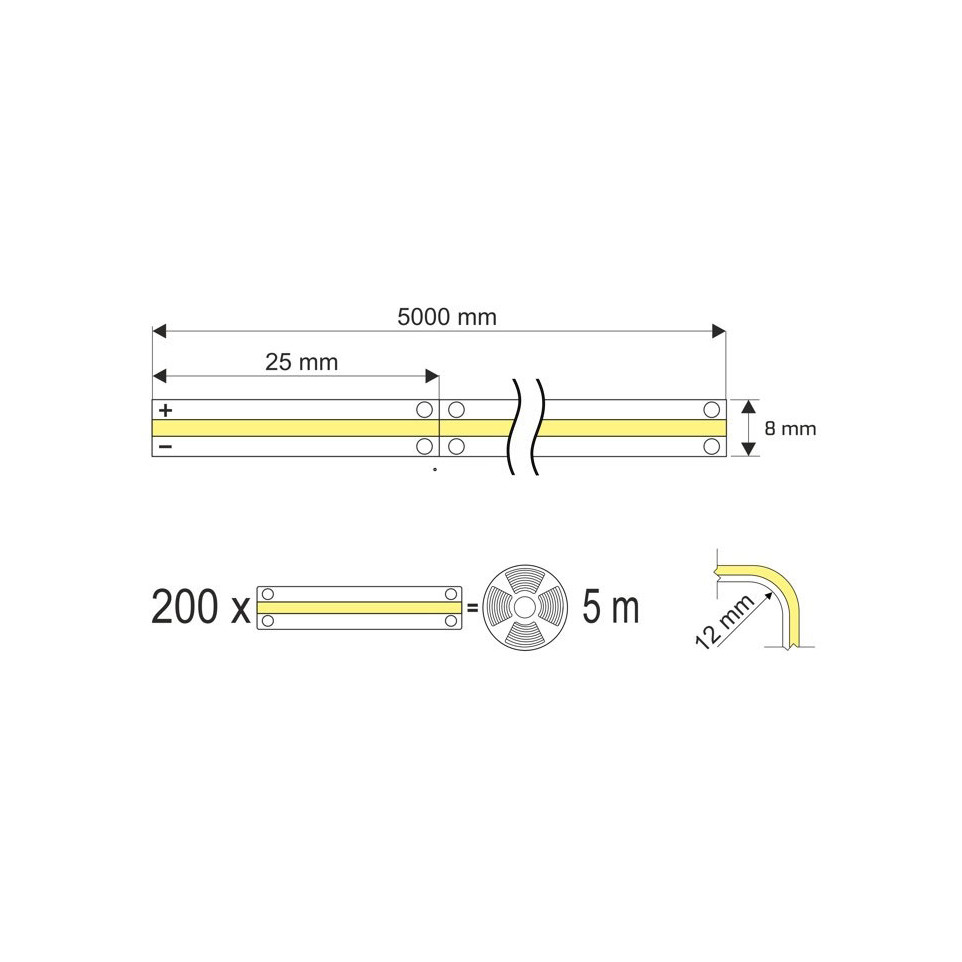

• 8mm strip width, 5 meter total length
• IP20 protection rating, suitable for dry indoor environments

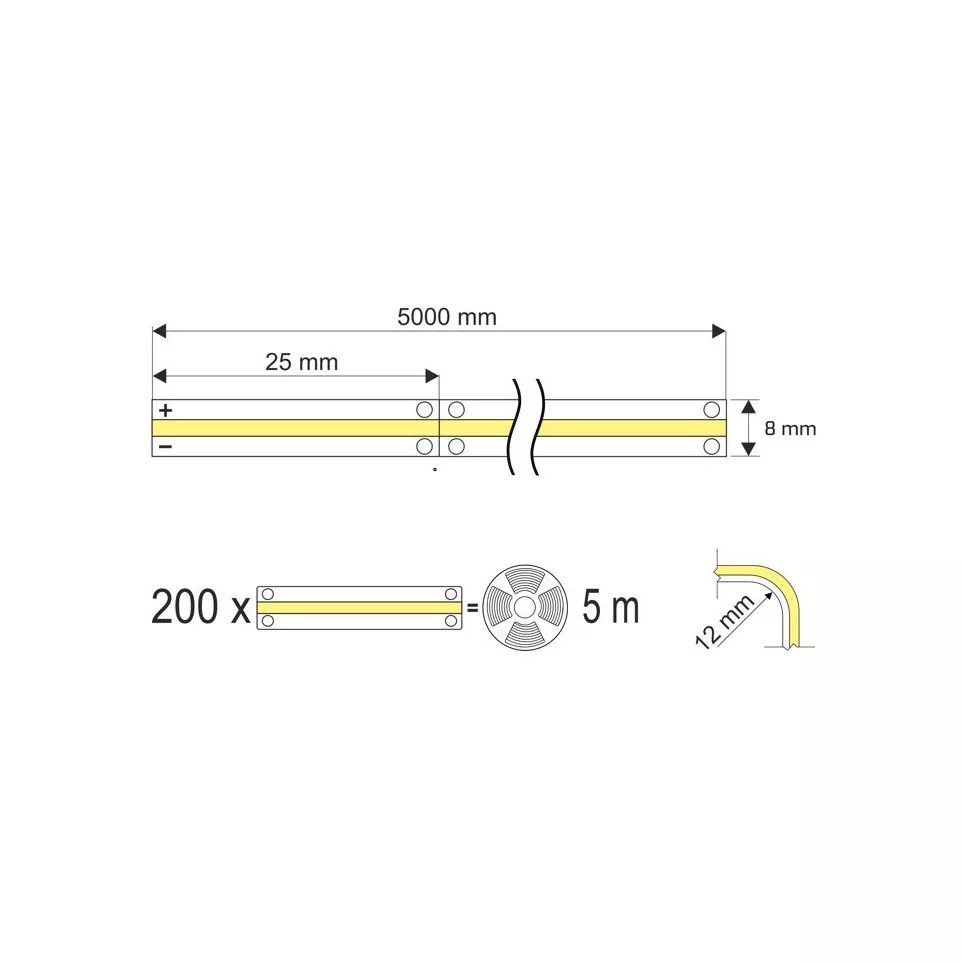

• Cuttable every 25mm at marked intervals for flexible length customization
• Pre-wired on both sides with mini AMP connector for straightforward installation
• Self-adhesive backing for easy surface mounting

Usage

Peel the self-adhesive backing and apply the strip to a clean, dry surface. Connect via the pre-fitted mini AMP connector to a compatible 12V DC power supply. Cut at every 25mm marked point to achieve the exact length required for your installation.

FAQ

1. What is the difference between COB and SMD LED strips? COB technology integrates multiple chips directly onto a single board, producing a uniform glow without visible dots, lower energy consumption, and a longer operational lifespan compared to standard SMD strips.

2. Can this strip be cut to a custom length? Yes, the strip can be cut every 25mm at the designated marked points, allowing precise length adjustment for any installation.

3. What power supply is required? This strip requires a 12V DC power supply. Calculate the total wattage needed based on 6.4W per meter multiplied by the length used.

4. Is this strip suitable for bathroom or outdoor use? No. With an IP20 protection rating, this strip is designed for dry indoor environments only and should not be exposed to moisture or outdoor conditions.

5. How is the strip connected? The strip comes pre-wired on both sides with a mini AMP connector, simplifying connection to a compatible 12V driver or controller without additional soldering.
