Product

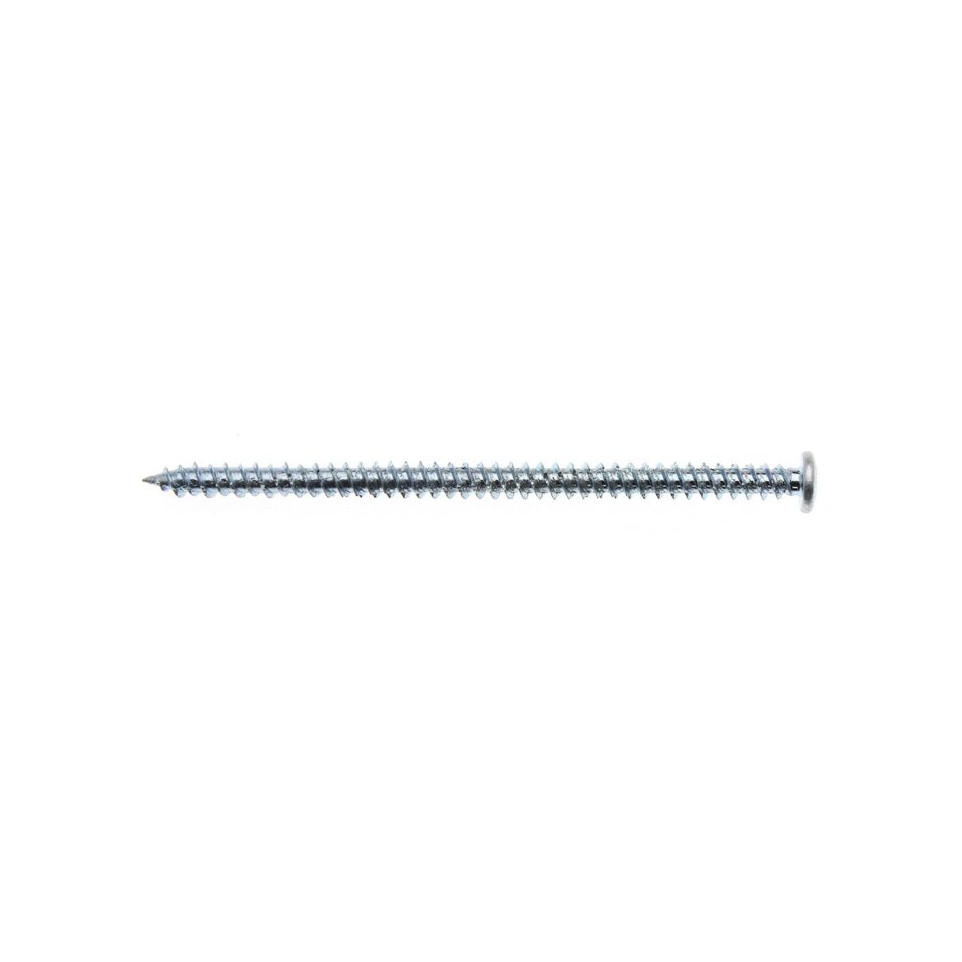

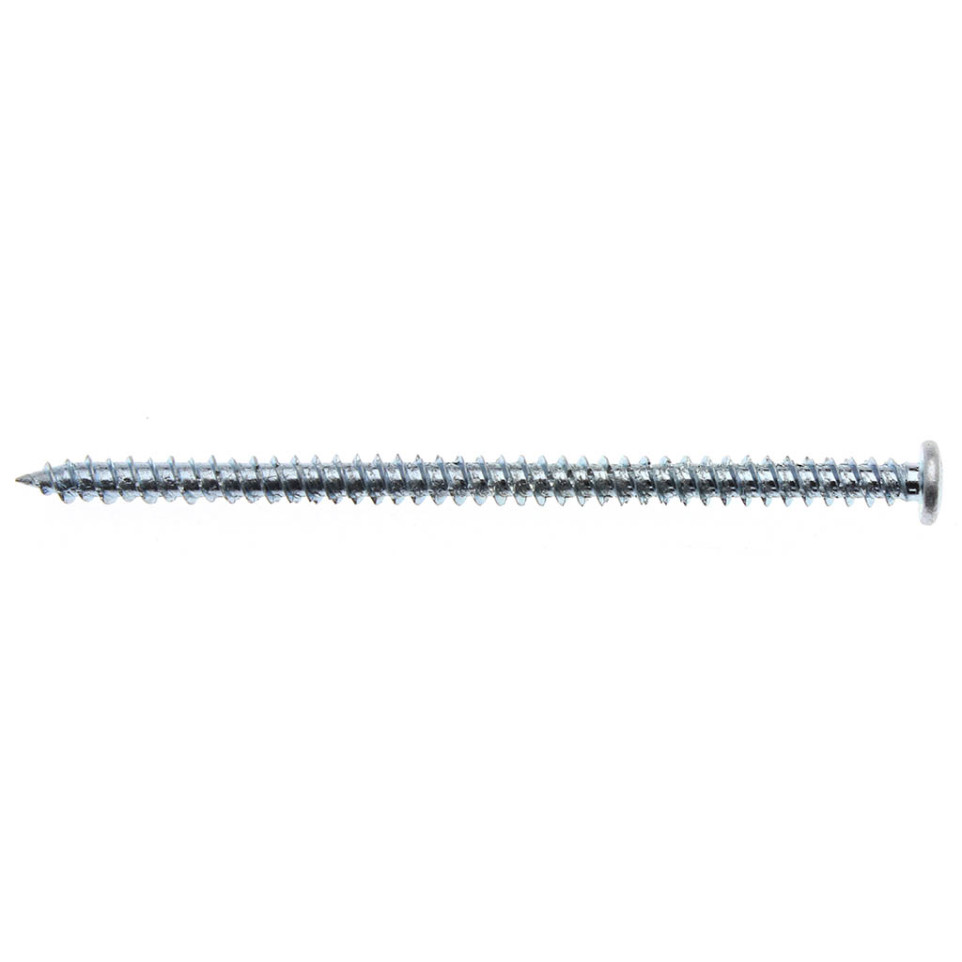

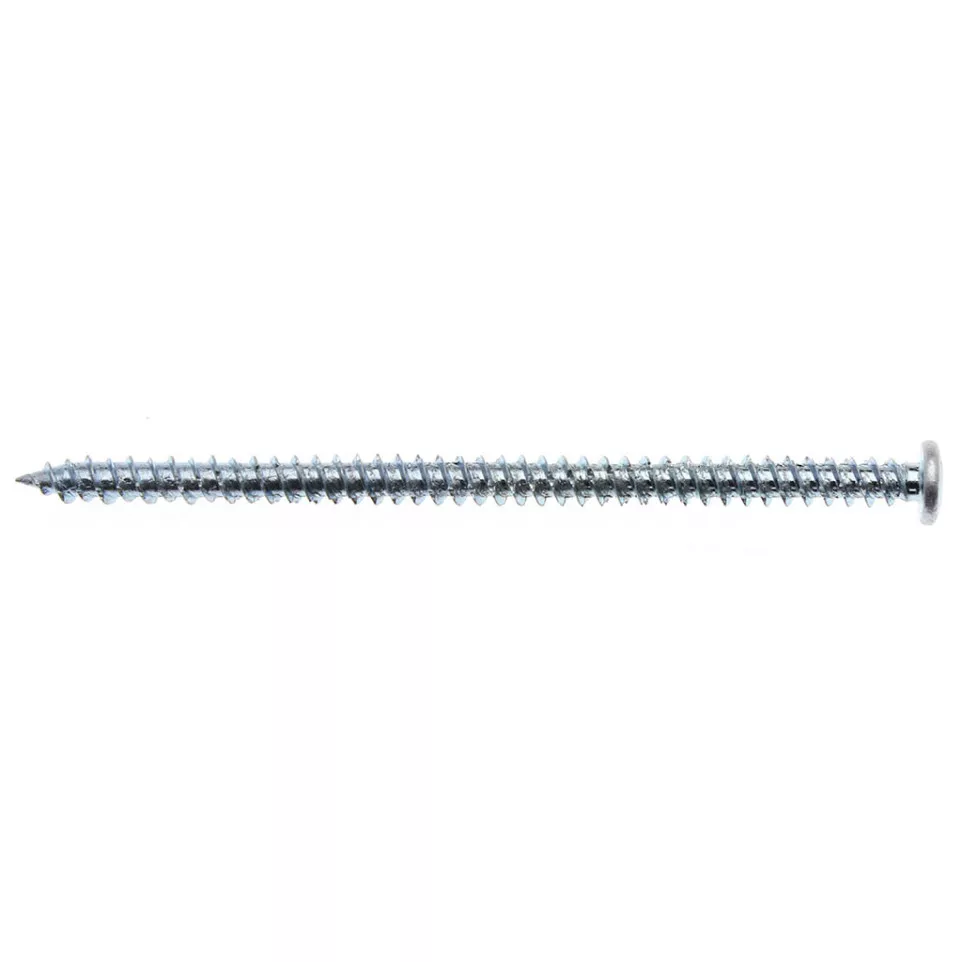

TURBO TX 30 mounting screws with rounded head are specialized fasteners designed for direct frame installation without anchors. These Ø7.5x212mm screws come in a box of 100 pieces, ideal for professional window and door frame mounting applications.
Specifications
- Made from high-quality zinc-coated steel for superior corrosion resistance
- Features a TORX TX30 drive system for enhanced torque transfer and reduced cam-out
- Rounded head design with 11.5mm diameter for optimal pressure distribution
- Requires pre-drilling with a 6mm SDS drill bit for proper installation
- 212mm length provides secure anchoring in various wall materials
Usage
Install directly into support materials after pre-drilling a 6mm hole. The rounded head sits properly on the frame surface without damaging profiles, distributing pressure evenly while providing a clean, finished appearance. Use with SDS drill bits for optimal results.
FAQ
-
What are the advantages of the rounded head design? The rounded head provides a clean, finished appearance, distributes pressure more evenly across the surface, and prevents the screw from sinking into the material, protecting the frame profile from damage.
-
Do I need to use wall plugs with these screws? No, these are designed for direct installation without wall plugs or anchors. Simply pre-drill a 6mm hole and drive the screw directly into the support material.
-
What type of drill bit should I use? SDS-type drill bits are recommended for optimal performance when pre-drilling the 6mm holes required for these screws.
-
What materials can these screws be used with? These screws are primarily designed for mounting window and door frames to various building materials including concrete, brick, and other solid substrates.
-
Why is the TORX drive system beneficial? The TORX (TX30) drive system provides better torque transfer, reduces the risk of cam-out (slipping), and allows for higher torque application during installation compared to standard drive types.
