Usage

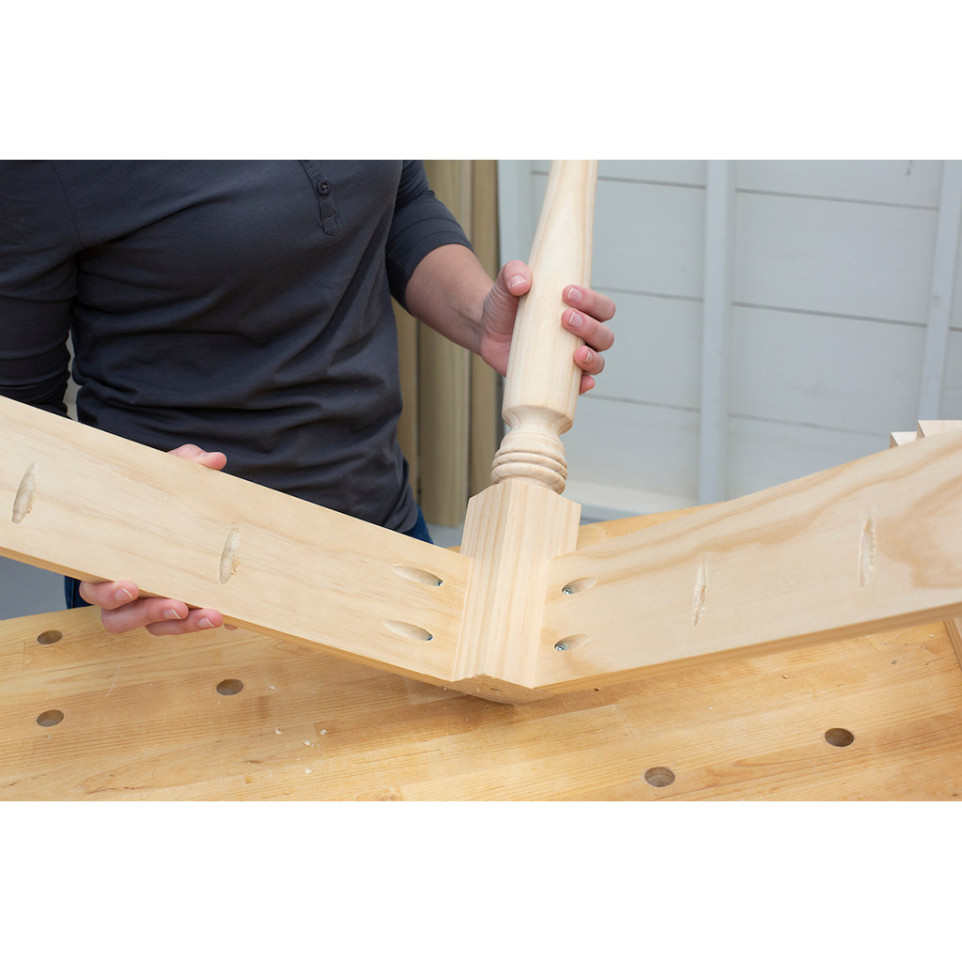

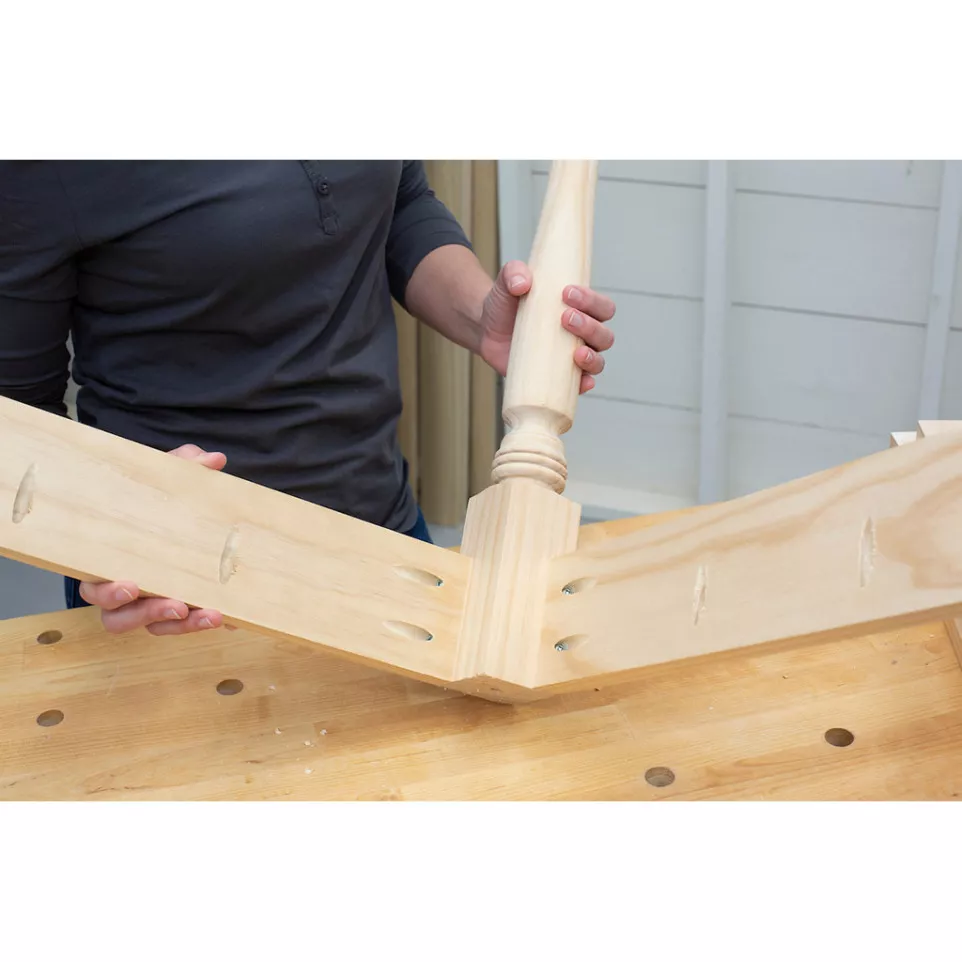

The Gabarit 320 Kreg Pocket-Hole KPHJ320-INT is designed for creating strong pocket-hole joints in wood, suitable for building new projects or making repairs in materials from 13 mm to 38 mm thick.
Advantages
- Adjustable drill guides accommodate a wide range of material thicknesses, providing flexibility for various woodworking tasks.
- Tool-free setup with a material-thickness gauge, easy-set drill bit, and positive stops speeds up preparation and reduces errors.
- Impact-resistant glass fiber reinforced nylon body and hardened steel drill guides ensure long-term durability under regular use.

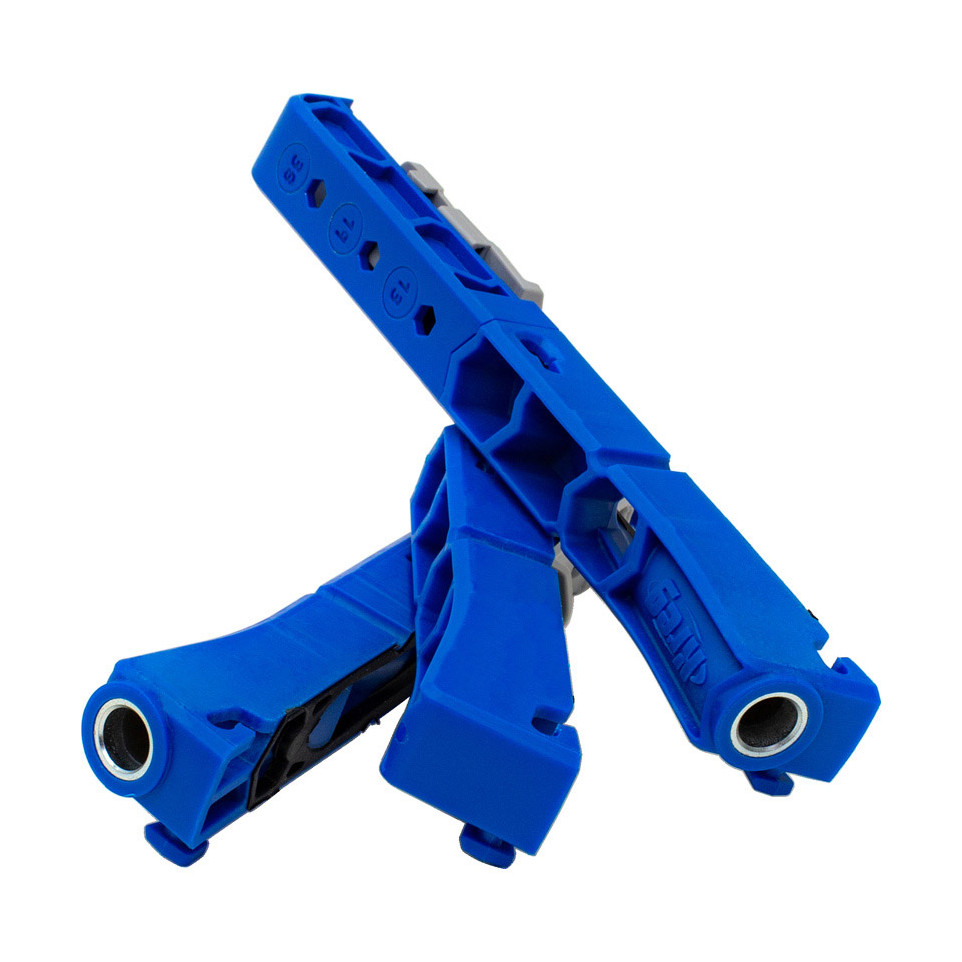

- Modular design allows variable hole spacing; twist-apart guides enable work in confined or irregular spaces.

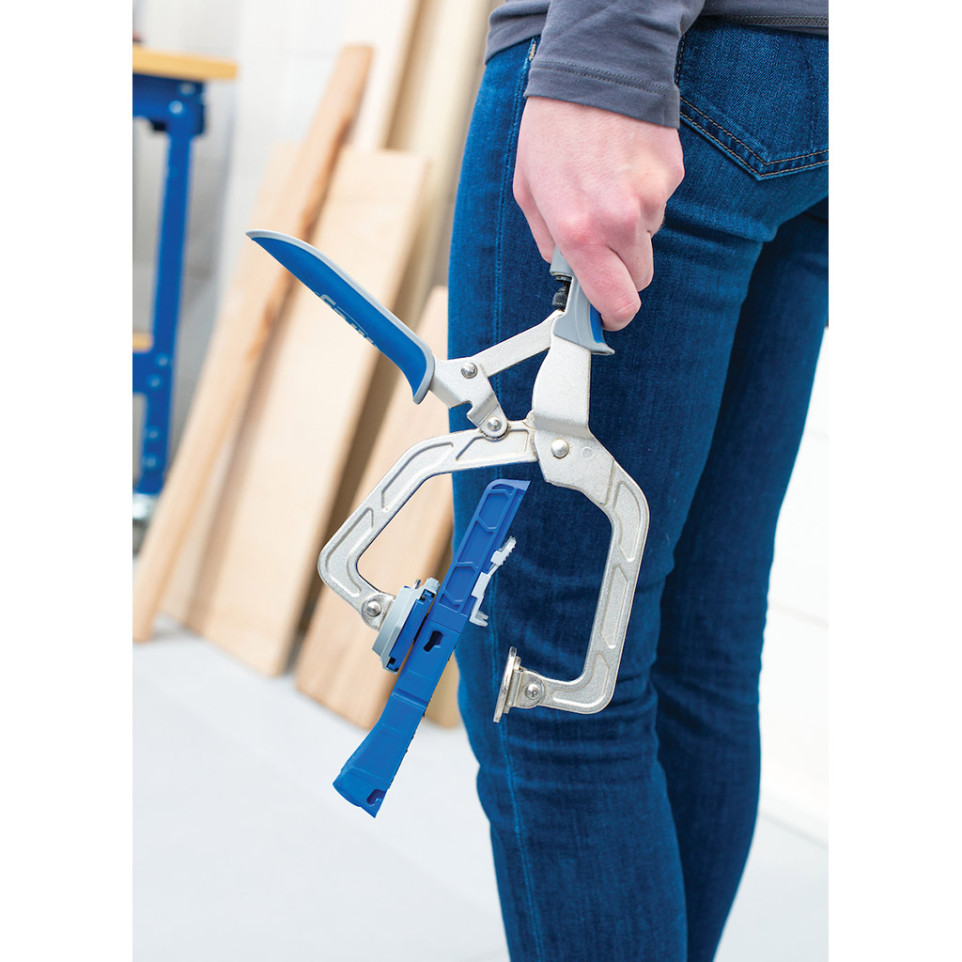

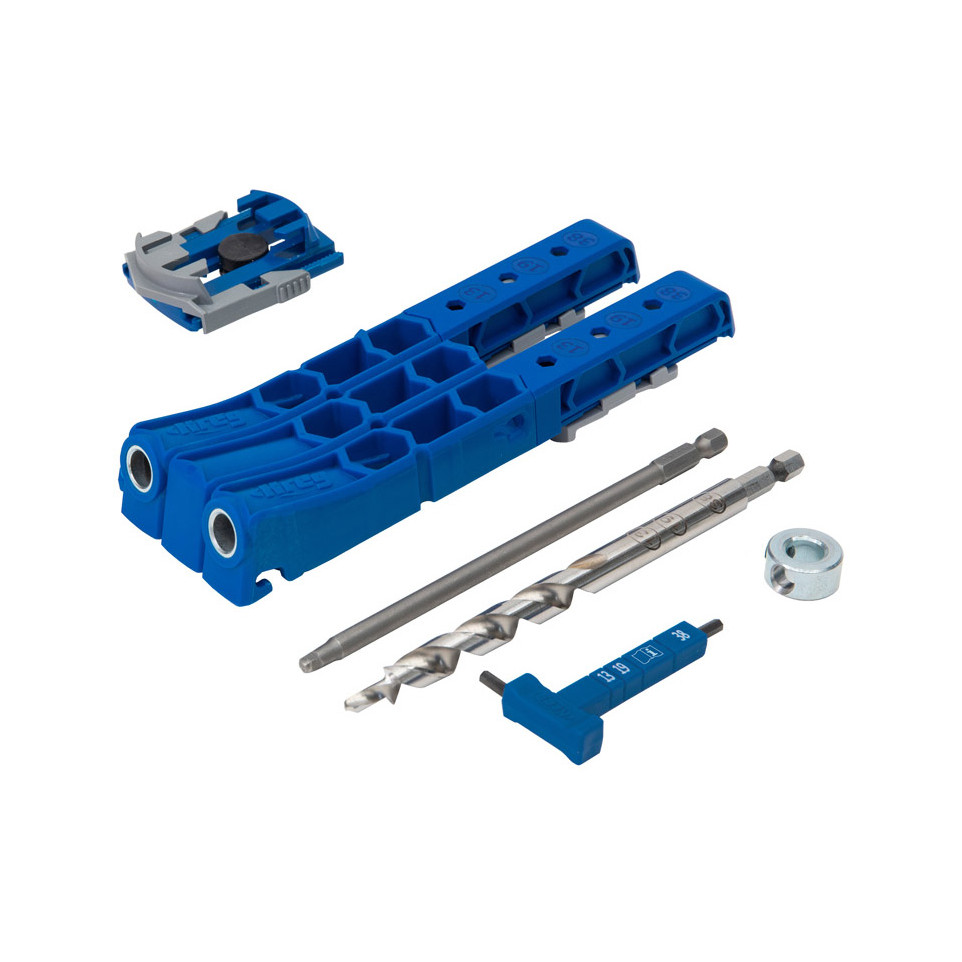

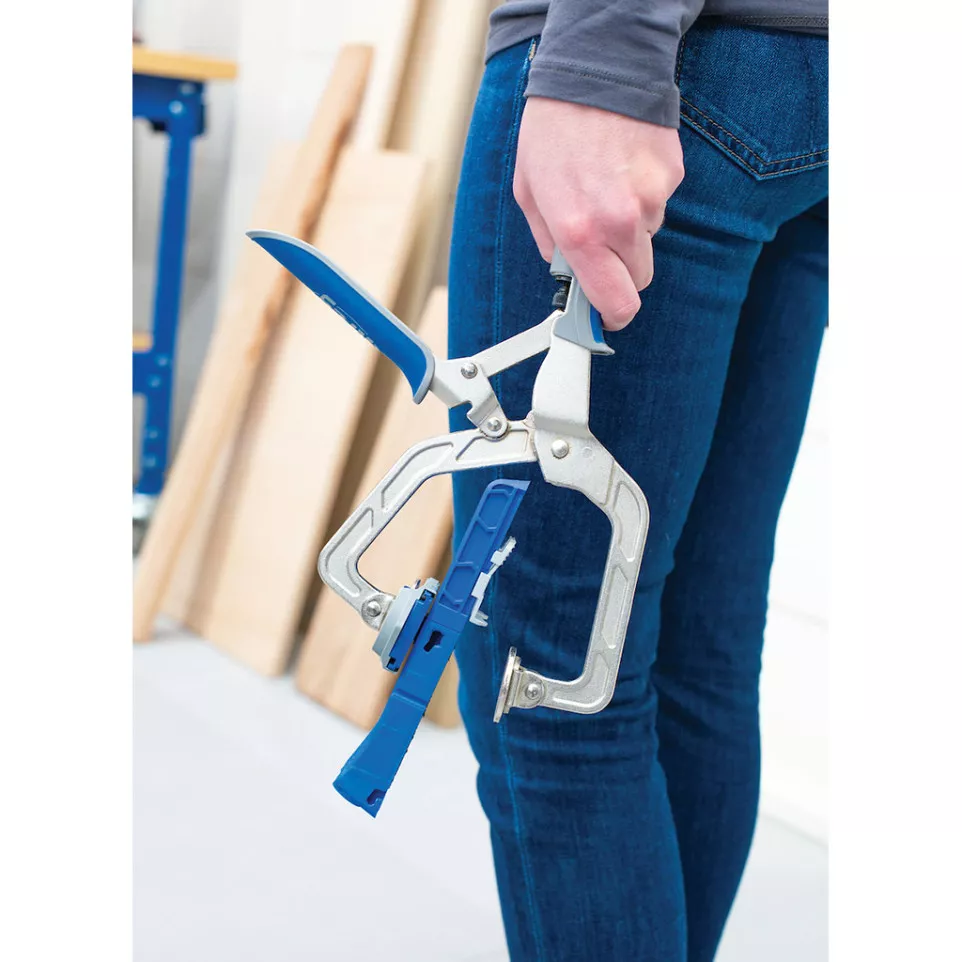

- The compact case organizes all components and accessories, making storage and transport convenient; the clamp adapter improves stability when drilling.
Specifications

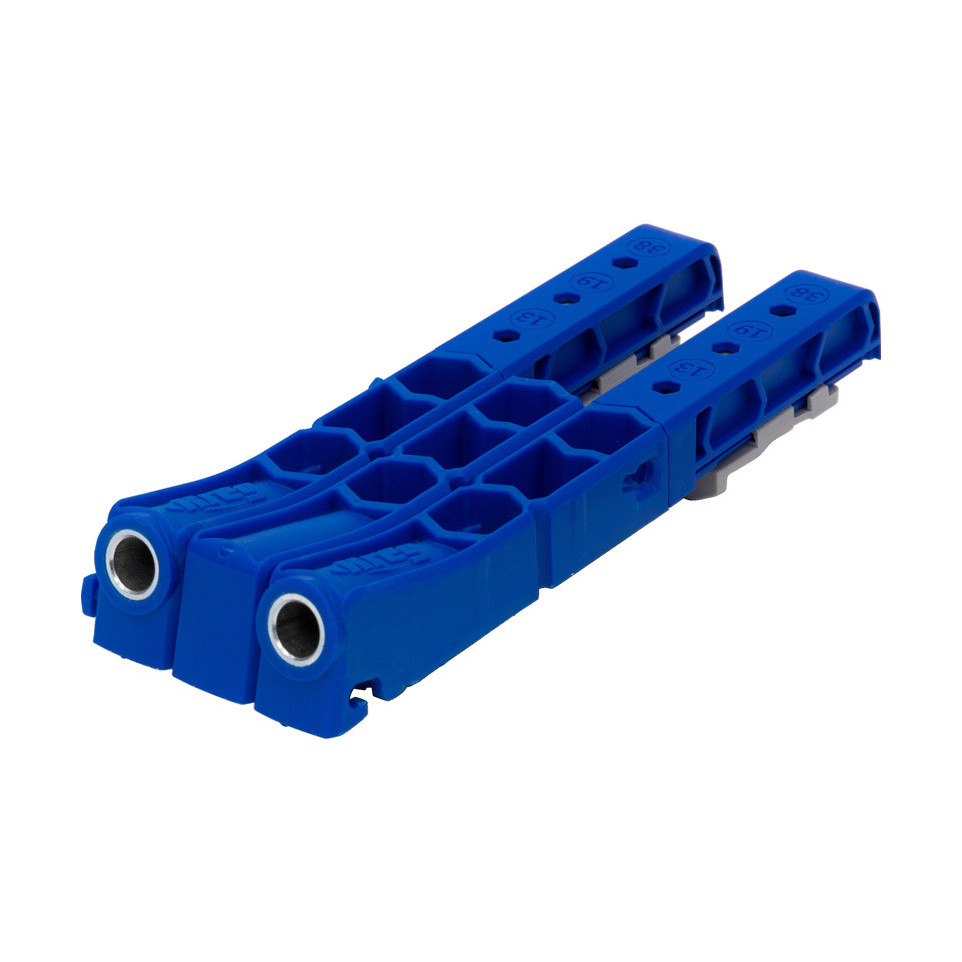

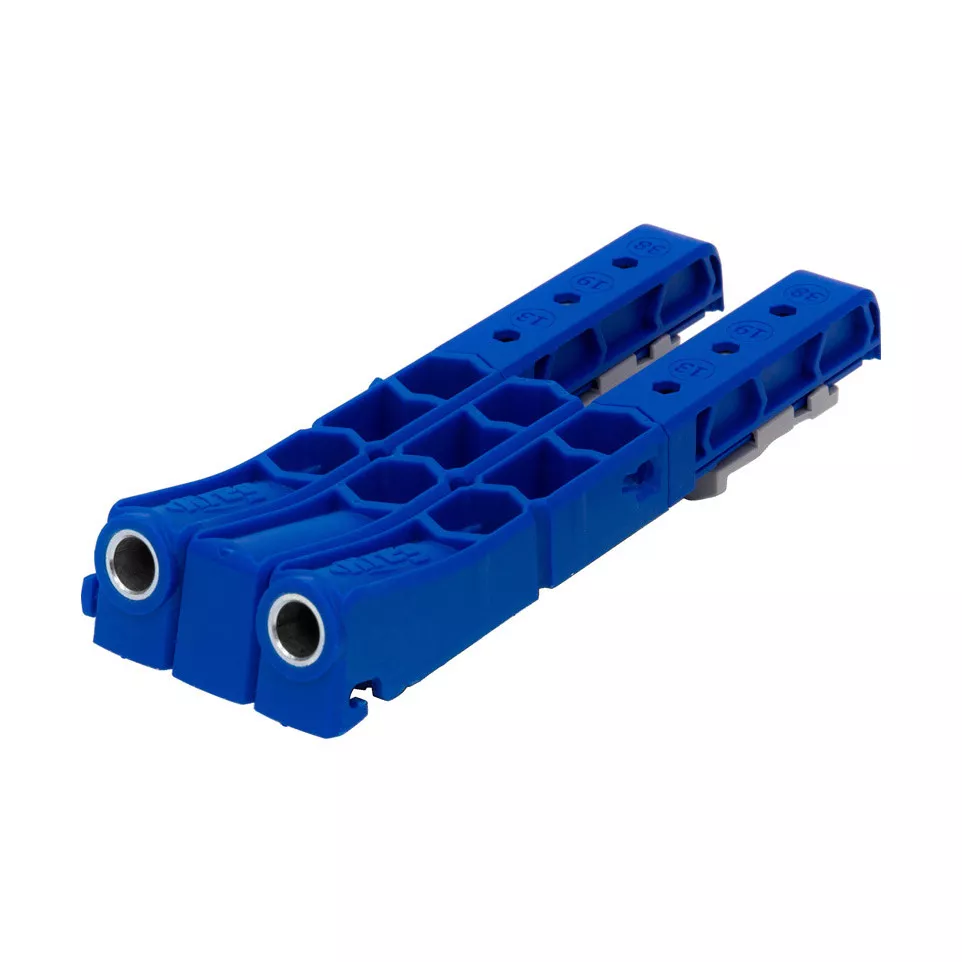

- The jig features a glass fiber reinforced nylon housing with two hardened steel drill guides spaced at either 19 mm or 38 mm (unlimited if separated).
- The construction materials deliver high impact resistance; designed to be used repeatedly without loss of accuracy or performance.
- Suits wood thicknesses from 13 mm to 38 mm (approximately ½" to 1½"); product weight: approx. 0.6 kg; compatible with standard clamps via an included adapter.
- Preset thickness stops at 13, 19, or 38 mm improve repeatability; engraved markings on the bit and stop collar plus viewing window facilitate correct setup.
How it works

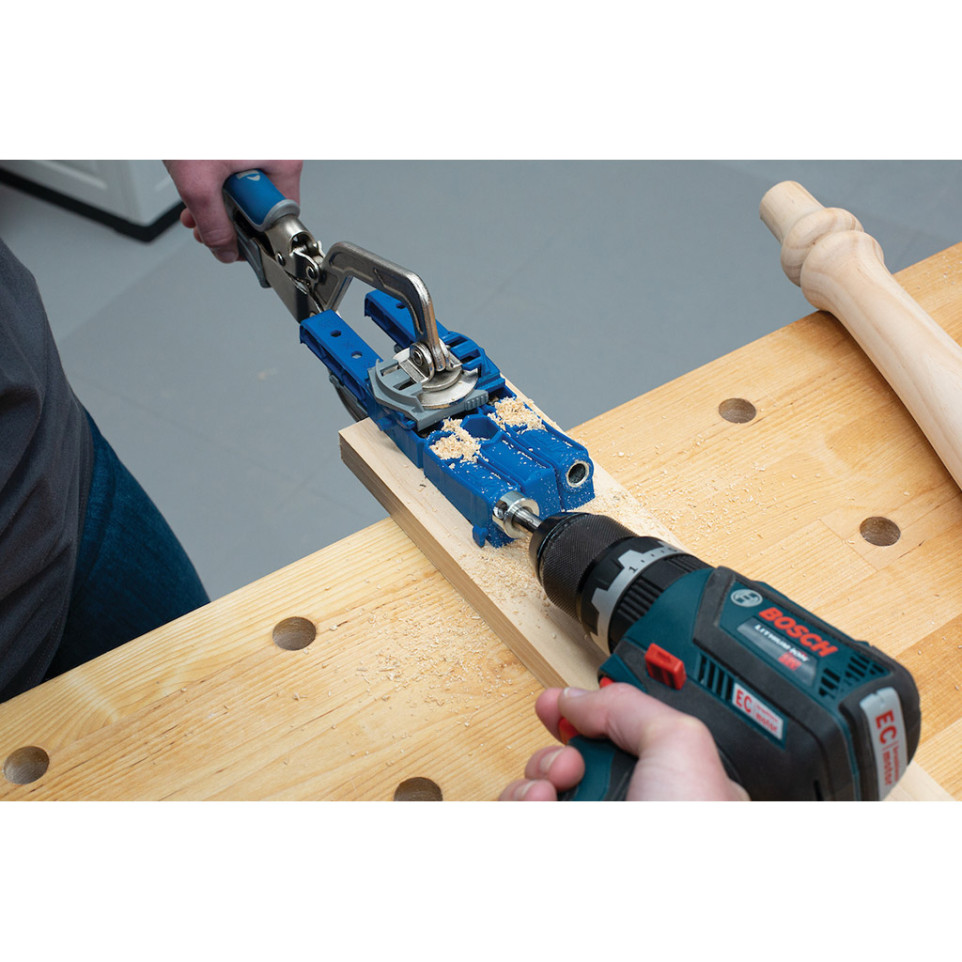

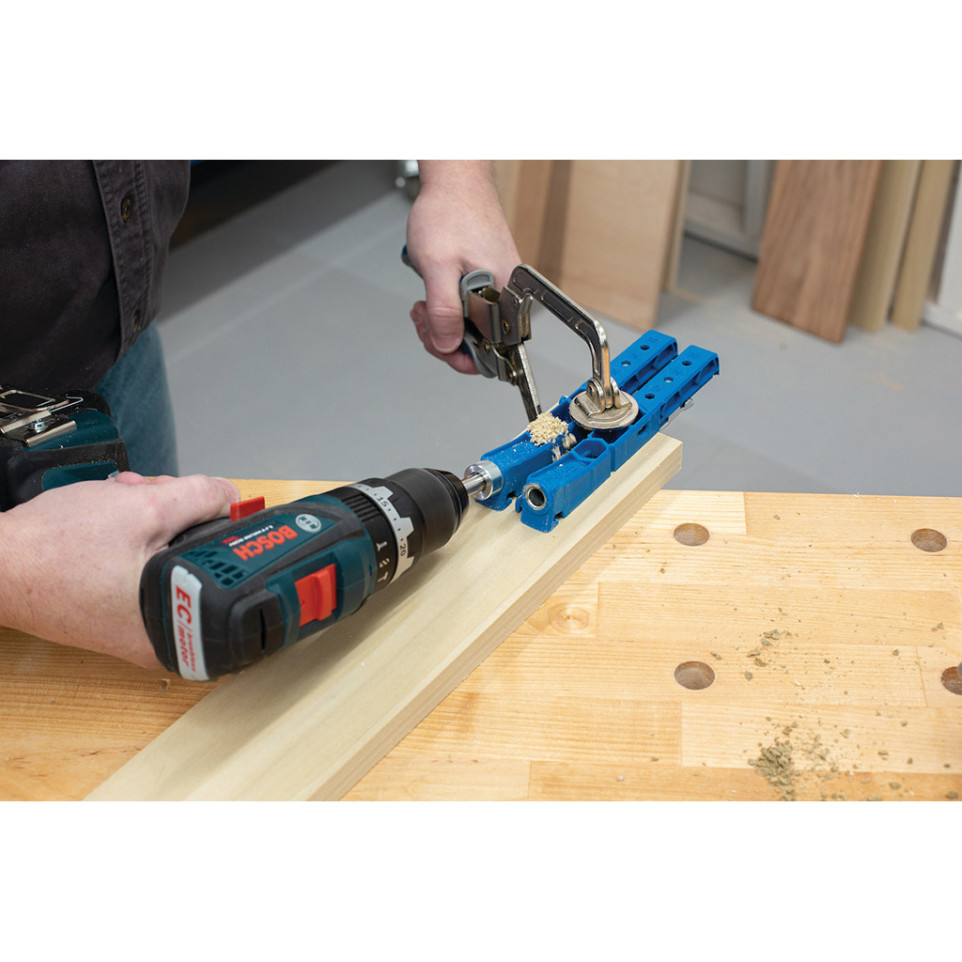

To use the jig, set the appropriate stops based on your material's thickness using the included gauge. Clamp the jig onto your workpiece. Drill angled pocket holes through the guide bushings using an ordinary hand drill. Secure pieces together using special screws for robust joints without additional glue.
