Product

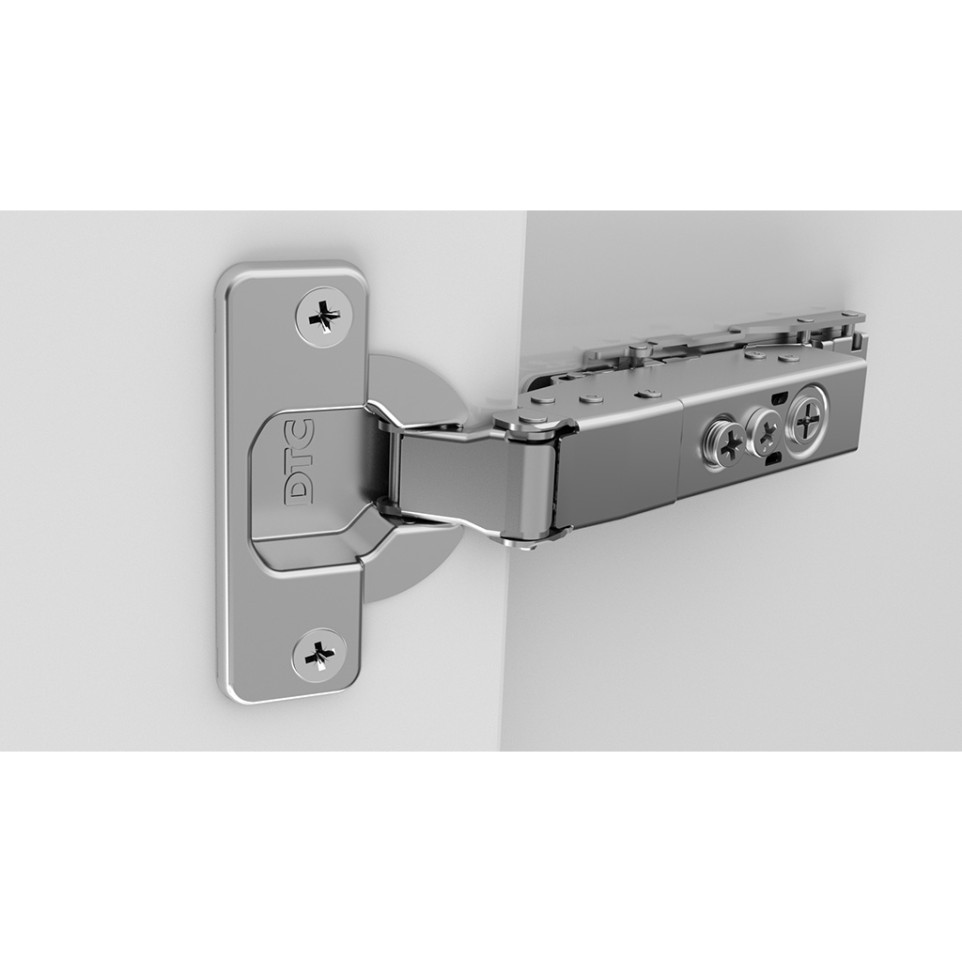

The Charnière Pivot-Star 110° is a nickel-plated stud hinge with integrated soft closing and automatic closing. Designed for semi-overlay cabinet doors, it is ideal for kitchens, bathrooms, and furniture requiring controlled, quiet closure.
Specifications
- Nickel-plated finish, durable steel construction for long-lasting performance
- Integrated damping system for soft, quiet door closure; automatic closing function

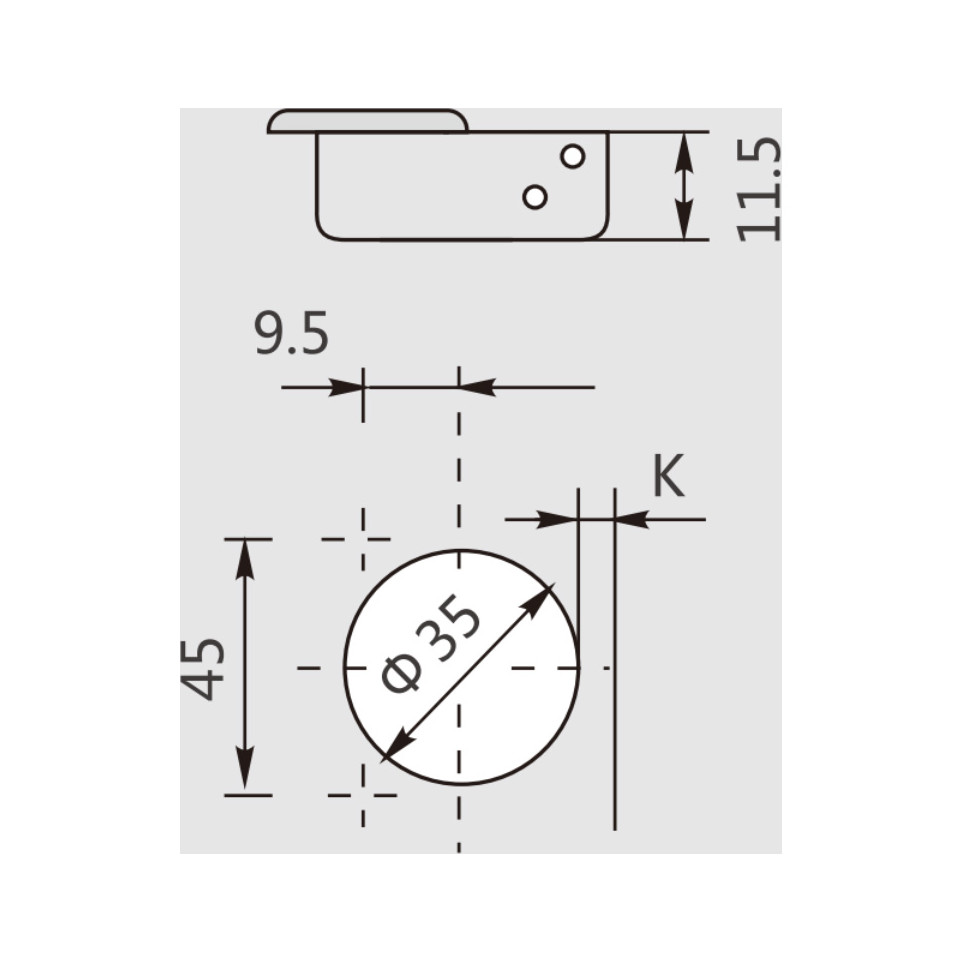

- 110° opening angle, cup depth 11.5 mm, cup diameter 35 mm

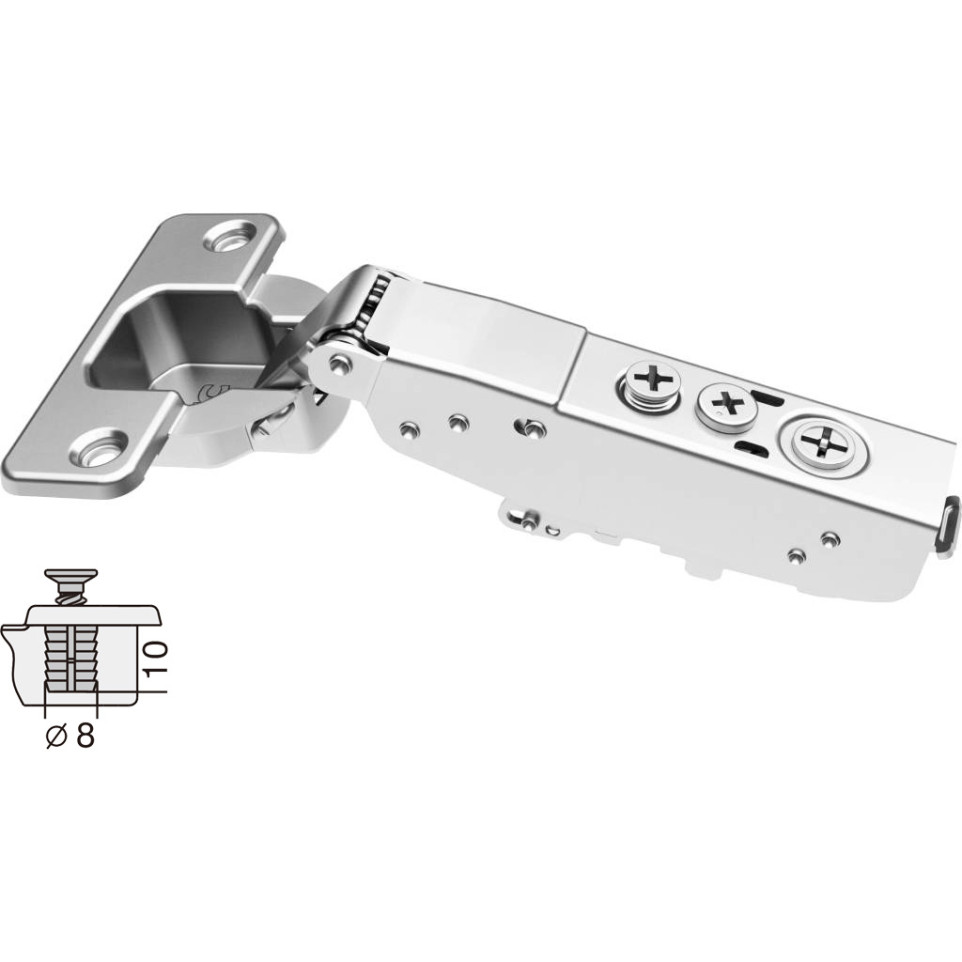

- Mounts with expansion dowels (Ø8x10 mm) for simple, secure installation
- Semi-overlay hinge type, 45 x 9.5 mm drilling pattern
- Compatible with door thickness from 16 mm to 26 mm

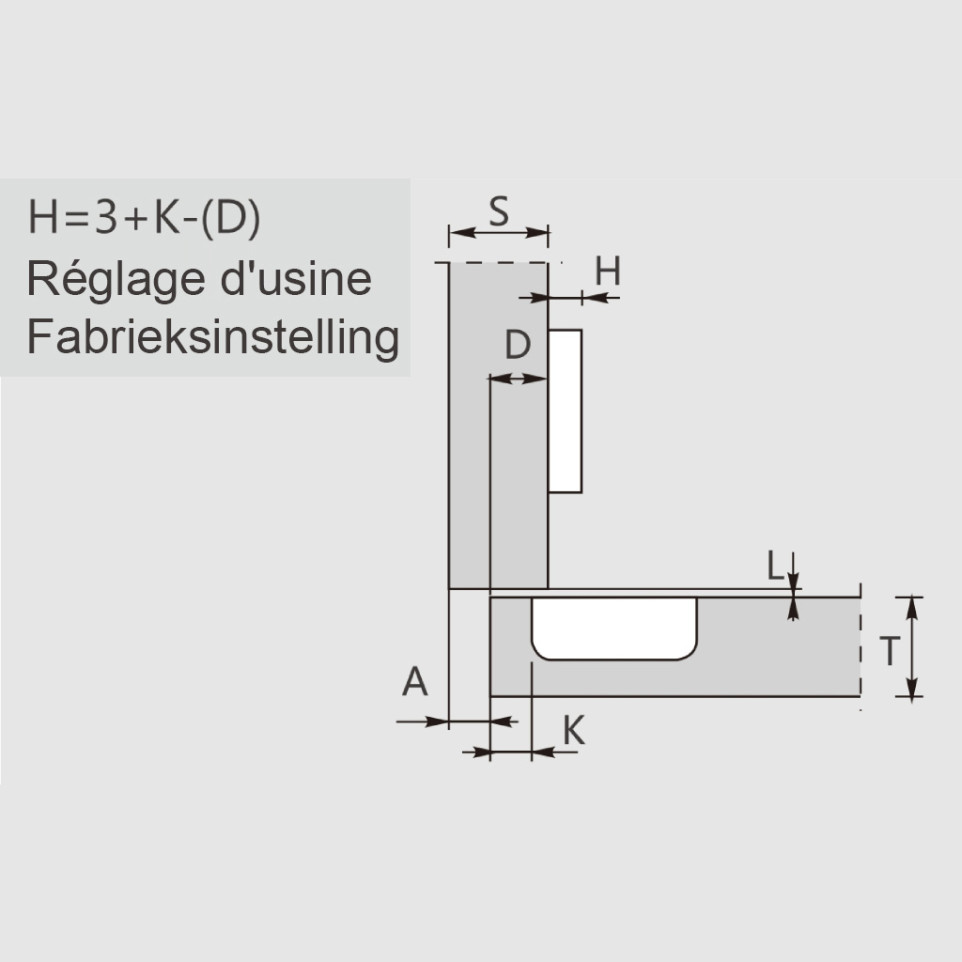

- Drill distances on door (K): 3–6 mm
Usage
The Pivot-Star 110° hinge attaches to cabinet doors using expansion dowels and hinges onto the cabinet frame for stable support. The integrated damper cushions each close, reducing noise and wear. Its design allows for automatic closing and a wide, 110° door opening for enhanced accessibility.
FAQ
- What door thickness is compatible with this hinge? — It fits doors from 16 mm up to 26 mm thick.
- Is the soft-close feature adjustable? — The built-in damper provides consistent soft closing; some models offer speed adjustment.
- What is the required cup hole size for installation? — Cup diameter is 35 mm and cup depth is 11.5 mm.
- Will this hinge work for full overlay doors? — It is specifically designed for semi-overlay applications.
- How is the hinge attached to the door? — Installation uses expansion dowels (Ø8x10 mm), requiring appropriate pre-drilled holes.
