Product

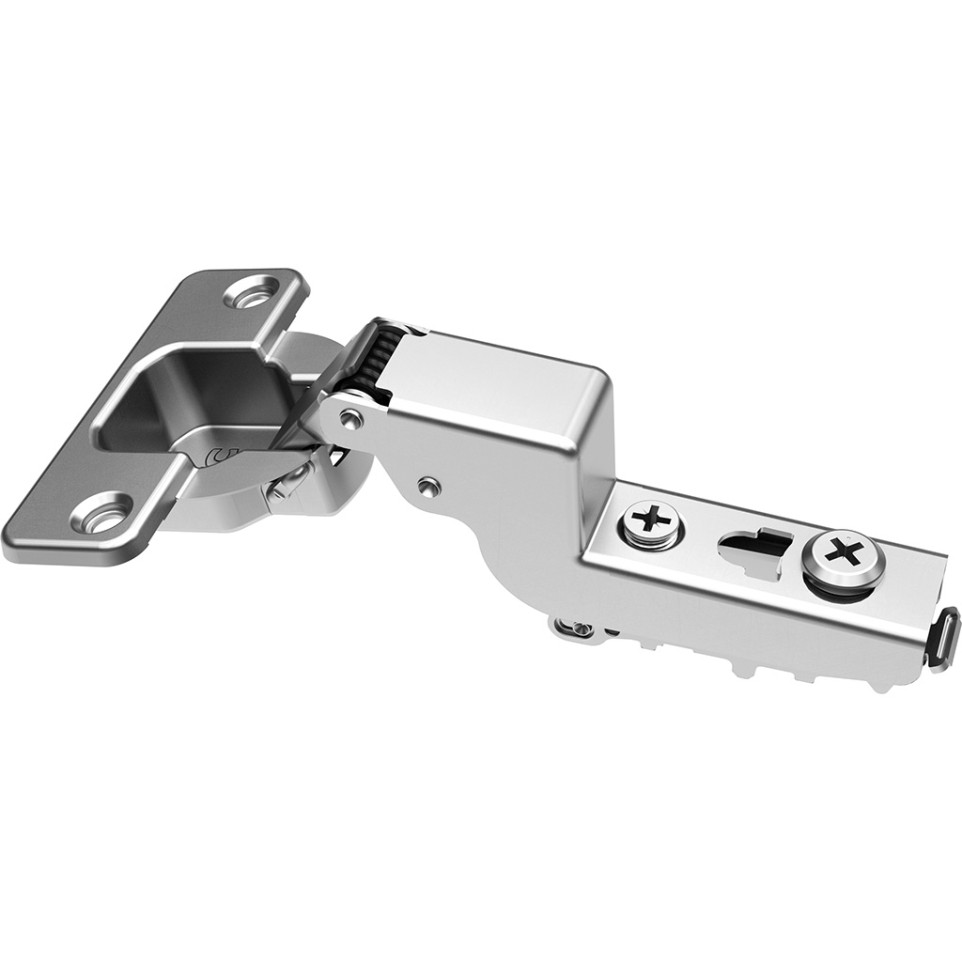

Stylish 110° nickel-plated inset hinge designed for screw mounting, without integrated soft-closing, and featuring automatic door closure. Engineered for recessed kitchen, bathroom, or furniture doors with a clean installation and reliable closing action.
Specifications
- Nickel-plated finish for corrosion resistance and modern appearance
- Screw-on mounting, compatible with inset (recessed) doors
- Opening angle: 110°

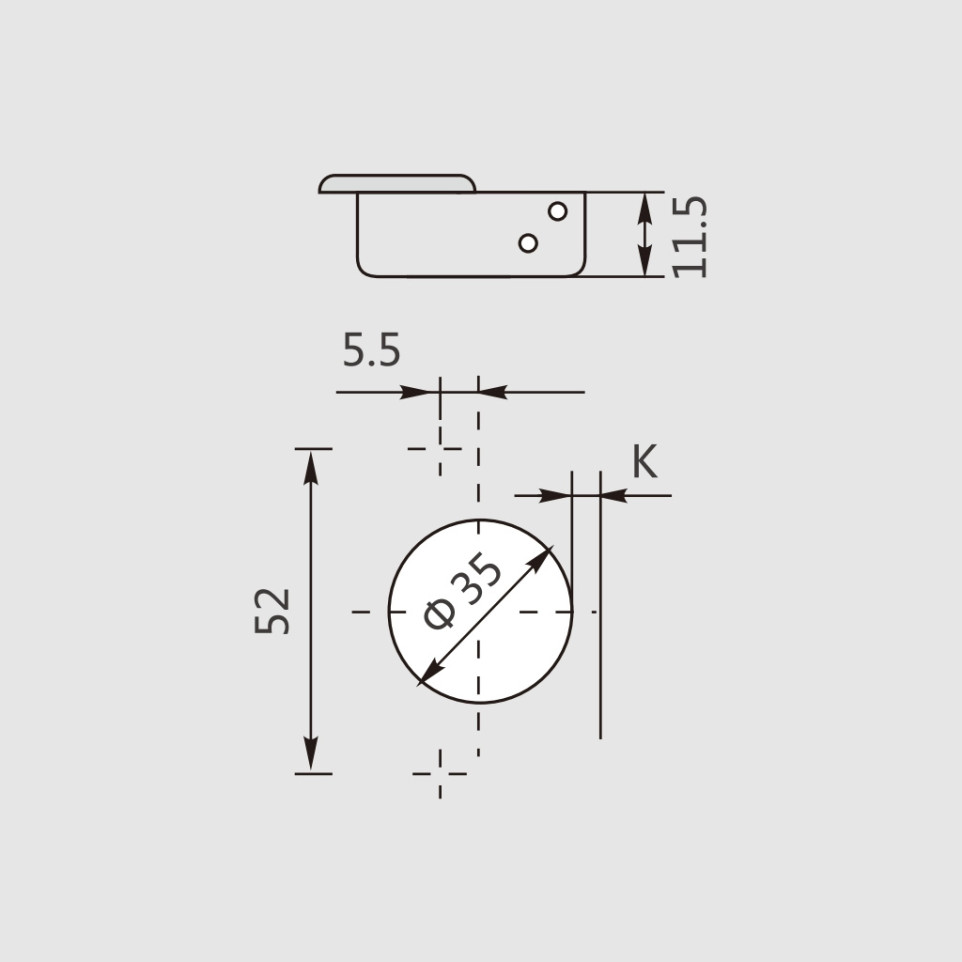

- Hinge cup diameter: 35 mm; hinge cup depth: 11.5 mm
- Automatic self-closing function, no damping
- Suitable for door thickness: 16–26 mm

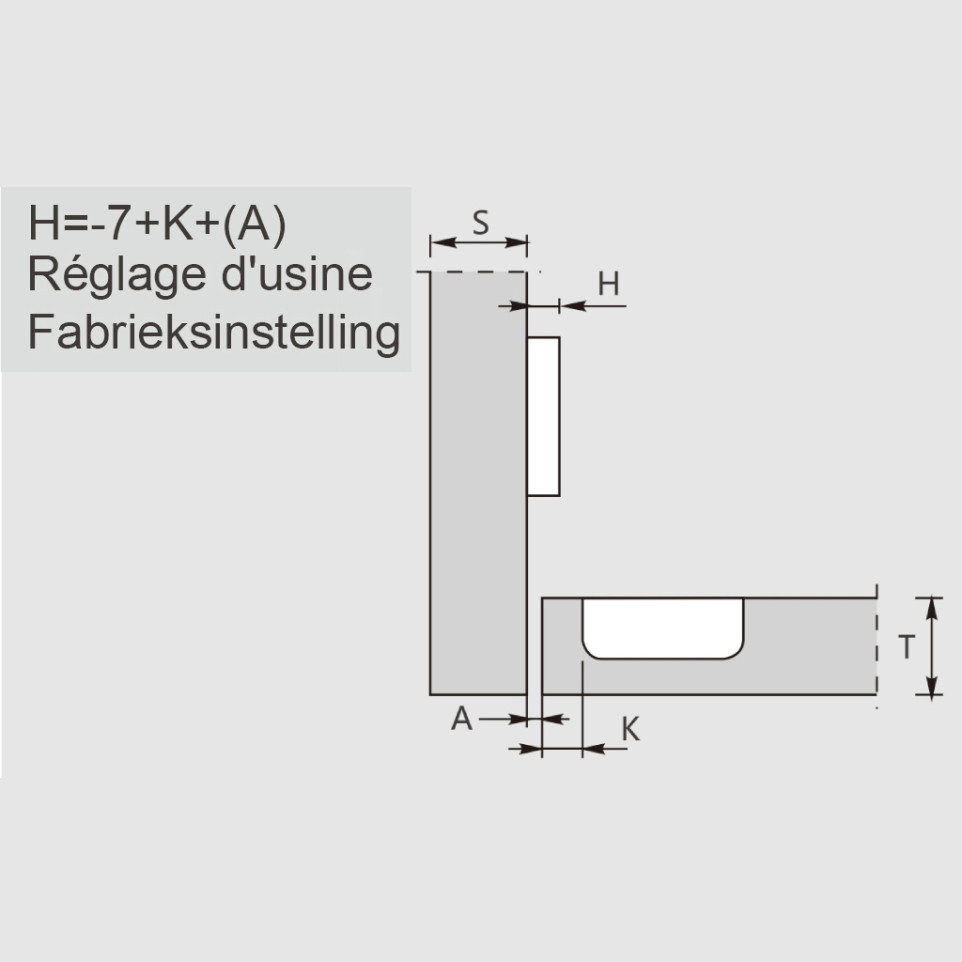

- Drilling pattern: 52 x 5.5 mm; possible drilling distances (K): 3–6 mm
Usage
Install the hinge by screwing it into pre-drilled holes on an inset door and carcass. The automatic closing mechanism ensures the door shuts securely after use. Suitable for cabinetry or furniture applications requiring reliable performance and crisp alignment.
FAQ
-
What type of doors is this hinge compatible with?
This hinge is designed specifically for inset (recessed) doors typically found in cabinets, wardrobes, or furniture. -
Does the hinge provide soft-closing functionality?
No, it features self-closing action but does not include soft-closing or damping. -
What are the dimensions required for the hinge cup bore?
The hinge cup requires a 35 mm diameter and 11.5 mm depth hole in the door. -
For which door thicknesses is this hinge suitable?
The hinge is suitable for doors with a thickness between 16 mm and 26 mm. -
How do I mount this hinge?
The hinge is screw-mounted; follow the drilling schematic of 52 x 5.5 mm and set the drilling distance (K) between 3 mm and 6 mm as needed.
