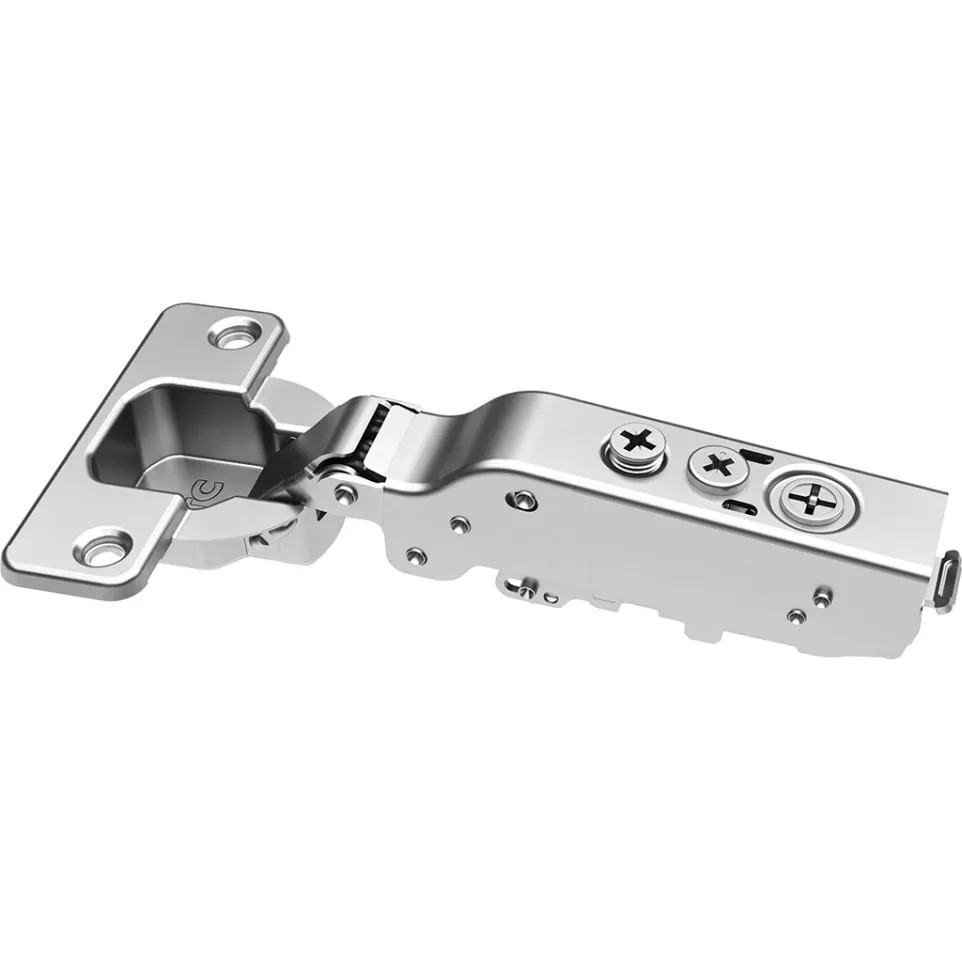

Pivot-Star 95 Degree Nickel Plated Screw-On Hinge with Soft Close and Self Closing for Overlay Doors up to 35mm

Usage

The Charnière Pivot-Star 95° nickel-plated screw-on hinge is designed for overlay doors up to 35 mm thick, providing reliable mounting and smooth controlled closure in furniture or cabinetry applications.

Advantages

• Integrated soft-close damper ensures gentle and quiet door closing
• Automatic closing mechanism keeps doors securely shut without effort
• Nickel-plated steel construction offers good corrosion resistance and robust durability
• Screw-on design enables secure installation and straightforward adjustment during fitting
• Suitable only for overlay doors with a thickness range of 19–35 mm, not compatible with inset installations

Specifications

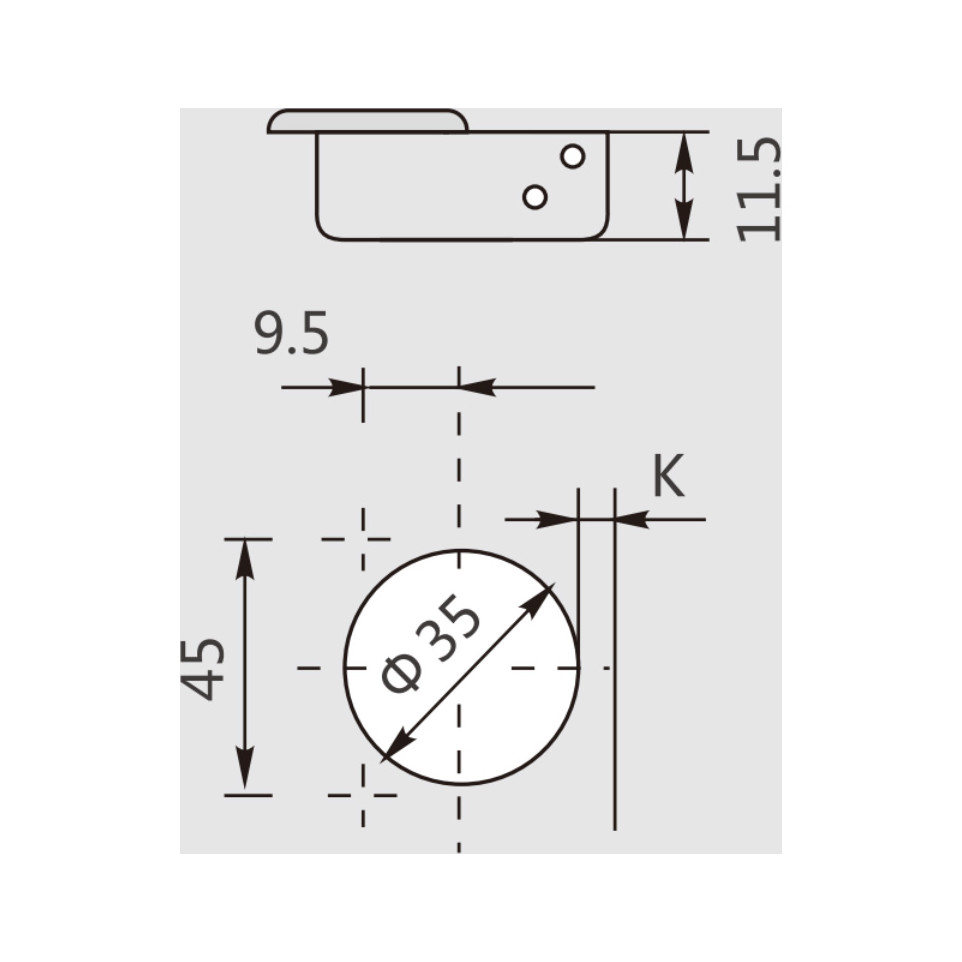

• The hinge body is made of nickel-plated steel; features a built-in damping system; overlay mounting type; diameter: 35 mm; depth: 11.5 mm[1][2]
• Engineered for long-term performance in indoor environments where moderate humidity is present; finish provides added surface protection[1]
• The opening angle reaches up to 95°, supporting standard cabinet functionality while preventing overextension[1][3]

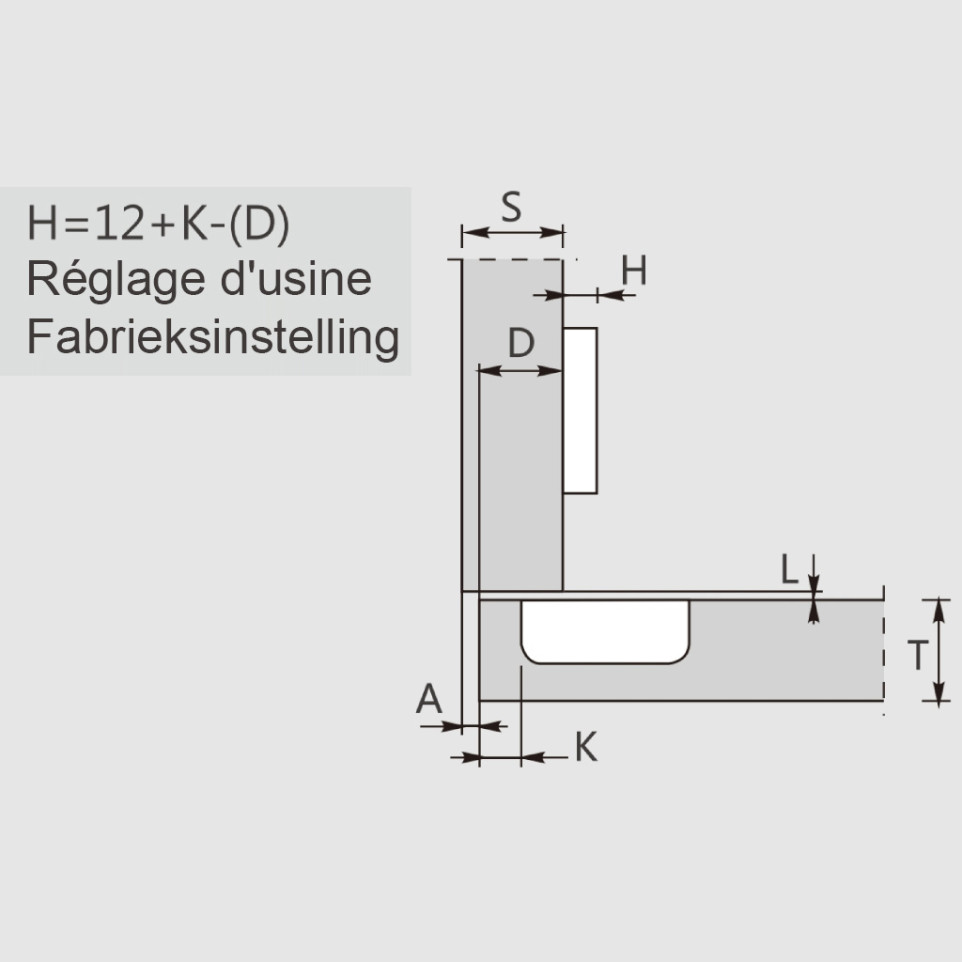

• Differentiating features include integrated soft-closing technology, automatic door closing, compatibility with thick (19–35 mm) overlay doors, and precise screw-fix assembly scheme (TB45 x 9.5 mm)[1][3]

How it works

This hinge mounts to the cabinet using screws. When installed on an overlay door up to 35 mm thick, the integrated damper slows movement as the door closes while an auto-closing spring mechanism completes secure closure at the end of travel.
