Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

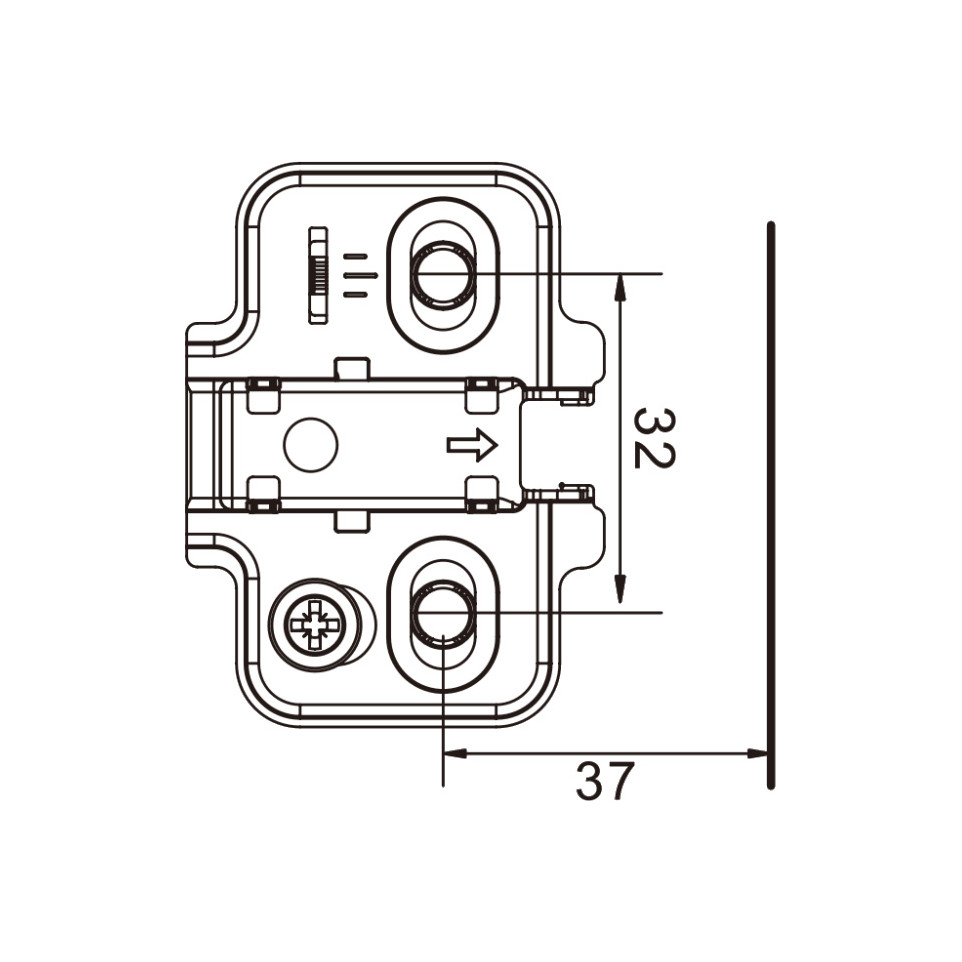

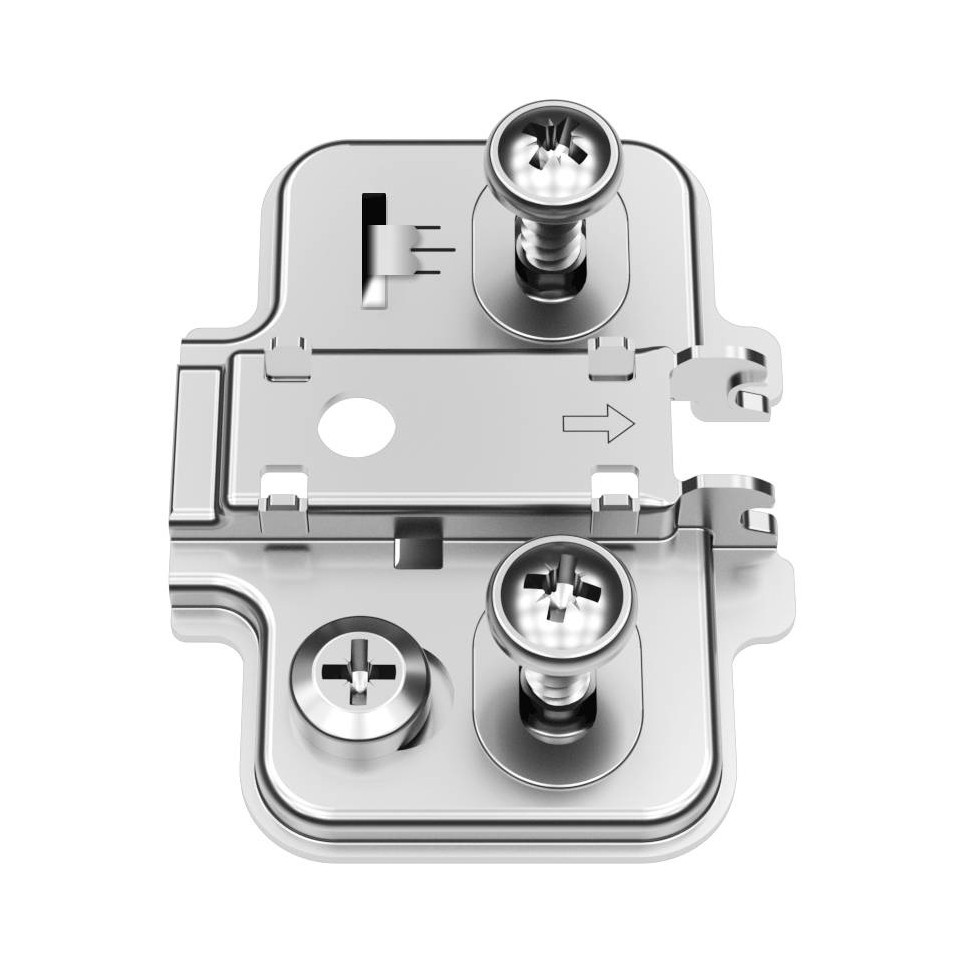

Cruciform mounting plate in a stylish nickel finish, equipped with special screws and expanding sleeves suitable for Ø5 x 12mm holes. Features direct height adjustment for precise cabinet door alignment, with a 4mm mounting distance, ideal for stud hinges and accessories.
Specifications
- Constructed from high-quality steel and nickel-plated for durability and corrosion resistance

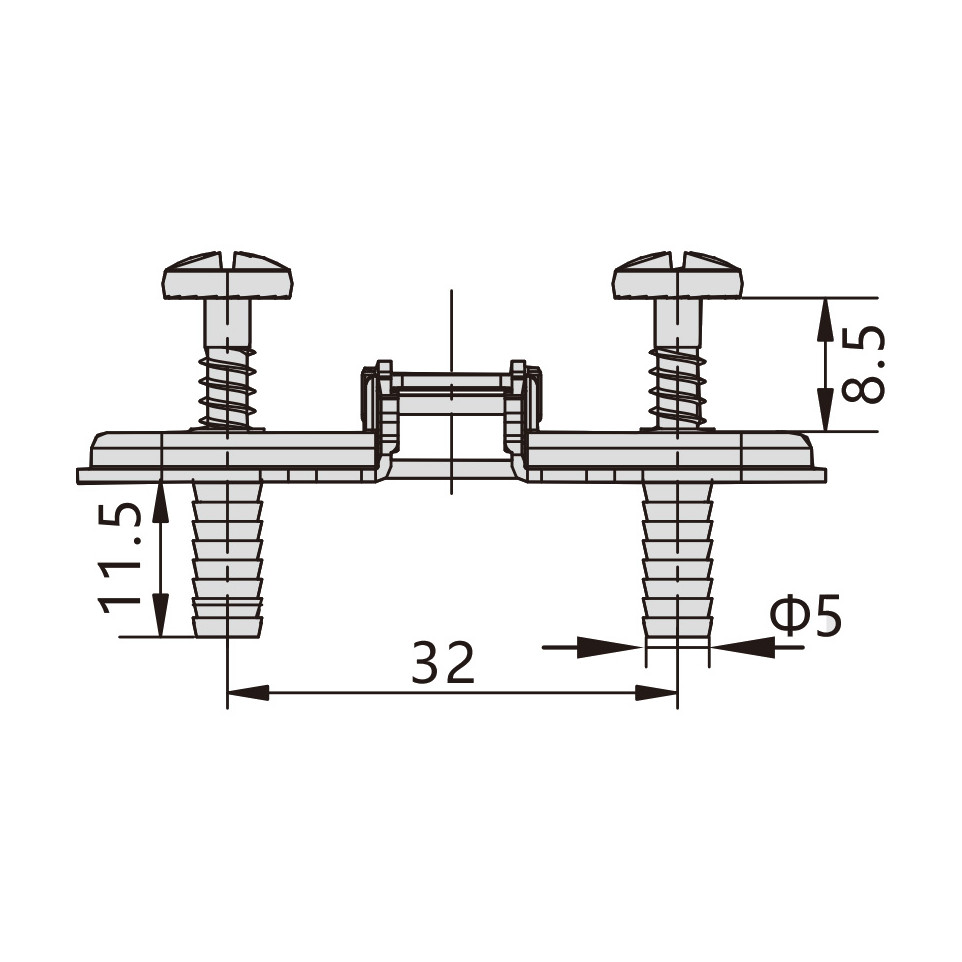

- Designed with special screws and expansion sleeves for secure mounting in pre-drilled holes (Ø5 x 12mm)
- Allows direct vertical adjustment to fine-tune door positioning
- 4mm standard mounting distance for compatibility with many hinge types
- Robust construction intended for repeated adjustments and long-term use
Usage
Install by inserting the expanding sleeves into pre-drilled holes and fastening the special screws for a strong hold. Adjust door height directly on the plate for optimal alignment, ensuring reliable and repeatable results in cabinetry applications.
FAQ
-
What type of screws and sleeves are included?
- The plate comes with special screws and expanding sleeves designed for Ø5 x 12mm holes, ensuring firm attachment to panels.
-
Can the plate be used with various hinge types?
- Yes, it is compatible with most stud hinges and accessories designed for cruciform mounting plates.
-
Is height adjustment possible after installation?
- Yes, the direct height adjustment feature allows for post-installation alignment without disassembly.
-
What materials is the mounting plate made from?
- It is made from steel with a nickel-plated finish for enhanced durability and resistance to wear.
-
How is the mounting distance specified?
- The plate provides a fixed 4mm distance, suitable for standard European cabinet installations.
