Product

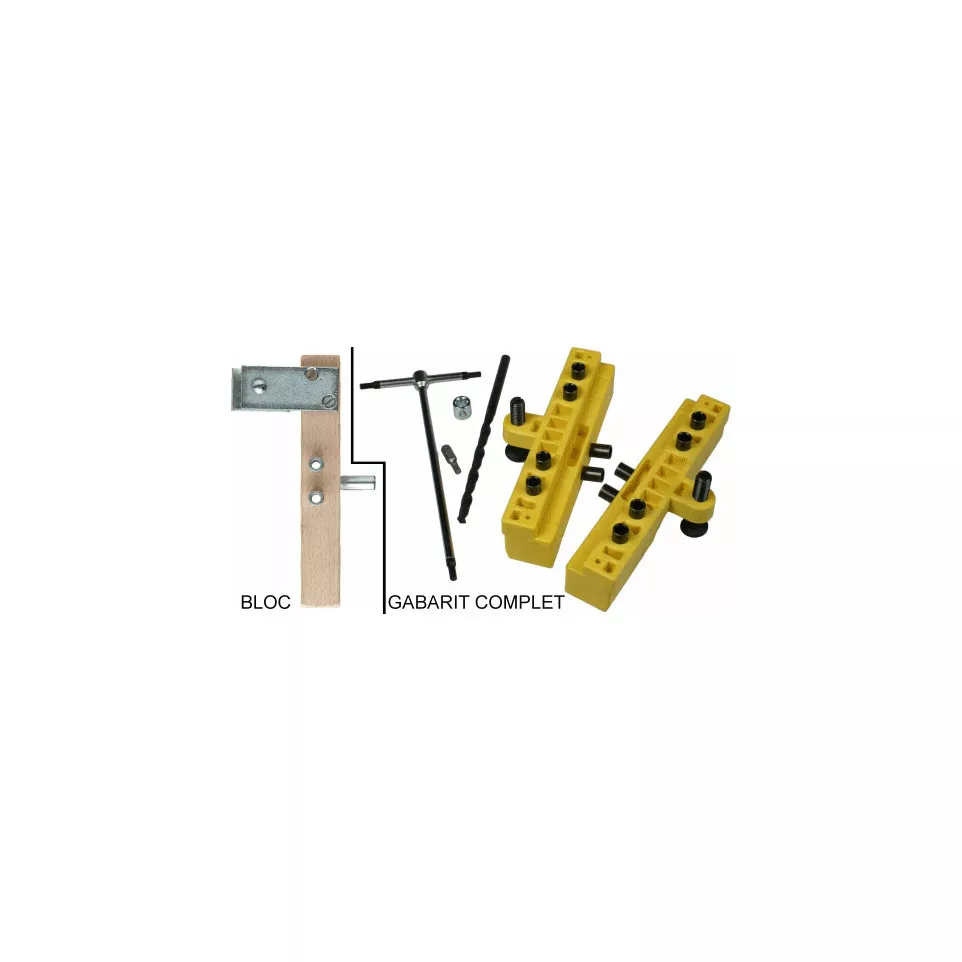

Complete Ø16mm jig set with two rods, designed for precise installation of Otlav 030 Ø16mm dowel hinges. Ideal for professional use in woodworking and door fitting, ensuring accurate alignment and drilling for hinge and plug mounting.
Specifications
- Supplied with two template blocks, a stepped drill bit matched to diameter, an adjustment key, and a hexagonal screwdriver bit.
- Constructed for compatibility with Otlav 030 hinges and dowels, delivering repeatable accuracy on job sites.
- Features robust materials and a technical layout tailored to industry standards for hinge and plug installation.
Usage
Secure the jig blocks to your workpiece, insert the rods to maintain position, and use the included stepped drill for precise dowel and hinge boreholes. Adjustment key ensures proper calibration, while the hex bit supports quick fastening during assembly.
FAQ
- What is included in the Ø16mm jig set?
- The set comes with two jig blocks, a stepped drill bit, an adjustment key, and a hexagonal screwdriver bit.
- Is this jig compatible with other hinge models?
- It is specifically engineered for Otlav 030 Ø16mm dowel hinges; compatibility with other models may require verification.
- How do I maintain the drilling accuracy?
- Use the rods and adjustment key to keep the jig correctly positioned and calibrated throughout repeated uses.
- Can this be used on-site or only in workshops?
- The design supports use in both professional workshops and on-site installations.
- Are replacement parts available for the kit?
- Check with authorized Otlav distributors for spare components and accessories.
