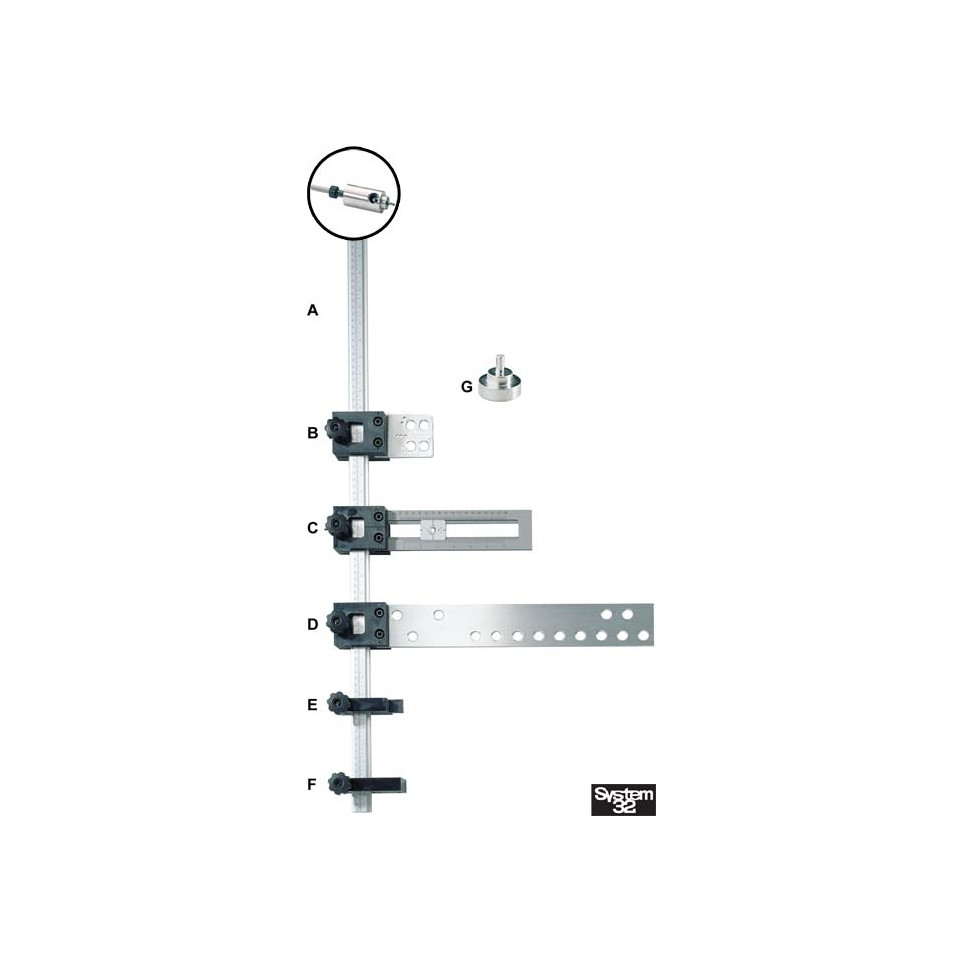

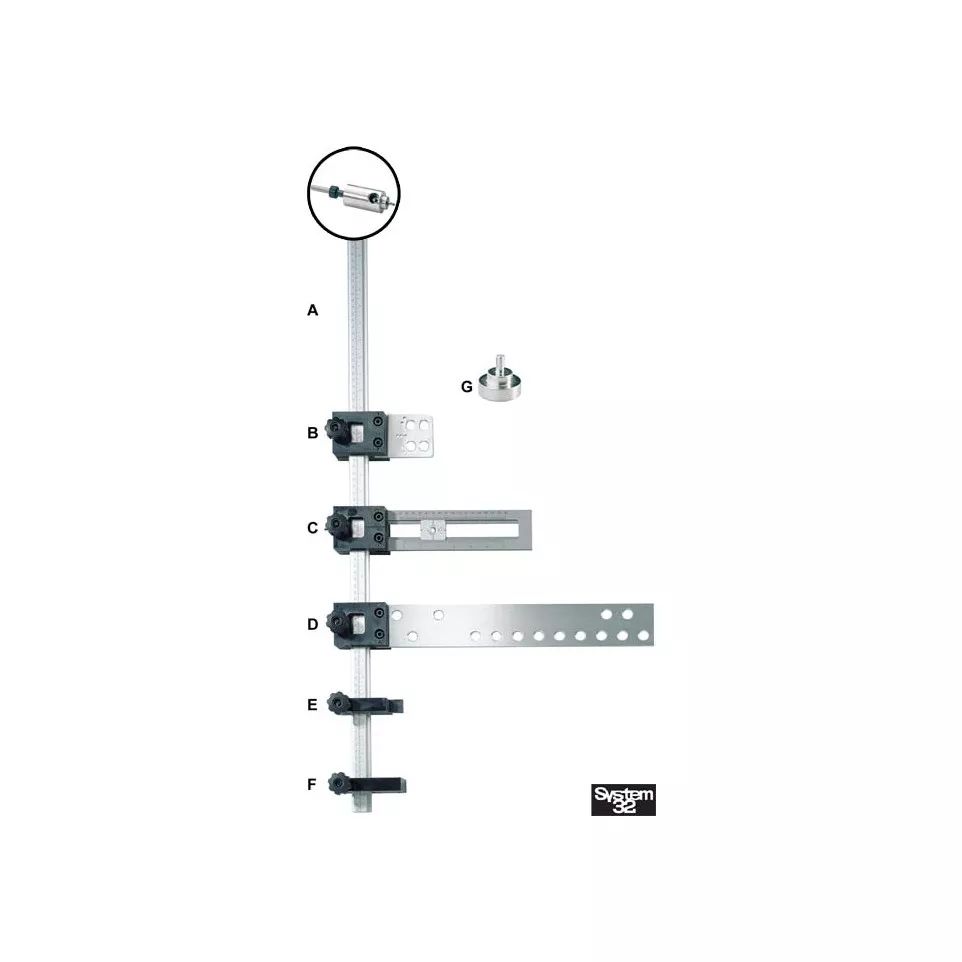

Accura Rail with Scale, Length 1000mm per Piece

Usage

The Rail Accura with graduation, 1000mm long, is a precision measuring rail designed for use with ACURA universal drilling jigs. It ensures accurate positioning and alignment when installing hardware in cabinetry or woodworking projects.

Advantages

• Provides highly precise measurements thanks to integrated metric graduation along the entire length.
• Ensures consistent repeatability for multiple drilling operations on panels or carcasses.
• Constructed from lightweight but durable aluminum for easy handling in daily workshop use.
• Simplifies setup and readout with clear, wear-resistant graduations directly on the rail.
• Compatible with ACURA universal drilling jig systems commonly used in cabinet assembly; not suitable as a standalone straightedge.

Specifications

• The rail is made of high-quality anodized aluminum, offering both strength and corrosion resistance over time.
• The printed metric graduation enables precise adjustment when setting drilling positions, supporting system-32 layouts and similar standards.

• Total length: precisely 1000mm. Graduation accuracy typically within ±0.1mm/meter depending on manufacturing tolerances.

• The profile allows secure attachment to compatible ACURA jigs while maintaining portability and minimizing flex during operation.


How it works

Position the Rail Accura on your workpiece using its graduated scale to set exact distances for boreholes or hardware mounting. Attach your compatible ACURA universal drilling jig; then drill at marked positions for accuracy and uniformity across multiple components.
