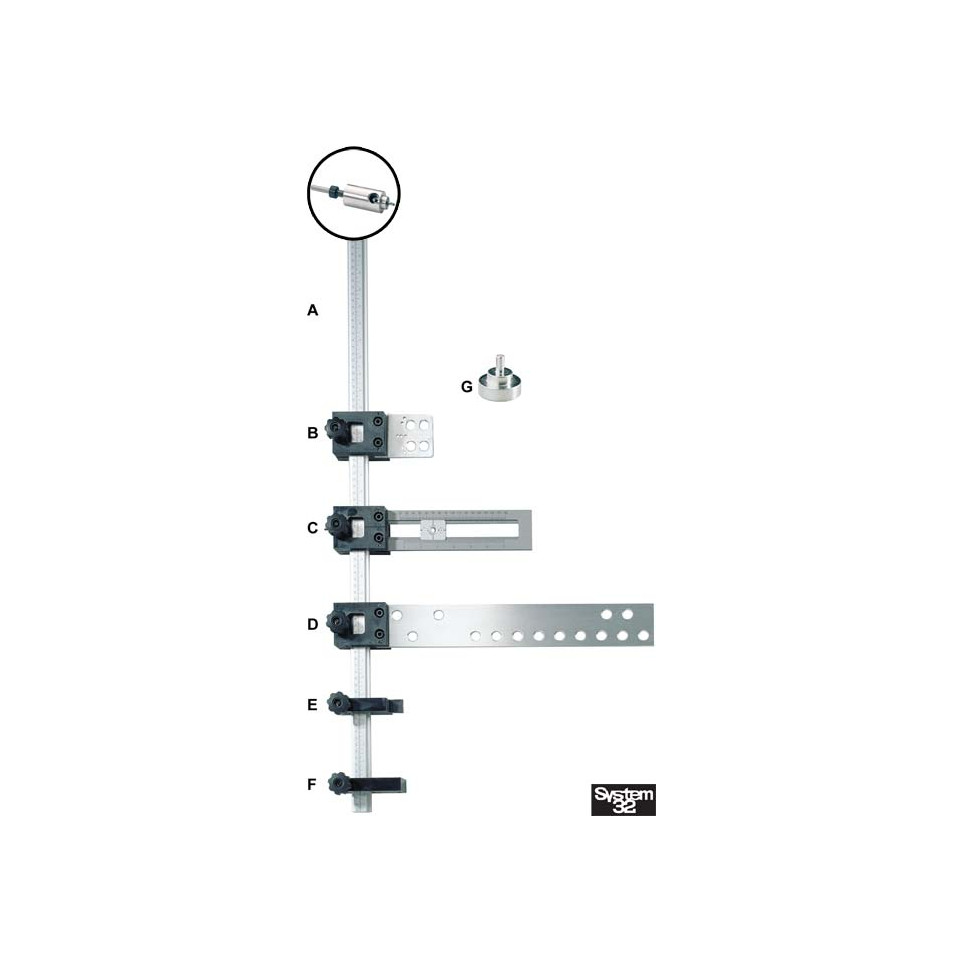

Adjustment Stop for Different Cabinet Uprights per piece

Adjustment Stop for Different Cabinet...

Estimated delivery date :  Tuesday 28 July
€19.68 HT

Ref : FGT-294130

Variantes

Accura drilling plate for sliding device per piece Accura drilling plate for sliding device per piece Accura Drilling Template for Handles and Knobs / pc Accura Drilling Template for Handles and Knobs / pc Accura drilling template for hinges and mounting plates with centering punch and adjustable element per piece Accura drilling template for hinges and mounting plates with centering punch and adjustable element per piece Accura Rail with Graduations 500mm per piece Accura Rail with Graduations 500mm per piece Accura Rail with Scale 1500mm Length per Piece Accura Rail with Scale 1500mm Length per Piece Accura Rail with Scale, Length 1000mm per Piece Accura Rail with Scale, Length 1000mm per Piece Accura Rail with Scale, Length 500mm per piece Accura Rail with Scale, Length 500mm per piece Adjustable Dowel for Accura Drilling Template Guide Elements per piece Adjustable Dowel for Accura Drilling Template Guide Elements per piece Adjustable Stop for Mounted Box / pc Adjustable Stop for Mounted Box / pc
Quantity

Add to your shopping List

You must be logged


Description

Usage

This adjustment stop is designed for precise positioning of various cabinet sides when using the ACURA universal drilling jig. It ensures reliable and repeatable alignment during drilling operations in furniture assembly or cabinetry tasks.

Advantages

  • Enables accurate positioning of side panels and uprights
  • Simplifies repetitive drilling processes for multiple cabinets
  • Prevents misalignment, reducing installation errors
  • Easily adjustable to accommodate different panel thicknesses
  • Compatible with multiple runner and drawer systems following the System 32 standard

Specifications

  • Manufactured from robust, precision-machined materials designed to withstand frequent use within workshop environments
  • No special certification required; compatible with the ACURA universal drilling jig system as per industry standards[3]
  • Allows setting reference stops at fixed positions, supporting repeatable hole patterns consistent with System 32 (e.g., hole spacing of 32 mm)
  • Differentiated by its adjustability for various cabinet panel heights and suitability for both disassembled and pre-assembled units[3]

How it works

The adjustment stop is attached to the ACURA universal drilling jig. Once set to the desired position according to your technical plan or scale on the jig’s rail, it provides a physical limit ensuring that every drilled hole aligns perfectly across all identical components.

See more

Product Details

Brand Hettich
Description E : butée de réglage intérieure de meuble
FGT-294130
