Usage

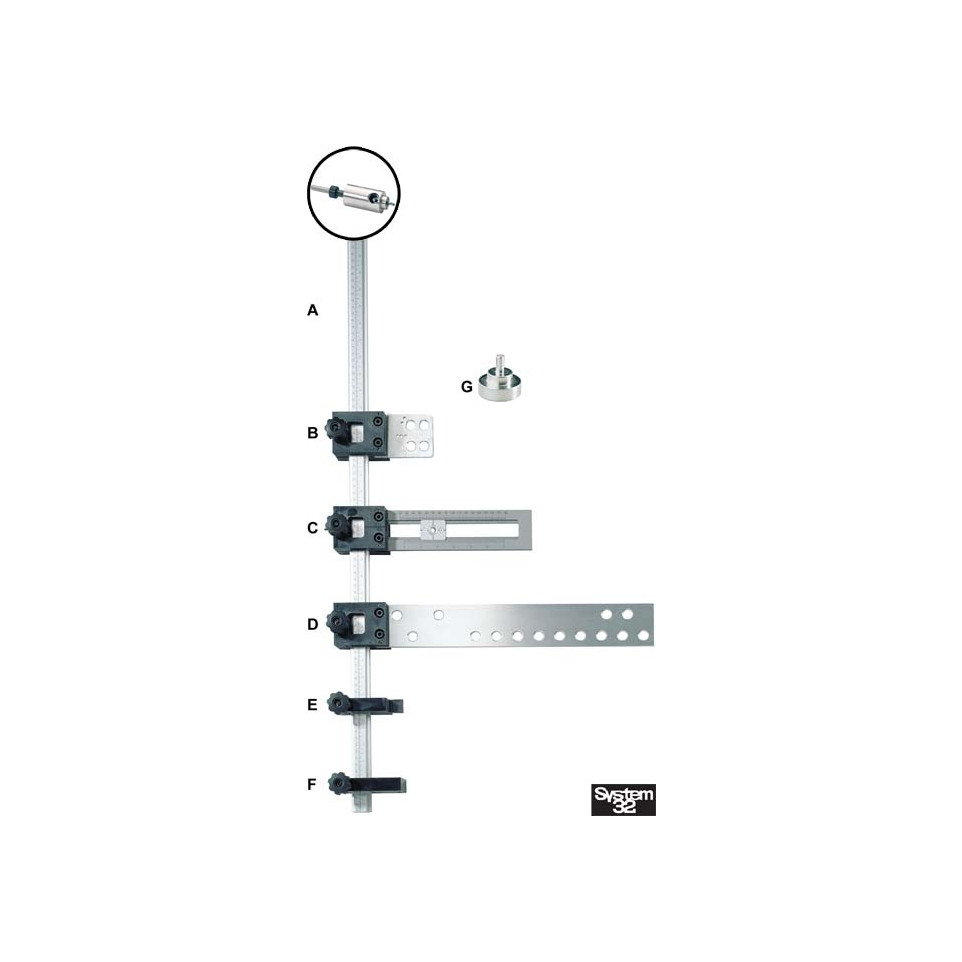

The Rail Accura with graduation, length 1500 mm, is designed for precise alignment and measurement tasks when using the ACURA universal drilling jig. It enables exact positioning of drill holes in cabinetry and furniture assembly applications.
Advantages
- Facilitates highly accurate drilling by providing a precise graduated scale for measurement.
- Simplifies repetitive hole placement along panels or furniture sides without manual marking.
- Constructed from durable aluminium for lightweight handling and strong resistance to wear.
- Easily readable graduations support fast setup and reduce measurement errors during installation.
- Compatible with multiple runner systems, enhancing versatility across various cabinet designs.
Specifications
- The rail is made from robust aluminium with a clear engraved graduation for long-term accuracy and durability[3][4].
- The material ensures corrosion resistance and a low overall weight, ideal for regular professional use[3].
- Total length of the rail: 1500 mm; scale marking allows direct readout of dimensions during jig setup[3].
- Differentiating feature: The integrated measuring scale streamlines workflow by eliminating separate measuring tools while ensuring parallelism during drilling tasks[8].
How it works
The user attaches the graduated rail to the ACURA universal drilling jig, aligns it according to required measurements indicated on the scale, then secures it to guide precise vertical or horizontal drilling. This process ensures consistent alignment across cabinet panels or similar woodworking projects[8].
