Description

Product

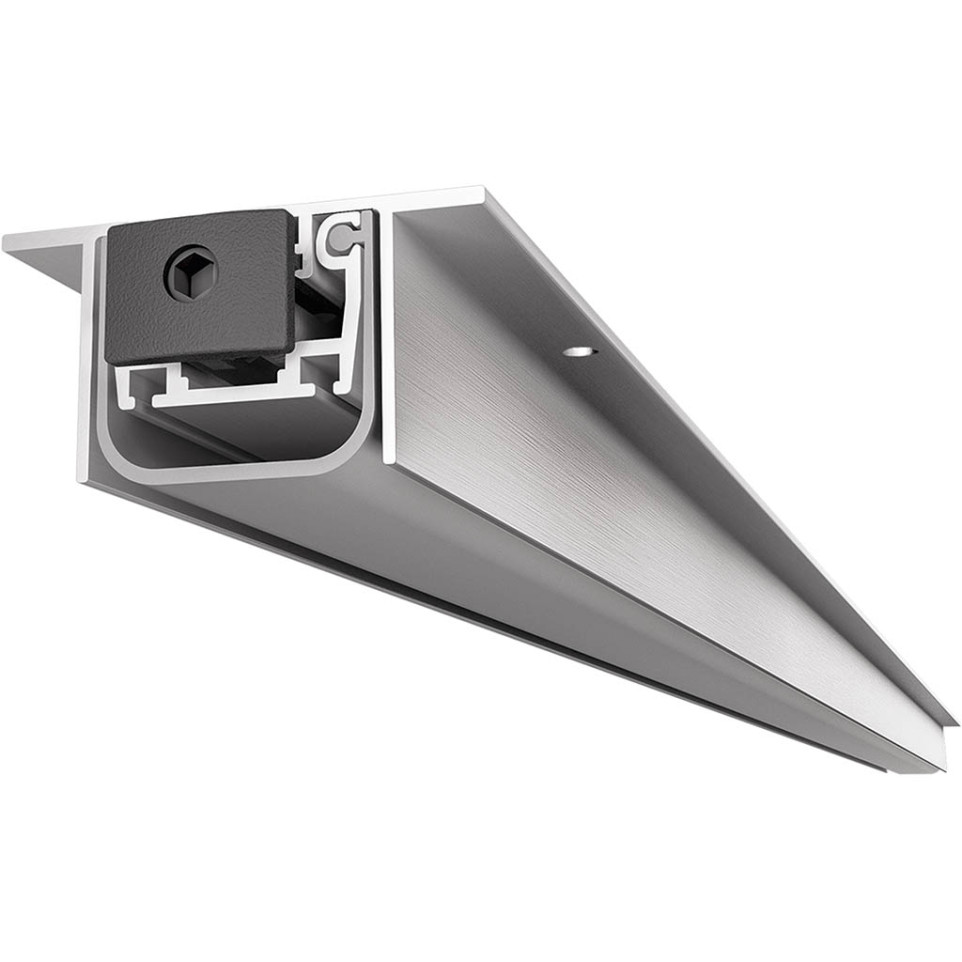

The CCE ALUWING 3920 automatic baseboard, 630mm, is engineered to efficiently seal the gap beneath aluminum and security doors. Designed for robust environments, this product ensures controlled sealing and streamlined installation on various floor types.

Specifications

  • Nylon linkage system reinforced with fiberglass provides consistent pressure and maximum sealing efficiency
  • Durable thermoplastic, fire-resistant monolayer seal
  • Designed for aluminum and armored doors; maximum shortening by 150mm
  • Push-button in nylon with rounded, hex-adjustable head (3mm)
  • Easy mounting with screws through external profile wings (screws not included)

Usage

When the door closes, the push-button mechanism activates rigid nylon arms that lower the internal profile in a smooth guillotine-like motion, ensuring the seal firmly presses to the entire floor length. This reliably blocks drafts, dust, and sound from passing beneath the door.

FAQ

  1. What door types can this automatic baseboard be installed on?
    It is developed for aluminum and armored doors.

  2. How is the lowering action triggered?
    The push-button system activates when pressed against the door frame or an external stop as the door closes.

  3. Can the length be adjusted?
    Yes, it can be shortened by up to 150mm for a precise fit.

  4. What is the seal made of?
    The seal is made of mono-extruded, fire-resistant thermoplastic for enhanced durability.

  5. Does the package include screws for installation?
    No, the necessary screws must be supplied separately.

mvm-dt-2025-07-20

See more

Product Details

Brand CCE
Length (in mm) 630
Stroke ( mm ) 14
Noise level (dBA) 50,00
FGT-195426
