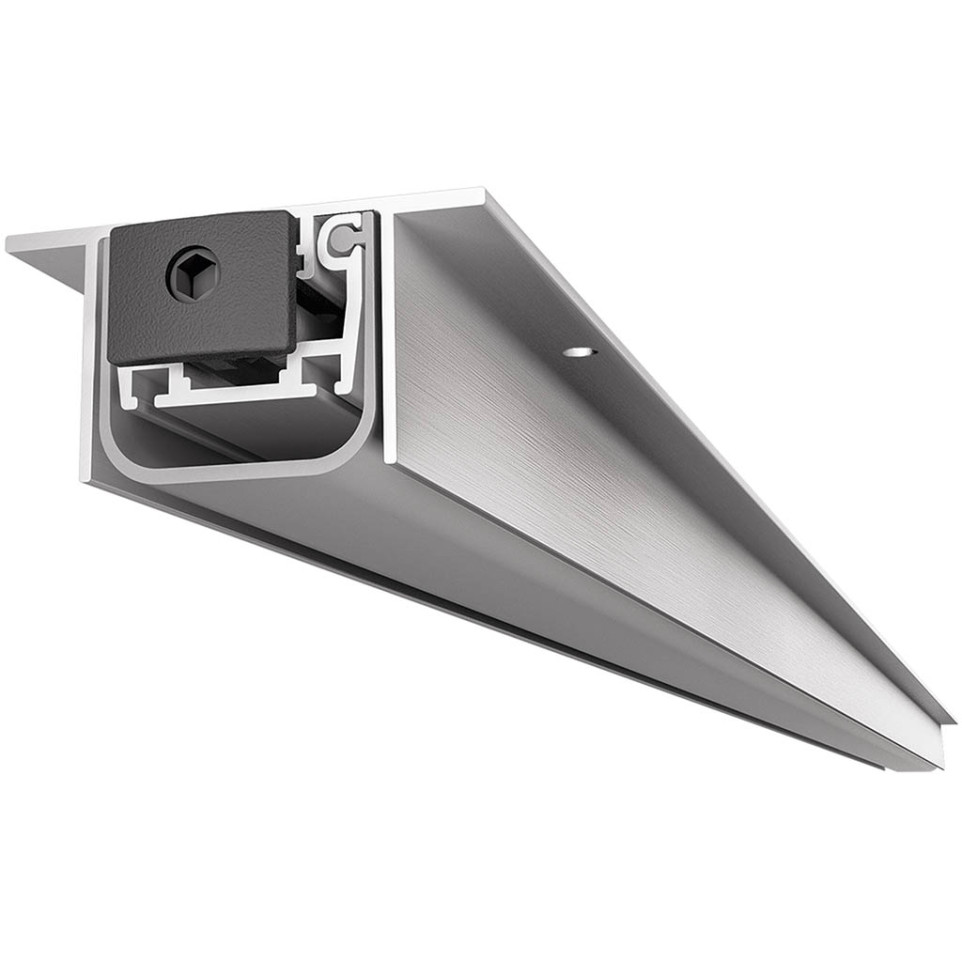

Automatic baseboard CCE ALUWING 3920, 430 mm length, designed for reliable sealing at the bottom of aluminum or armored doors.
Specifications
- Features a system of rigid, nylon pushrods reinforced with fiberglass for maximum efficiency and uniform pressure along any floor surface.
- Equipped with a rounded nylon push-button, adjustable using a 3 mm hex key.
- Sealing gasket made from single-extruded, flame-retardant thermoplastic material.
- Mounts using screws (not included) through external profile flanges.
- Allows shortening by up to 110 mm for flexible installation.
Usage
When the door closes, the push-button compresses against the door frame or an external stop, activating the pushrods. The internal mobile profile descends with a guillotine motion to press the entire length of the seal firmly against the floor, closing any gap and limiting air, dust, or noise infiltration.
FAQ
-
What type of doors can this automatic baseboard be installed on?
This product is suitable for aluminum doors and armored (security) doors.
-
Is the push-button adjustable for different door clearances?
Yes, the nylon push-button is adjustable using a 3 mm hex key to adapt to varying clearance requirements.
-
Can the product be cut to fit a specific door width?
The baseboard can be shortened by up to 110 mm to ensure a perfect fit.
-
What is the seal made of?
The seal is made from a single-extruded, flame-retardant thermoplastic for safety and durability.
-
Are mounting screws included with delivery?
Mounting screws are not included and must be provided separately for installation.
