CCE ALUWING 3920 Automatic Skirting Board 1030mm / pc

CCE ALUWING 3920 Automatic Skirting Board 1030mm / pc
CCE ALUWING 3920 Automatic Skirting Board 1030mm / pc
CCE ALUWING 3920 Automatic Skirting...
CCE ALUWING 3920 Automatic Skirting...

Estimated delivery date :  Friday 24 July
€43.90 HT
In stock

Ref : FGT-195430

Variantes

Aluwing Automatic Skirting Board CCE 3920 830mm per piece Aluwing Automatic Skirting Board CCE 3920 830mm per piece Automatic CCE ALUWING 3920 Skirting Board 630mm per piece Automatic CCE ALUWING 3920 Skirting Board 630mm per piece Automatic Plinth CCE ALUWING 3920 1430mm per piece Automatic Plinth CCE ALUWING 3920 1430mm per piece Automatic Plinth CCE ALUWING 3920 430mm / pc Automatic Plinth CCE ALUWING 3920 430mm / pc Automatic Skirting Board CCE ALUWING 3920 730mm each Automatic Skirting Board CCE ALUWING 3920 730mm each CCE ALUWING 3920 Automatic Drop Down Seal 530mm per piece CCE ALUWING 3920 Automatic Drop Down Seal 530mm per piece CCE ALUWING 3920 Automatic Plinth 930mm per piece CCE ALUWING 3920 Automatic Plinth 930mm per piece CCE ALUWING 3920 Automatic Skirting Board 1130mm / pc CCE ALUWING 3920 Automatic Skirting Board 1130mm / pc CCE ALUWING 3920 Automatic Skirting Board 1230mm per piece CCE ALUWING 3920 Automatic Skirting Board 1230mm per piece CCE ALUWING 3920 Automatic Skirting Board 1330mm / pc CCE ALUWING 3920 Automatic Skirting Board 1330mm / pc
Quantity

Add to your shopping List

You must be logged


Description

Product

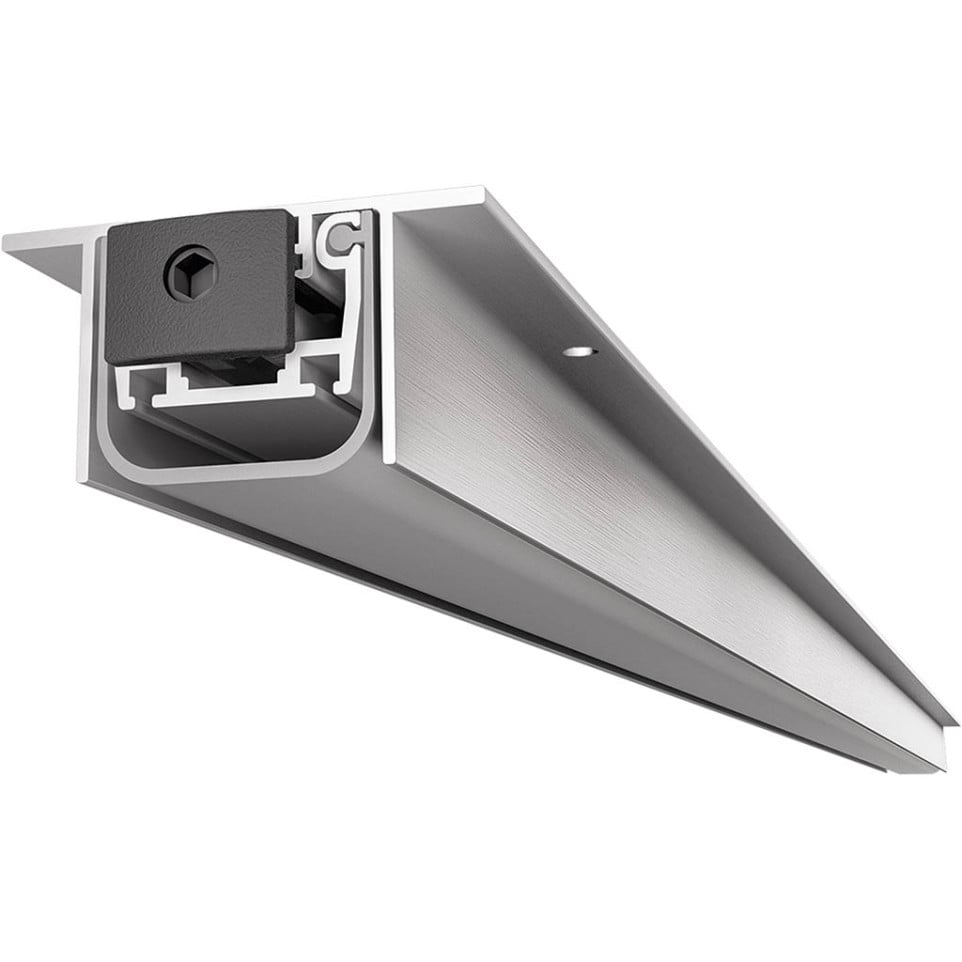

Automatic baseboard CCE ALUWING 3920 is designed for effective door sealing in residential and commercial settings, compatible with armored and aluminum doors.

Specifications

  • Rigid nylon pushrods reinforced with fiberglass for uniform pressure distribution and efficiency
  • Push-button mechanism with rounded nylon head, adjustable via 3 mm hex key
  • Flame-retardant mono-extruded thermoplastic seal
  • Installation with screws through external flanges (screws not supplied)
  • Maximum shortening of 150 mm permitted

Usage

The integrated push-button activates rigid pushrods when the door closes, causing the mobile profile to descend in a guillotine motion and sealing the gap along the floor. The thermoplastic seal adheres across the full door width, ensuring insulation against dust, air, and noise.

FAQ

  1. Is the ALUWING 3920 suitable for armored doors?
    Yes, it is engineered for use on both aluminum and armored doors.

  2. How do you adjust the push-button activation?
    Adjustment is performed using a 3 mm hex key for precise seal actuation.

  3. Does installation require special tools or hardware?
    Only standard screws and tools are needed; screws are not included with the product.

  4. Can the baseboard be cut to fit shorter doors?
    The profile can be shortened by up to 150 mm to suit various door widths.

  5. What type of seal material is used?
    The sealing joint is made of flame-retardant mono-extruded thermoplastic for reliability and safety.

mvm-dt-2025-07-20

See more

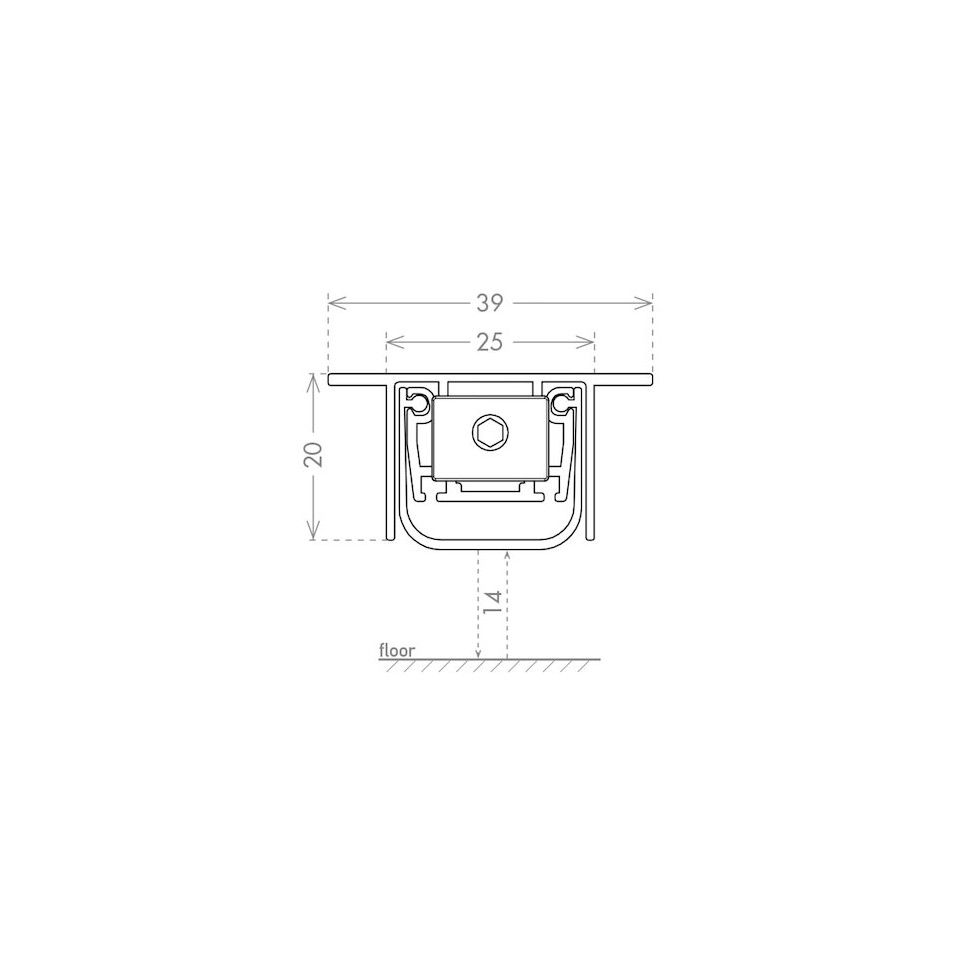

Product Details

Brand CCE
Length (in mm) 1.030
Stroke ( mm ) 14
Noise level (dBA) 50,00
FGT-195430
