Product

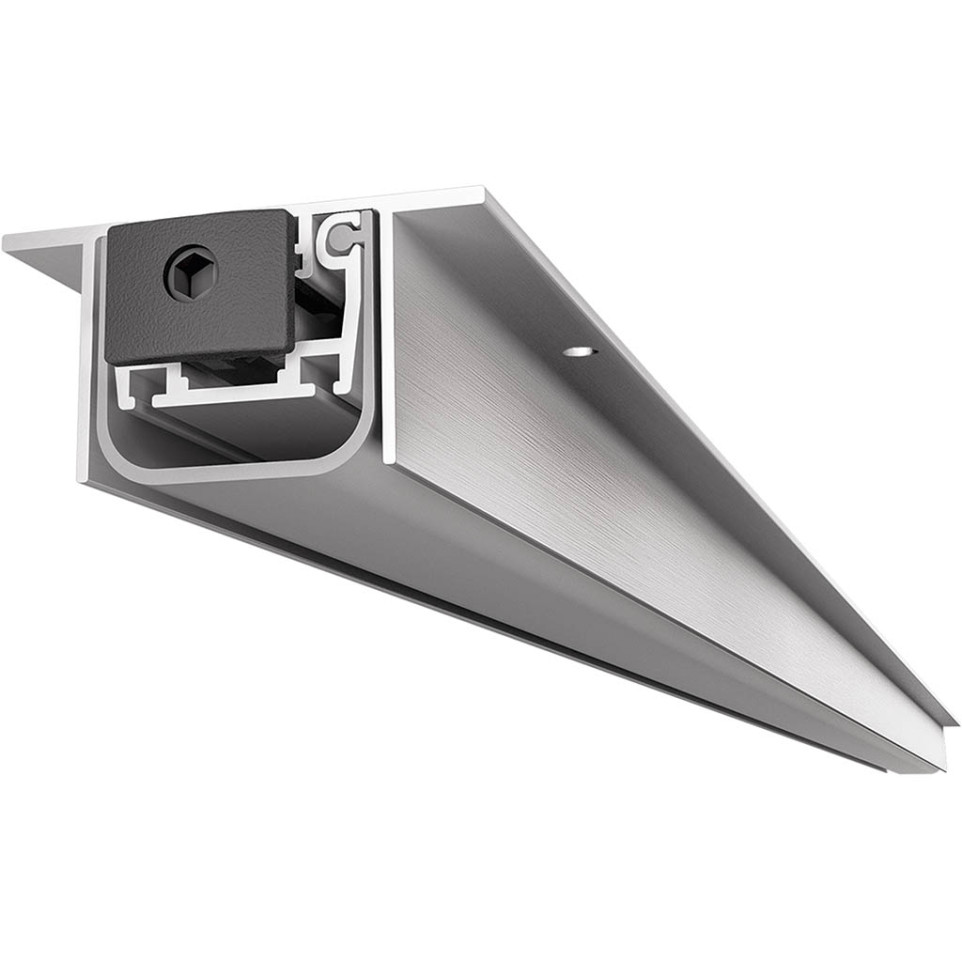

Automatic baseboard CCE ALUWING 3920 is designed for doors, providing efficient sealing against drafts and dust. Suitable for both aluminum and armored doors, this 1330mm unit integrates into various high-performance architectural applications.
Specifications
- Features a system of rigid linkages made from glass fiber reinforced nylon, ensuring maximum effectiveness and uniform pressure along all floor types
- Equipped with a button actuator in nylon, rounded head, adjustable via 3mm hex key
- Integrated mono-extruded flame-retardant thermoplastic gasket for reliable floor sealing
- Internal moving profile delivers guillotine-style downward action for full-length contact
- Mounts with screws (not provided) on the external wings of the profile
- Shortenable by up to 150mm for adaptable door fitting
Usage
When the door is closed, the push-button actuator compresses against the frame or an external stop, triggering the internal mechanisms. The moving profile descends to press the gasket firmly along the entire door width, ensuring a tight seal and reducing air, noise, and dust infiltration.
FAQ
-
What types of doors is this baseboard compatible with?
It is suitable for aluminum and armored doors.
-
How is the length adjusted?
The unit may be shortened by a maximum of 150mm to fit various door sizes.
-
How is the seal activated?
The baseboard is automatically actuated by a push-button when the door is closed, engaging a guillotine-type mechanism for complete contact with the floor.
-
Is the fixing hardware included?
Installation requires screws, which are not provided with the product.
-
What material is the gasket made of?
The sealing gasket is a mono-extruded, flame-retardant thermoplastic for improved safety and durability.
