Product

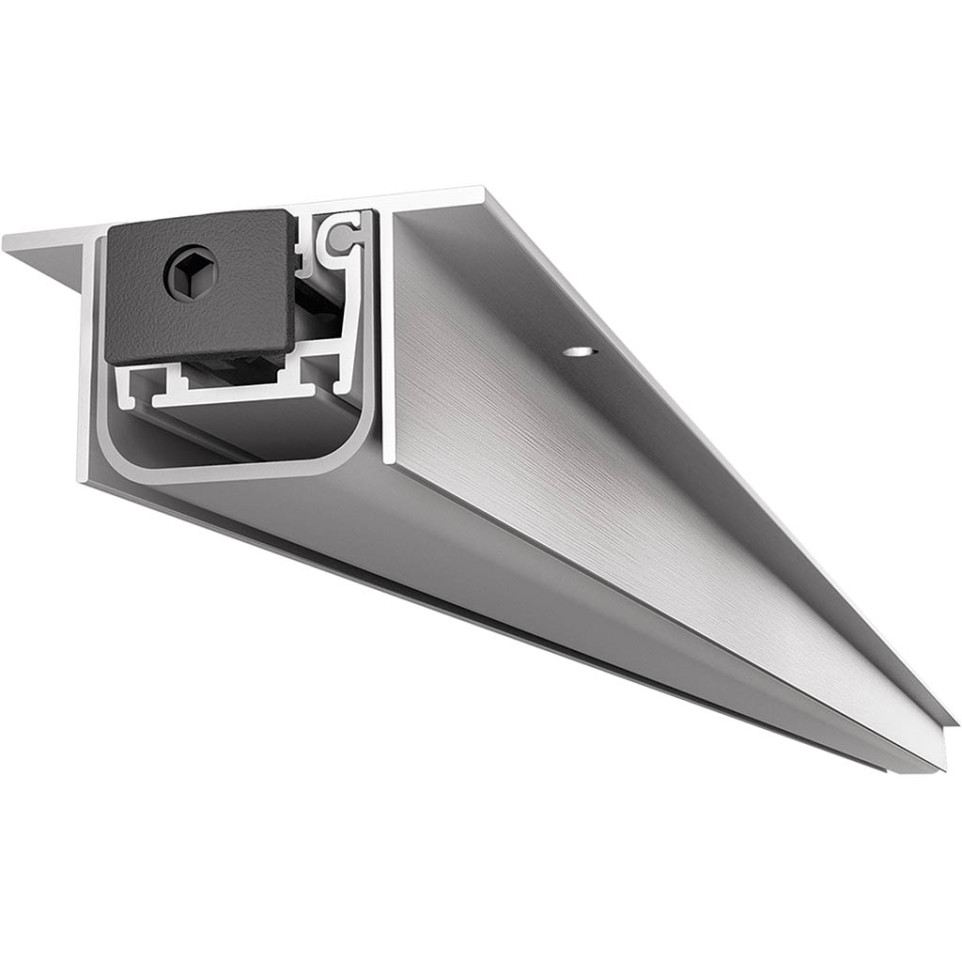

Automatic baseboard designed for 930mm aluminum and armored doors, providing efficient sealing between the door and floor for reliable insulation and protection.
Specifications
- Features rigid nylon linkages reinforced with fiberglass for maximum efficiency and consistent floor pressure.
- Push-button in nylon with a rounded, adjustable head for precise operation using a 3 mm hex key.
- Thermoplastic, fire-retardant mono-extruded sealing strip ensures safety and durability.
- Mounts via screws (not included) on external side fins for secure installation.
- Offers a maximum shortening capacity of 150 mm to suit various door sizes.
Usage
When the door is closed, a push-button mechanism activates the internal linkages, causing the movable profile to descend in a guillotine motion. The seal adheres to the floor along the full door width, effectively closing gaps and optimizing insulation.
FAQ
-
Which types of doors is this baseboard compatible with?
It is suitable for aluminum and armored doors.
-
How is the sealing action achieved?
The push-button releases reinforced nylon linkages that lower the inner profile, pressing the seal uniformly onto the floor.
-
Can the baseboard be adjusted for different door widths?
Yes, it can be shortened by up to 150 mm for flexibility.
-
Is the installation hardware provided?
Screws are not included; installation is done with your own screws through the external fins.
-
What material is the seal made of?
The seal consists of mono-extruded thermoplastic material with fire-retardant properties.
