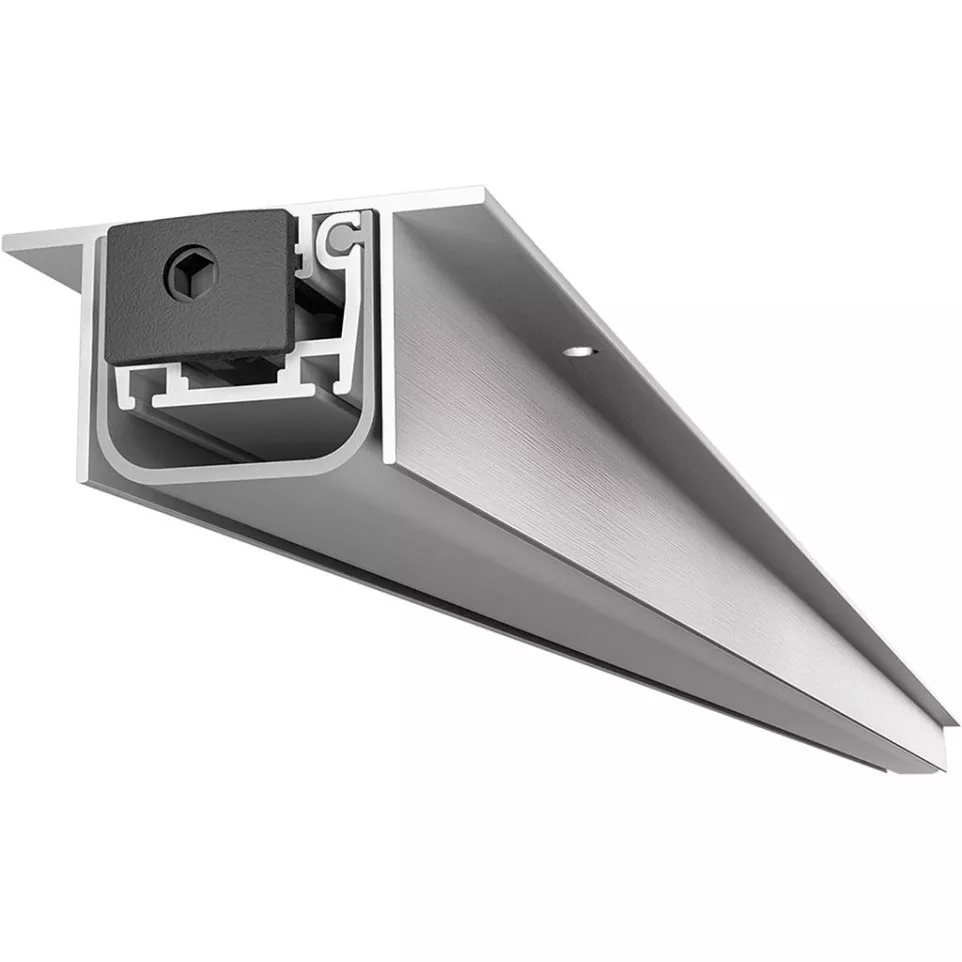

Aluwing Automatic Skirting Board CCE 3920 830mm per piece

Product

The CCE ALUWING 3920 Automatic Baseboard, 830mm length, is designed for aluminum and armored doors, providing seamless floor sealing when the door closes to minimize drafts, noise, and dust infiltration.

Specifications

• Engineered with rigid glass fiber-reinforced nylon linkages for maximum efficiency and uniform pressure across all flooring types
• Incorporates a mono-extruded, fire-retardant thermoplastic seal
• Features a rounded nylon push button, adjustable with a 3mm hex key
• Attaches via screws (not supplied) to external profile flanges
• Can be shortened by a maximum of 150mm

Usage

When the door is closed, the rounded push button is compressed against the frame or an external stop, activating an internal mechanism that brings down the internal mobile sealing profile in a precise guillotine motion. The seal makes consistent contact with the entire floor width, effectively covering the gap beneath the door.

FAQ

1. What type of doors is this baseboard suitable for?
   It is intended for aluminum and armored (security) doors.

2. How is the automatic sealing action triggered?
   The mechanism is activated by a rounded nylon push button compressed against the door frame or stop as the door closes.

3. Is the length of the baseboard adjustable?
   Yes, it can be shortened by up to 150mm to fit the door width.

4. Are installation accessories included?
   Mounting screws are not provided and should be sourced separately.

5. What tool is required for push button adjustment?
   Adjustment is made with a 3mm hex (Allen) key.
