Usage

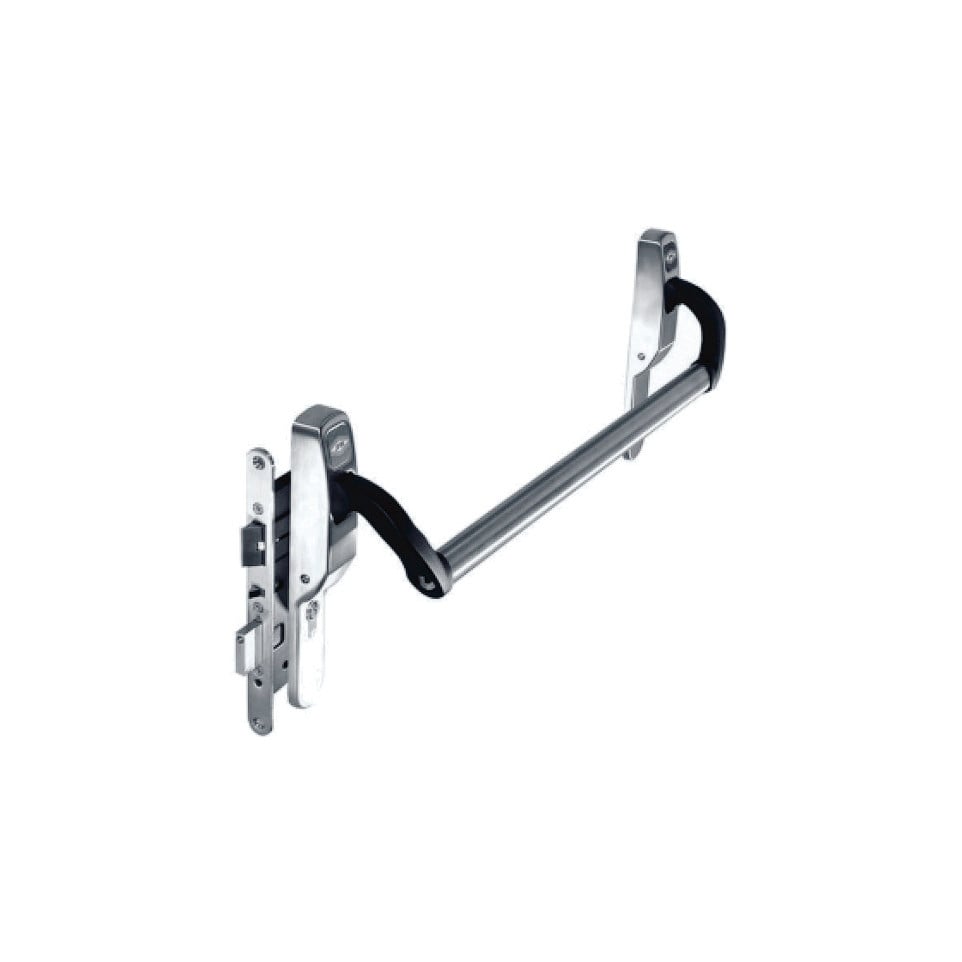

The JPM NORMA 900 mm panic bar is designed for installation on emergency exit doors equipped with a mortice lock (72 PZ), providing quick and safe egress in public or commercial buildings. Suitable for new projects or refurbishments.
Advantages
- Allows rapid exit in emergencies by a simple push action
- Compatible with mortice locks (72 PZ), enhancing flexibility
- Reversible design for left or right door applications
- Tough aluminum construction with silver lacquer finish offers corrosion resistance
- Slim profile minimizes projection for improved corridor clearance; does not include the cylinder lock mechanism (sold separately)
Specifications
- Panic bar crafted from painted aluminum, adjustable down to lengths as short as 300 mm; supplied at standard length of 900 mm
- Conforms to EN1125:2008 standards ensuring compliance with European regulations and certified ICIM CE marking

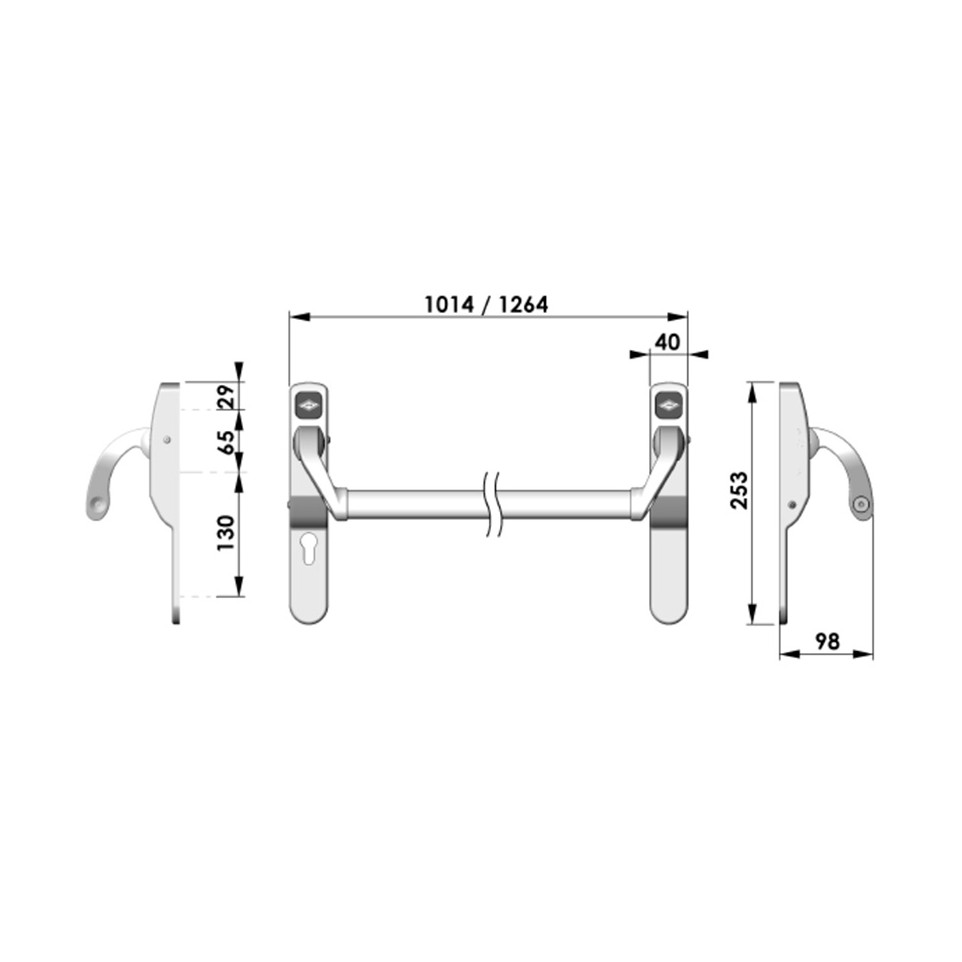

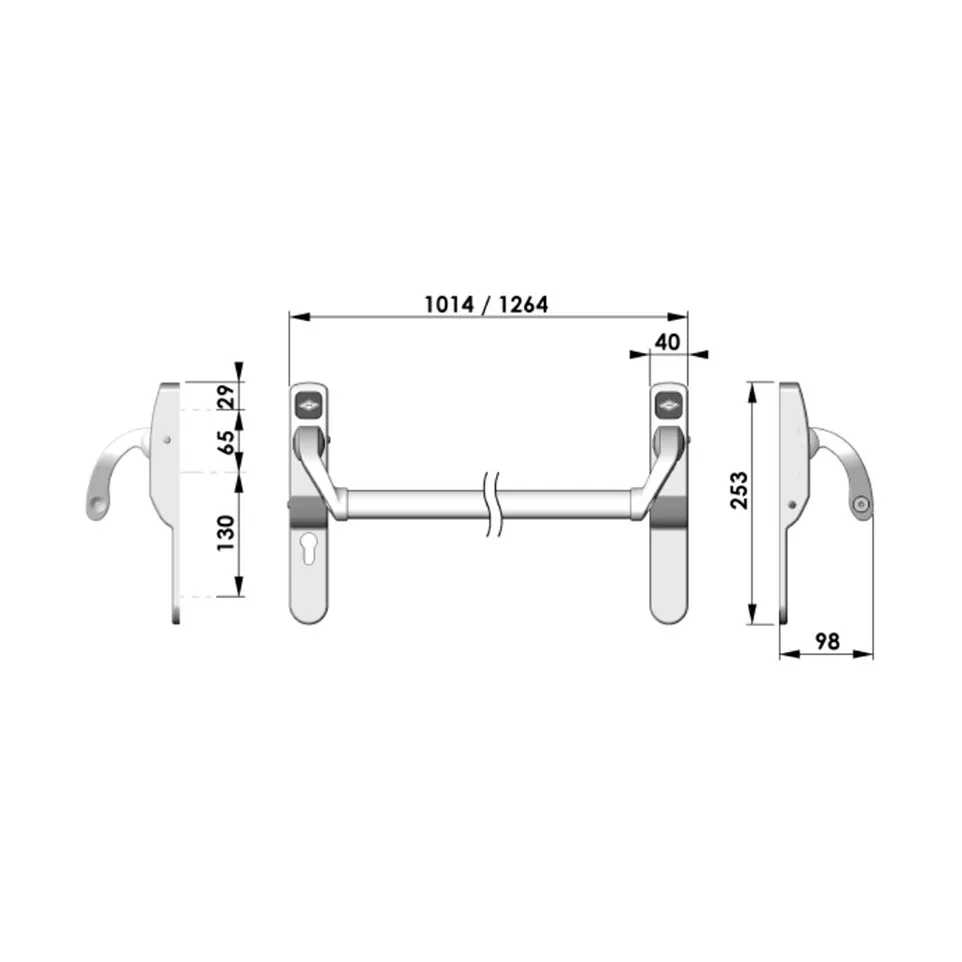

- Total width: approximately bar length +122 mm; weight: approx. 0.8 kg per unit
- Covers and internal galvanized steel parts suitable for use on fire-rated doors; quick disassembly cover design allows easy maintenance without screws
How it works
The user pushes the horizontal touch bar to disengage the latch, unlocking the door instantly from inside during an emergency. The device is reversible, installs directly onto most standard single-leaf doors fitted with compatible mortice locks—no need to unlock manually under pressure situations.
