Usage

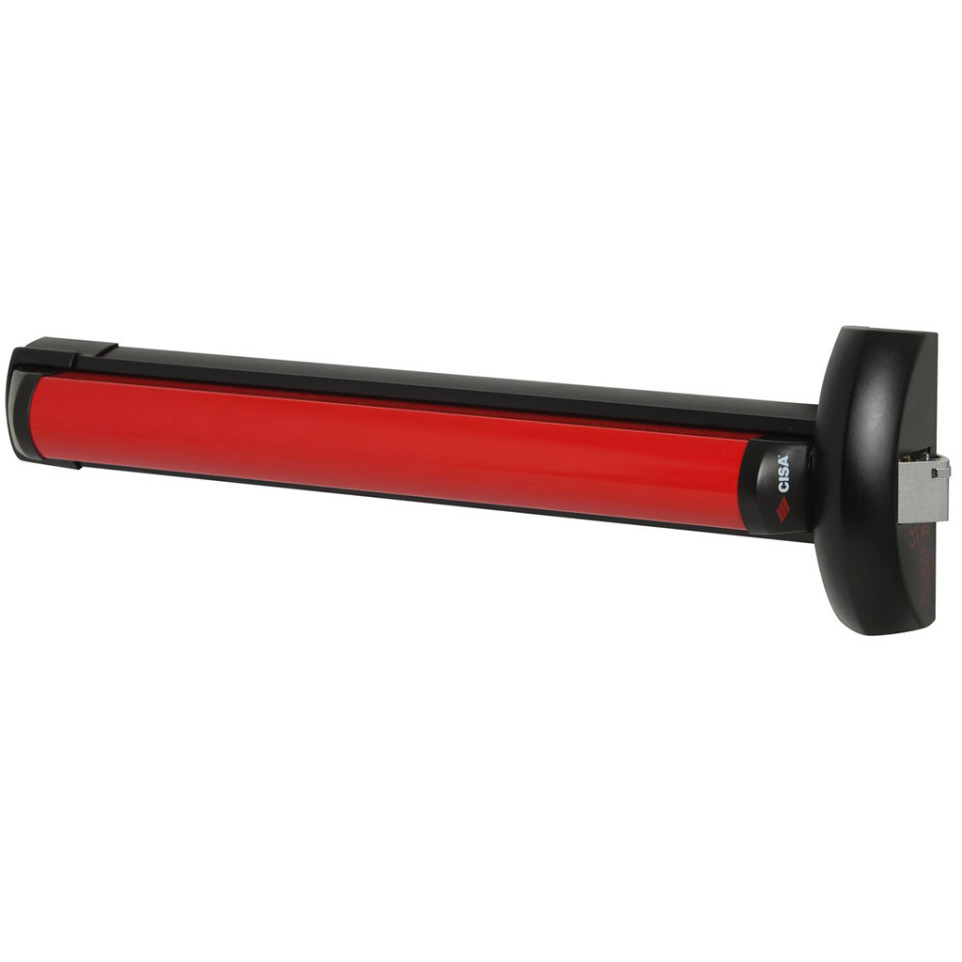

The CISA Fast Touch 840 mm rim panic bar is designed for secure and rapid emergency exit on public or commercial doors. Suitable for wood, metal, PVC, and composite door types in high-traffic environments.
Advantages
- Quick installation with clip-on cover and spring mechanism—no screws required
- Certified to EN 1125 standard for emergency exits; CE marked
- Tested up to 500,000 cycles on doors weighing up to 400 kg for long-lasting reliability
- Low operating noise thanks to cable-operated additional locks
- Sleek red and black design ensures aesthetic continuity in various architectural settings
Specifications
- Materials: Painted aluminium/aluminium alloy cover; painted steel bar adjustable from standard length down to as short as 300 mm if needed[1][2]
- CERTIFICATIONS: EN1125 compliance, CE-marked; suitable for use on fire-rated doors[1][3]
- CYCLE TESTING: Exceeds regulatory performance—tested over half a million open/close cycles with heavy-duty usage (doors up to 400 kg)[1][3]
- Differentiating Features: Modular system compatible with accessories such as external locks; interchangeable components between PUSH and TOUCH ranges; antibacterial finish option available[1]
How it works
The user pushes against the horizontal steel bar in the event of an emergency, instantly releasing the door’s lock mechanism. The device can also be operated from outside using a key or handle when configured accordingly.
