Abloy EL566 Handle Controlled Multipoint Solenoid Lock 55/72 12-24V DC One-Sided...
€1,589.18
Usage

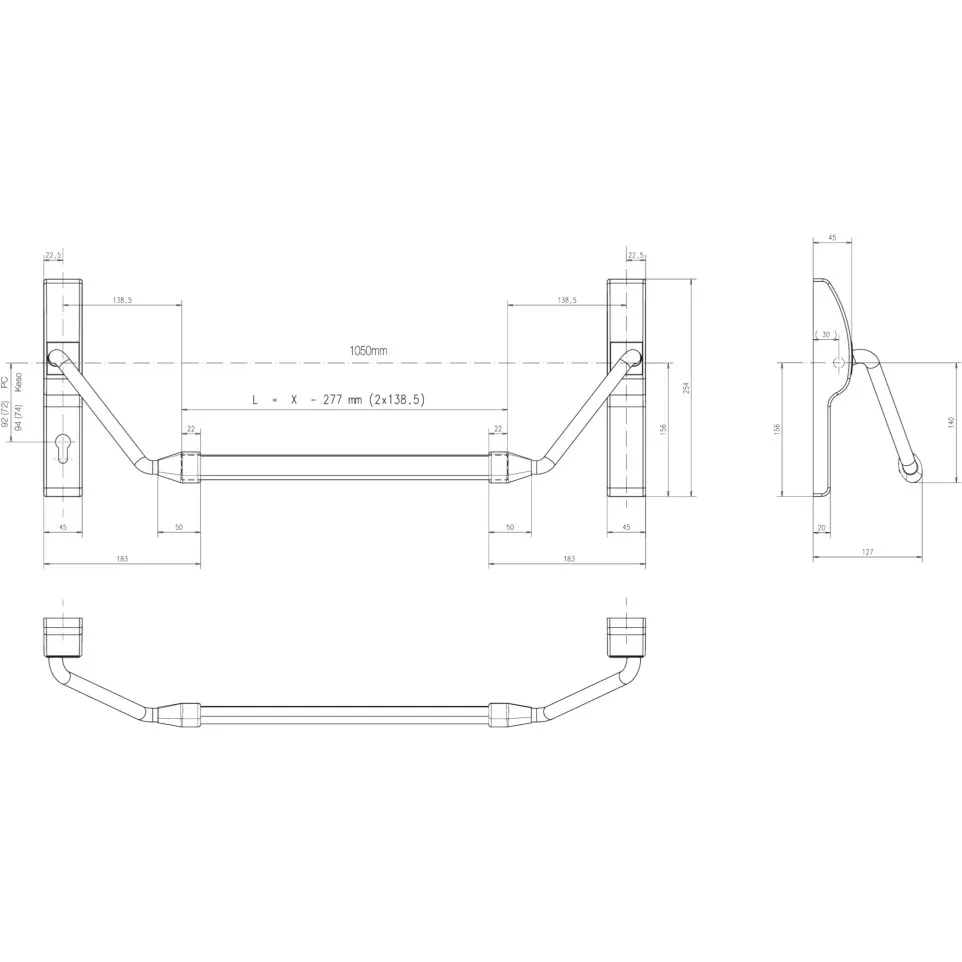

The Assa Abloy 8000 series panic bar in stainless steel and black is designed for secure, rapid emergency exit from public or commercial buildings, compatible with mortise locks featuring a 72 mm PZ center distance.
Advantages
- Constructed in brushed stainless steel for high durability and corrosion resistance.
- Sleek, modern design integrates into diverse environments and door types.
- Complies with EN 1125 safety standard for panic hardware on escape routes.
- Push bar length of 1000 mm can be cut down to fit various door sizes.
- Quick installation with included pins and fixing screws; external fittings available separately as needed.
Specifications
- Materials & Design: Brushed stainless steel push bar with a composite housing; black finish components provide visual contrast and added protection against wear.
Bar is field-adjustable in length (up to approx. 1000 mm). - Lifespan & Certification: Certified according to EN 1125 for use on emergency exits.
Designed for high-traffic environments such as schools, offices, theaters, or sports halls.[1][10] - Tangible Performance: Suitable for doors equipped with a mortise lock at a center distance of 72 mm PZ.
Classified under EU standards for high corrosion resistance (Class 3) and operational reliability.[1][10] - Differentiating Features: Modular construction allows adaptation to different installation needs.
Non-handed device—suitable for left- or right-opening doors. Simple maintenance thanks to fast disassembly cover design.[10]
How it works
The panic bar installs horizontally on the interior side of an escape door. In an emergency, pressing the bar releases the latch mechanism associated with the mortise lock (72 mm PZ), unlocking the door instantly so occupants can exit quickly without keys or prior training.[1][10]
