SHARK 396SHEM1 Proximity Key Fob KRN1000 per piece
€6.02
In stock
Product

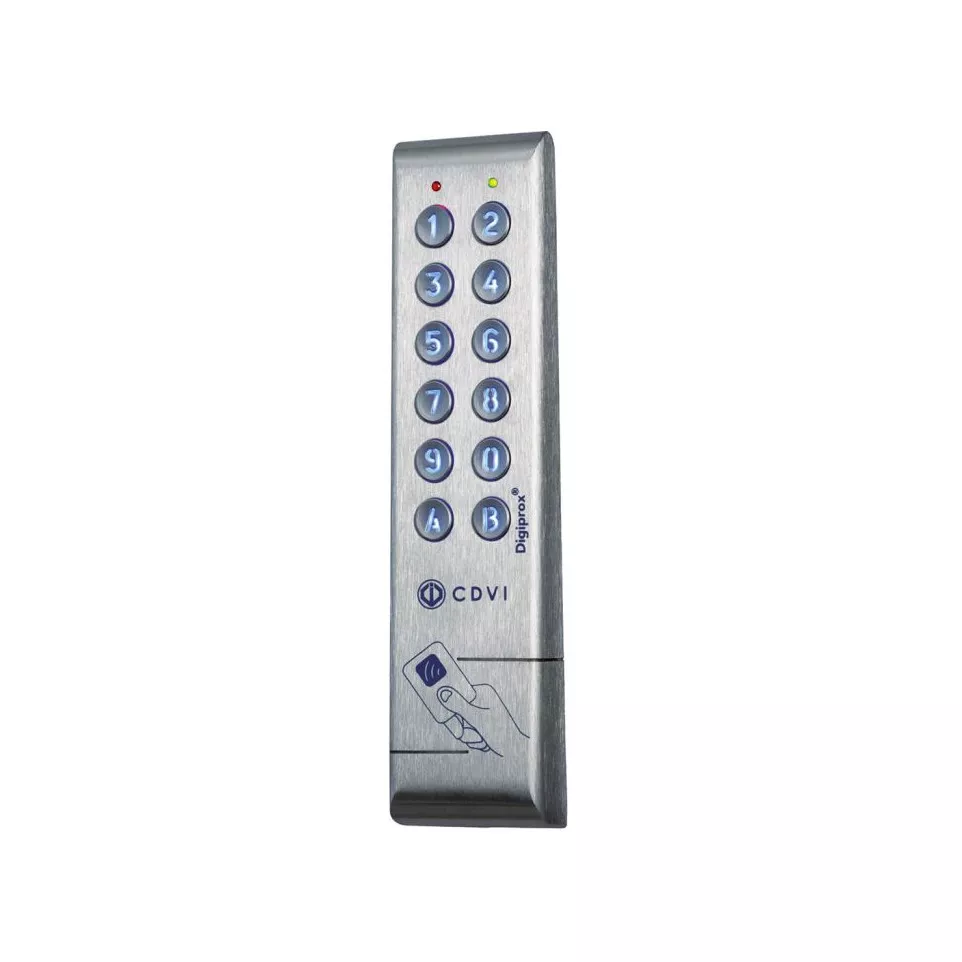

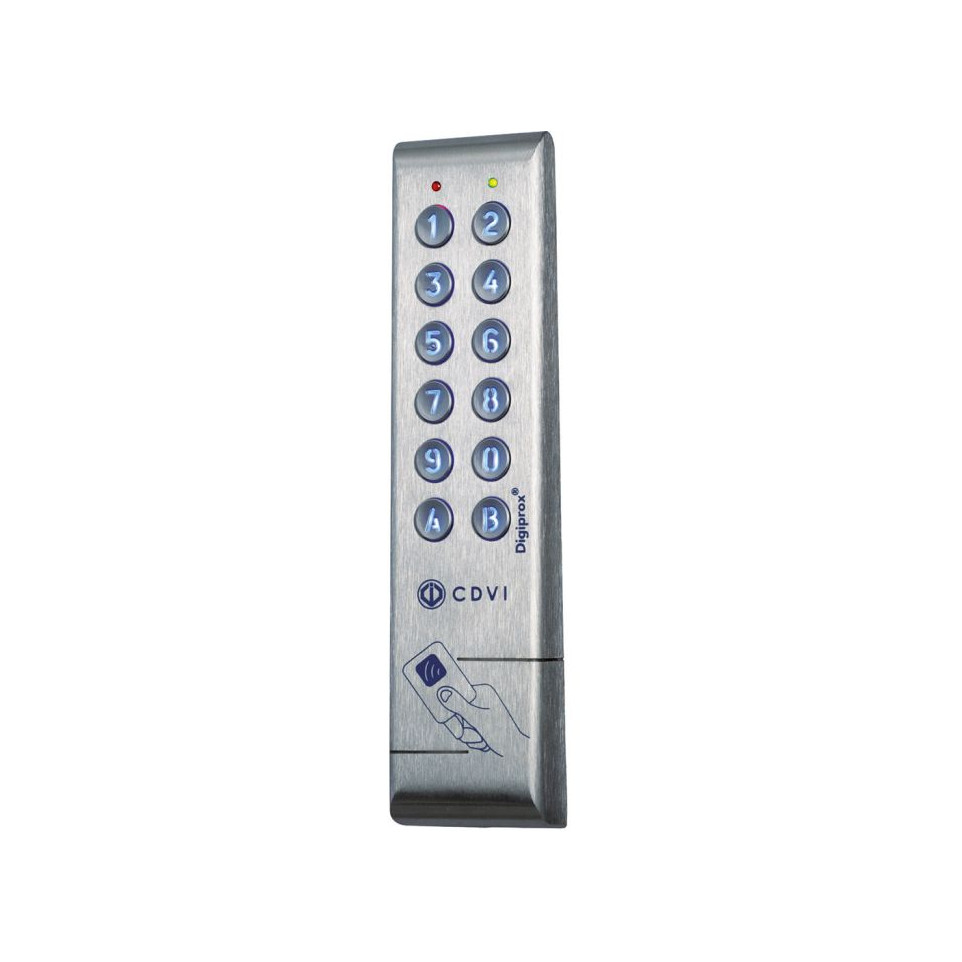

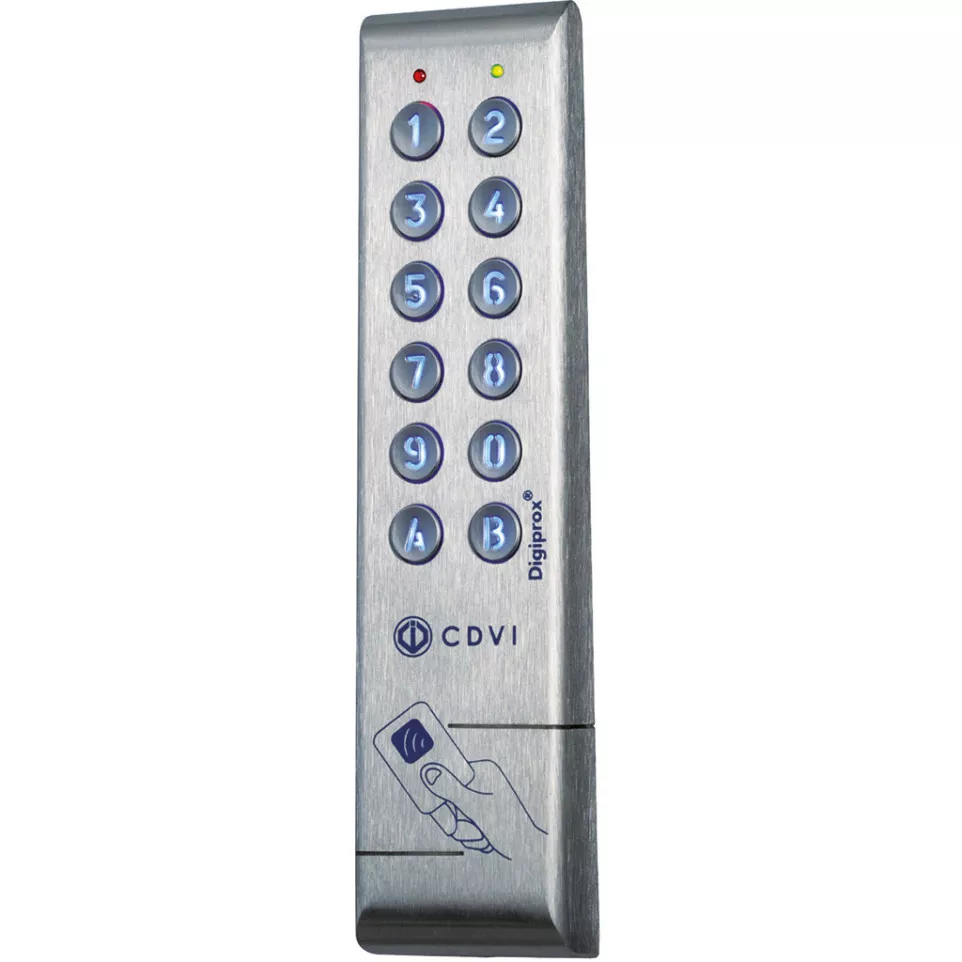

Robust proximity reader and code keypad by CDVI, combining 125 kHz RFID card reading with PIN access for secure entry control. Designed for both indoor and outdoor use, ideal for narrow spaces on aluminum profiles.
Specifications
- Stainless steel construction, dust and vandal resistant, compact dimensions (190 x 43 x 27 mm)
- Sealed electronic board with epoxy for increased weather resistance, operates from -30°C to +60°C
- Visual (multi-colored LEDs) and audible signaling, back-lit keypad
- Dual technology: 125 kHz proximity reader + code keypad (Digicode®), supports Wiegand output
- 12 V DC power, 120 mA consumption, molded cable (2.9 m length), surface mount with Diax® screws
Usage
Present an authorized proximity badge or enter a PIN on the keypad to trigger access. The device provides light and sound feedback for every operation. Its slim profile suits installations on mullions or narrow door frames, and it is compatible with common Wiegand-based access control systems.
FAQ
-
Is this device suitable for outdoor installation?
Yes, it is dust, weather, and vandal resistant, making it suitable for outdoor and harsh environments. -
What access methods are supported?
You can use either a 125 kHz proximity card or enter a security code via the keypad. -
What is the read range for proximity cards?
The typical read range is up to 7.5 cm (3 inches). -
How do I mount the device?
It is designed for surface mounting, ideal for use on narrow door frames or aluminum profiles, and comes with a molded 2.9 m cable. -
Which access control systems is it compatible with?
It uses the Wiegand output protocol, compatible with a wide range of standard access control systems.
