Complete Double-Action Arm Kit for Dorint 750 and 840 per piece
€43.04
In stock
Usage

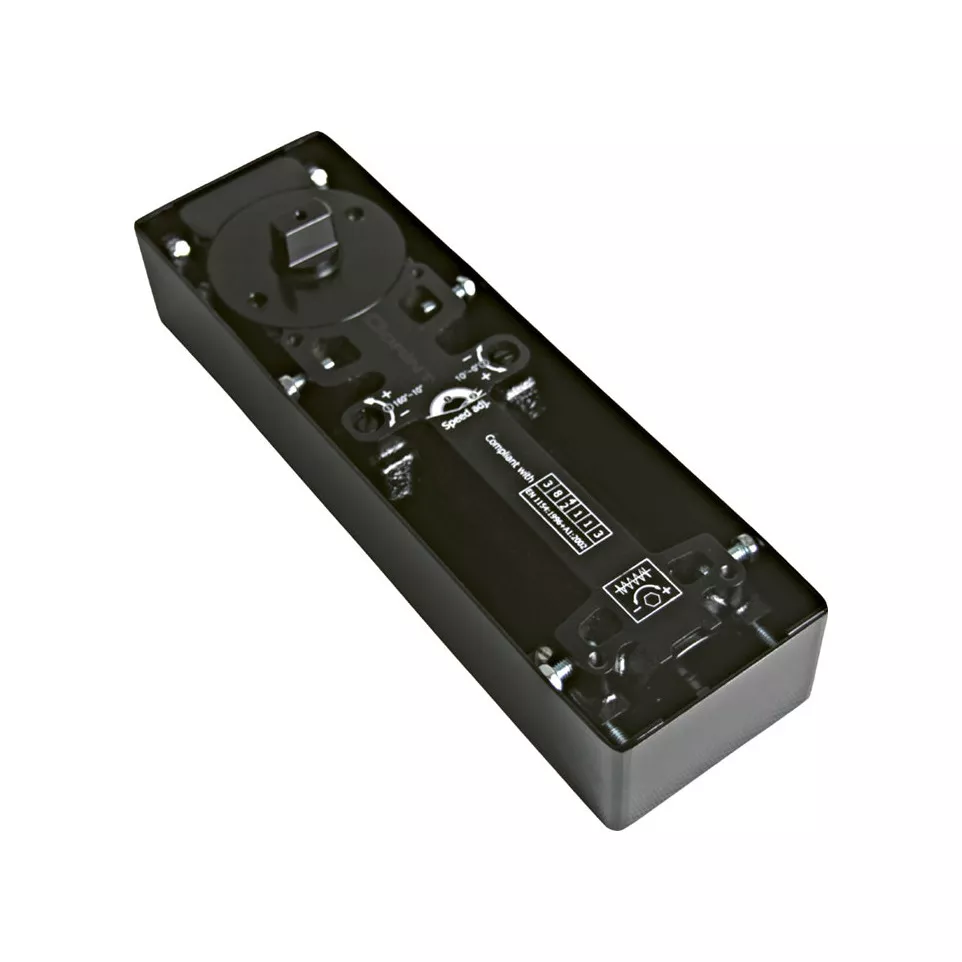

The Pivot de sol Dorint BTS 750 EN 1-4 with 90° hold-open, axle, and plate is designed for concealed floor installation on interior swing doors, providing reliable closure and discrete operation in commercial or residential settings.
Advantages
- Concealed in-floor design preserves the door’s aesthetic with no visible hardware.
- Double action: allows doors to open both inward and outward up to a maximum angle of 160°.
- Adjustable closing speed and final latch easily accessible for precise control.
- Supports heavy doors with a leaf width up to 1,100 mm and weight up to 200 kg.
- No fire protection certification (not suitable for fire-rated applications).
Specifications
- Robust stainless steel housing; dimensions: 85 x 274 x 50 mm; supplied as a complete set including axle and cover plate.
- Complies with EN1154 standard (adjustable strength EN size 1–4); suited for frequent use in busy environments[1][3].
- Suits door leaves up to 200 kg; maximum width 1,100 mm; adjustable closing cycle from 160° down to closed position[1].
- Features last stroke action (“à-coup final”), late close function, accessible adjustment screws, and selectable stop at 90° opening[1].
How it works
This concealed floor pivot mounts beneath the door. The integrated mechanism controls the opening/closing speed through accessible adjustments. The double-action feature enables smooth operation in both directions, while the built-in hold-open function secures the door at a fixed angle if desired.
