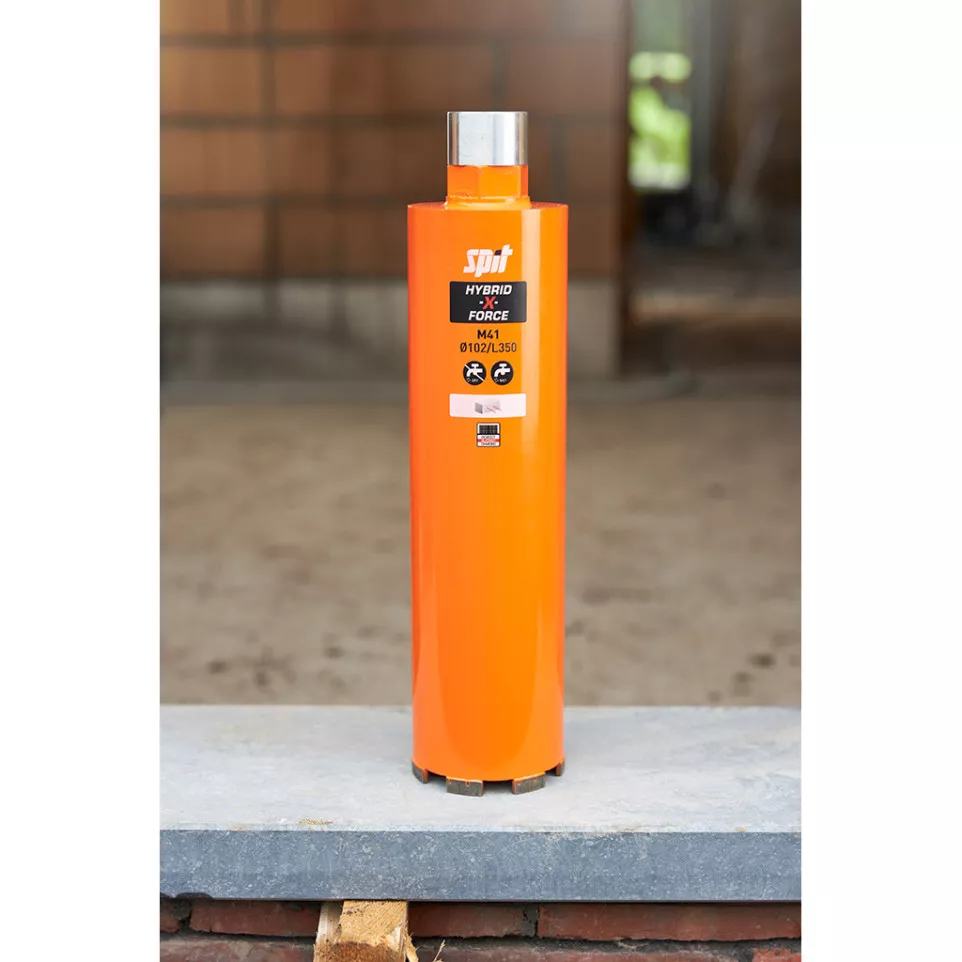

Spit Hybrid X-Force Core Drill Bit M41 Ø62x350mm per piece

Usage

The Trépan Spit Hybride X-Force M41 Ø62x350mm is designed for precise dry drilling in hard materials such as reinforced concrete, granite, bricks, and stone. Ideal for construction professionals working on installations requiring clean, accurate holes.

Advantages

• Hybrid diamond technology enables efficient cutting through highly abrasive and reinforced materials.
• Optimized segment design reduces vibration and improves control during drilling.
• Laser-welded segments offer high durability under demanding site conditions.
• M41 threaded connection ensures secure fit with compatible drilling machines.
• The extended length (350mm) increases versatility for deep hole applications; less suitable for extremely thin surfaces due to size.

Specifications

• Segmented diamond core with hybrid matrix enhances cutting speed and lifespan in both concrete and masonry applications.
• Tough steel body with laser-welded joints ensures corrosion resistance and long service life even under continuous use.
• Bore diameter: Ø62mm; total length: 350mm; thread type: M41. Suitable for dry drilling up to specified depth without water cooling when required by the substrate hardness or thickness.
• Differentiates itself by combining advanced segment geometry with multi-material capability, reducing the need to switch tools between jobsites or substrates.

How it works

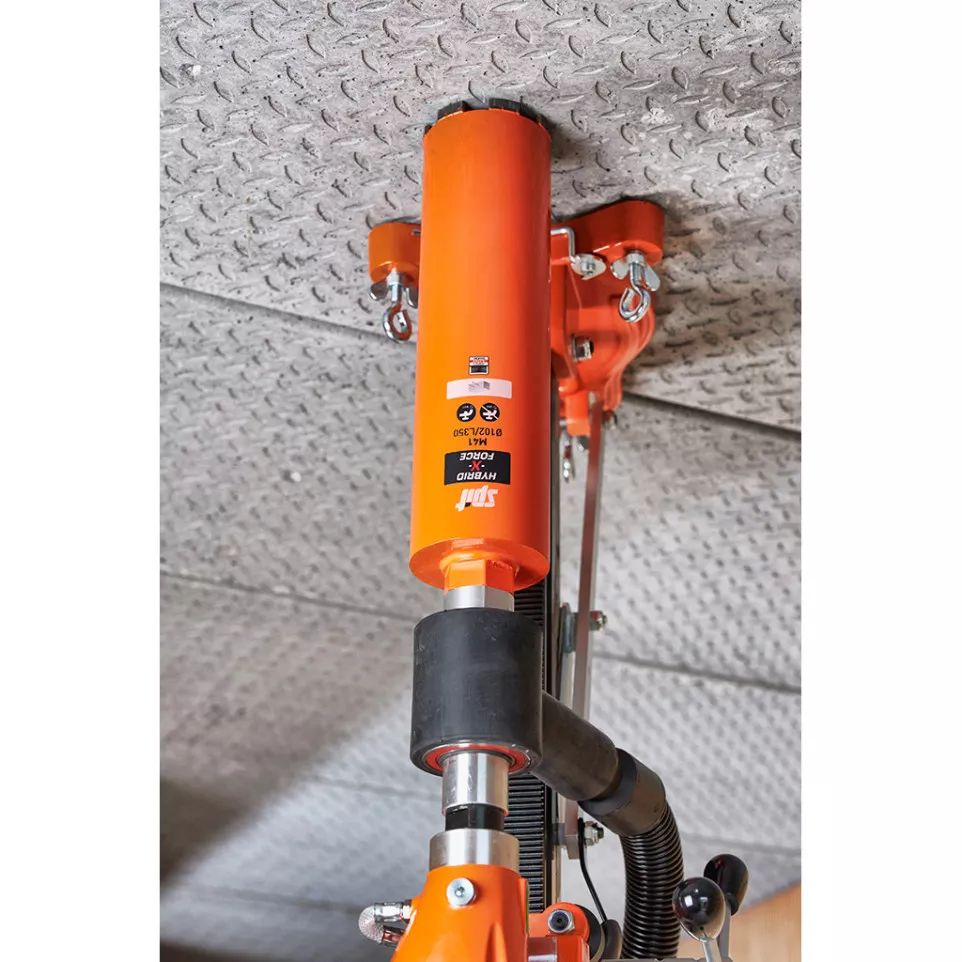

This crown uses a high-performance hybrid diamond segment mounted on a robust steel barrel. Attached via an M41 thread to a compatible core drill, it produces clean holes rapidly by grinding through mineral aggregates without excessive heat buildup or tool wear. No pilot bit required; simply position the tool at low speed for optimum performance on your chosen surface.
