Usage

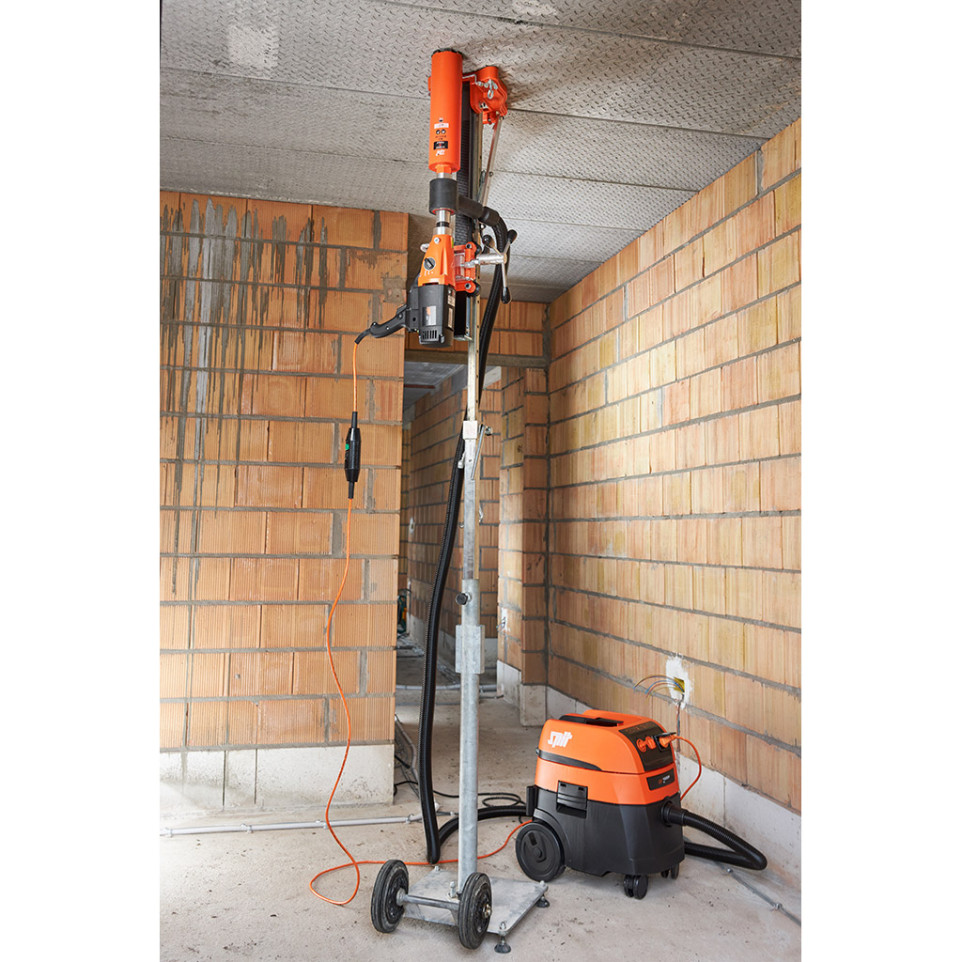

The Trépan Spit Hybride X-Force M41 Ø112x350mm is designed for creating large-diameter holes in hard construction materials such as reinforced concrete, masonry, and stone. It is commonly used with professional core drilling equipment on job sites.
Advantages
- Suitable for dry or wet drilling thanks to its hybrid bonding technology
- High drilling speed and efficiency in reinforced concrete and abrasives
- Optimized segment design for extended service life and less vibration
- M41 connection ensures compatibility with a wide range of core drills
- The overall length of 350mm allows deep drilling in a single pass; size may require powerful equipment to operate effectively
Specifications
- Design: Hybrid diamond segments are laser-welded onto a robust steel crown with an M41 thread. Diameter: Ø112mm; Working length: 350mm.
- Durability: Laser welding provides strong segment retention; suitable for both intermittent (dry) and continuous (wet) use. Segment hardness prolongs operational life, reducing replacement frequency.
- Performance: Capable of penetrating high-strength materials rapidly—average lifespan exceeds many standard crowns under equivalent conditions (number varies by substrate but typically surpasses traditional electroplated designs).
- Differentiating Features: Universal fit via M41 mount; balanced hybrid bond offers both speed and longevity; engineered to minimize vibration during operation.
How it works

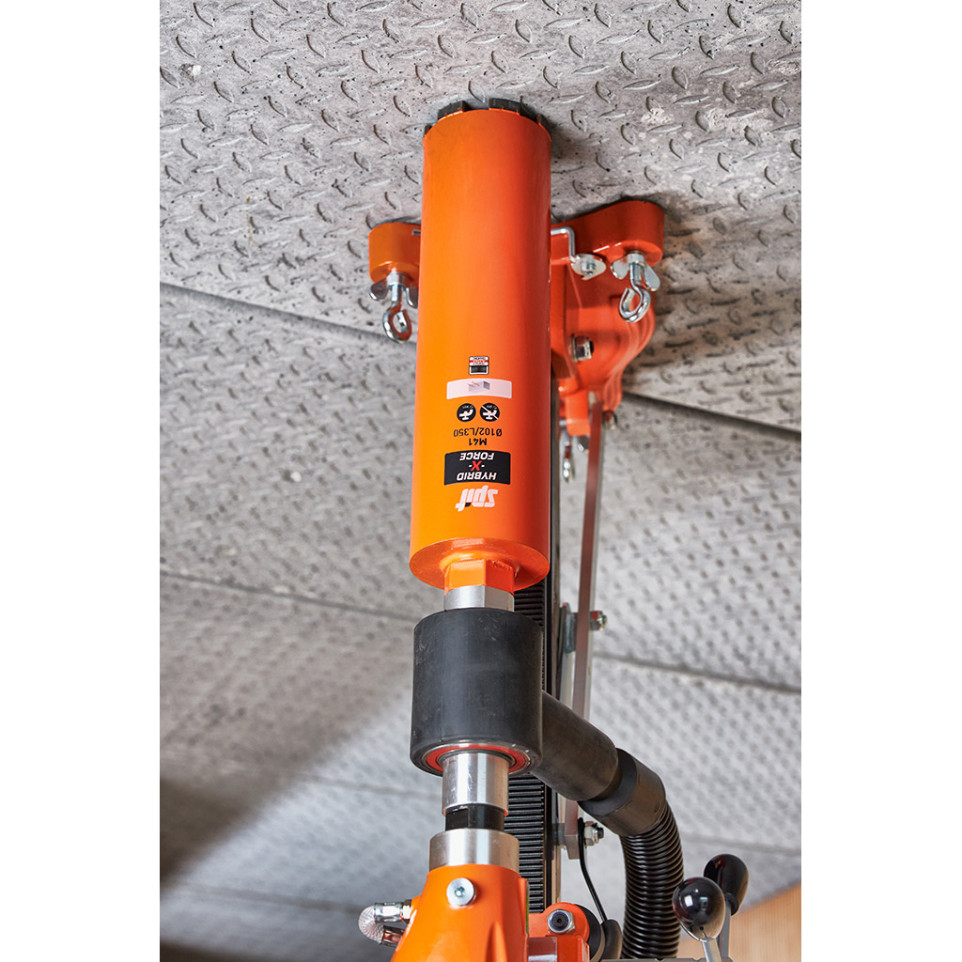

This diamond crown attaches securely to compatible drill motors using the M41 thread. The operator positions the tool against the target surface, then starts drilling at moderate speed—hybrid-bonded segments cut efficiently through tough substrates, either dry or cooled with water for improved dust control and longer bit life.
