Usage
The Trépan Spit Hybride X-Force M41 Ø92x350mm is designed for dry or wet core drilling in hard construction materials, such as reinforced concrete, stone, or masonry. Suitable for creating large-diameter openings during installation and renovation work in the building trades.
Advantages
- Hybrid diamond technology enables efficient penetration of both abrasive and reinforced substrates.
- M41 shaft ensures stable coupling with compatible core drilling machines.
- Large diameter (92mm) ideal for pipe passages and ductwork installation.
- Robust build reduces vibration, supporting precise cutting throughout extended use.
- Segmented design allows improved debris removal but may require cooling to maximize lifespan on especially dense materials.
Specifications

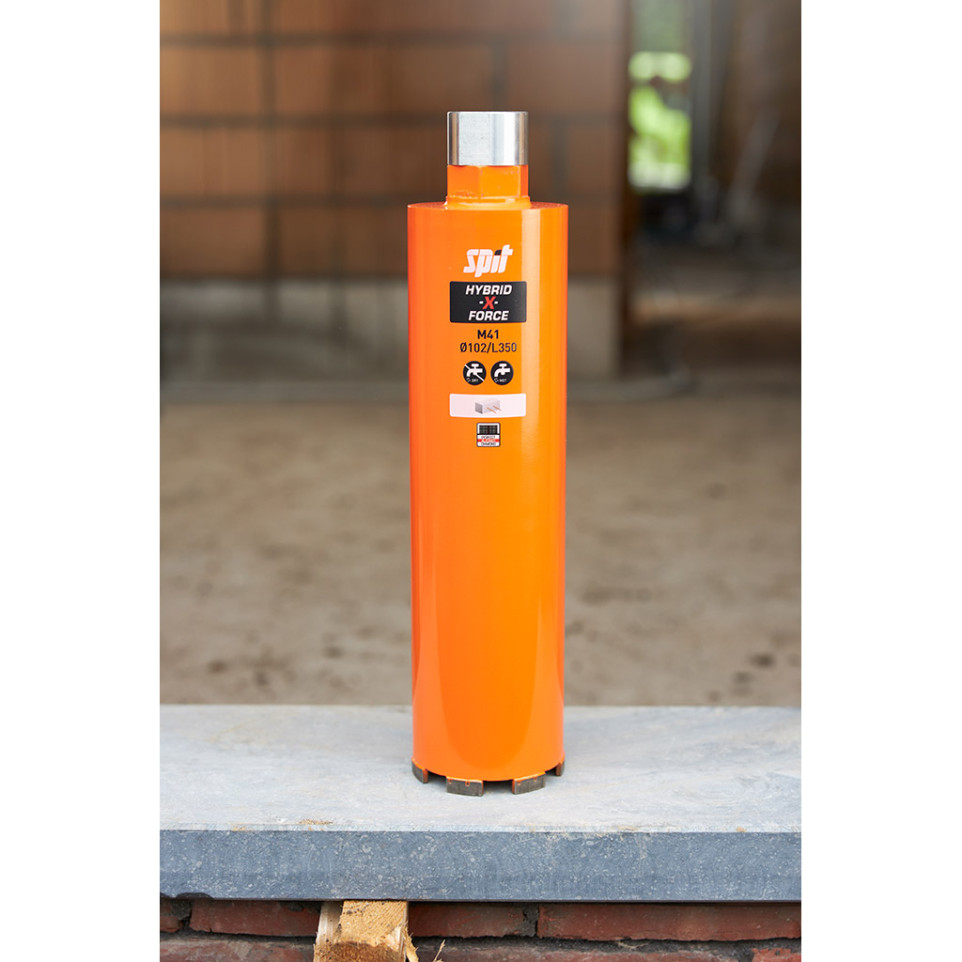

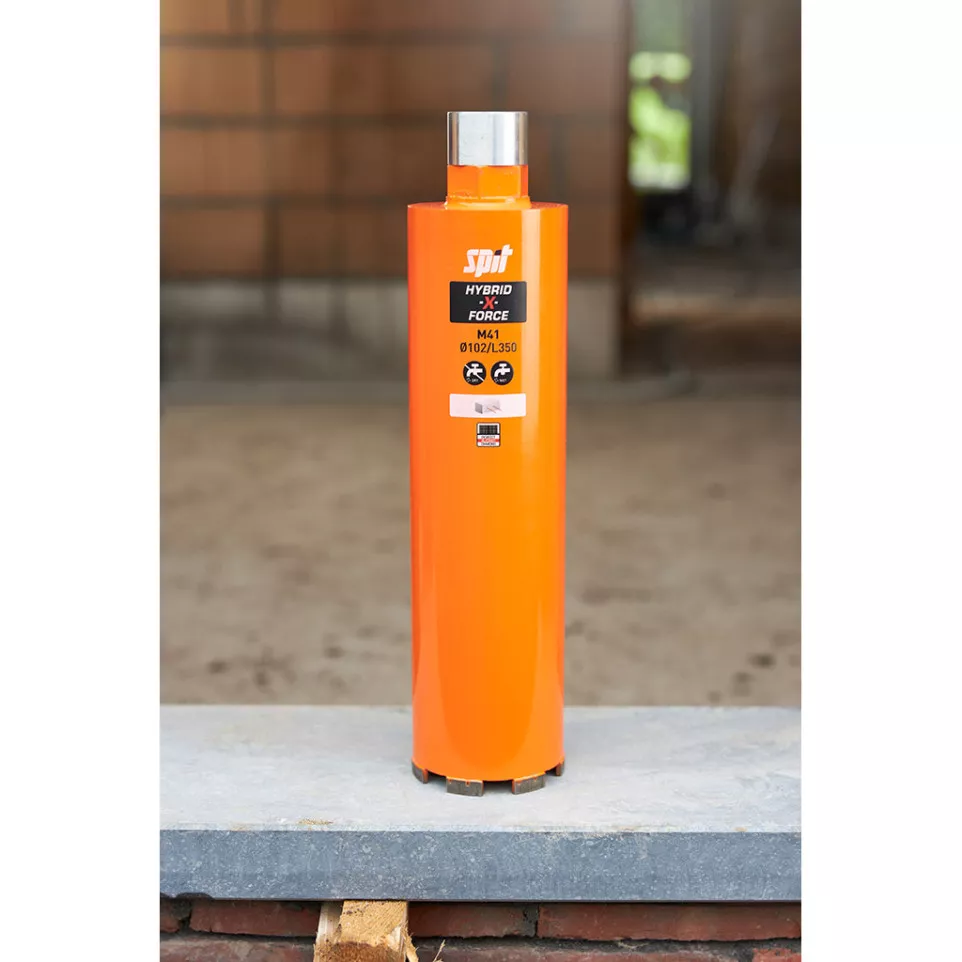

- Design: Diamond-segmented crown mounted on a durable steel cylinder; hybrid bond adapts to variable hardness within materials encountered on site.
- Shaft/Mounting: M41 thread provides secure attachment; compatible with most professional-grade diamond core drills accepting this standard connection size.
- Total Length: Core barrel length measures approximately 350mm, allowing deep coring applications without extension rods or multiple passes when working in thick walls or slabs.
- Bore Diameter: Nominal diameter of 92mm supports passage of pipes, ventilation ducts, conduit sleeves, and inspection openings according to standard building requirements.
How it works

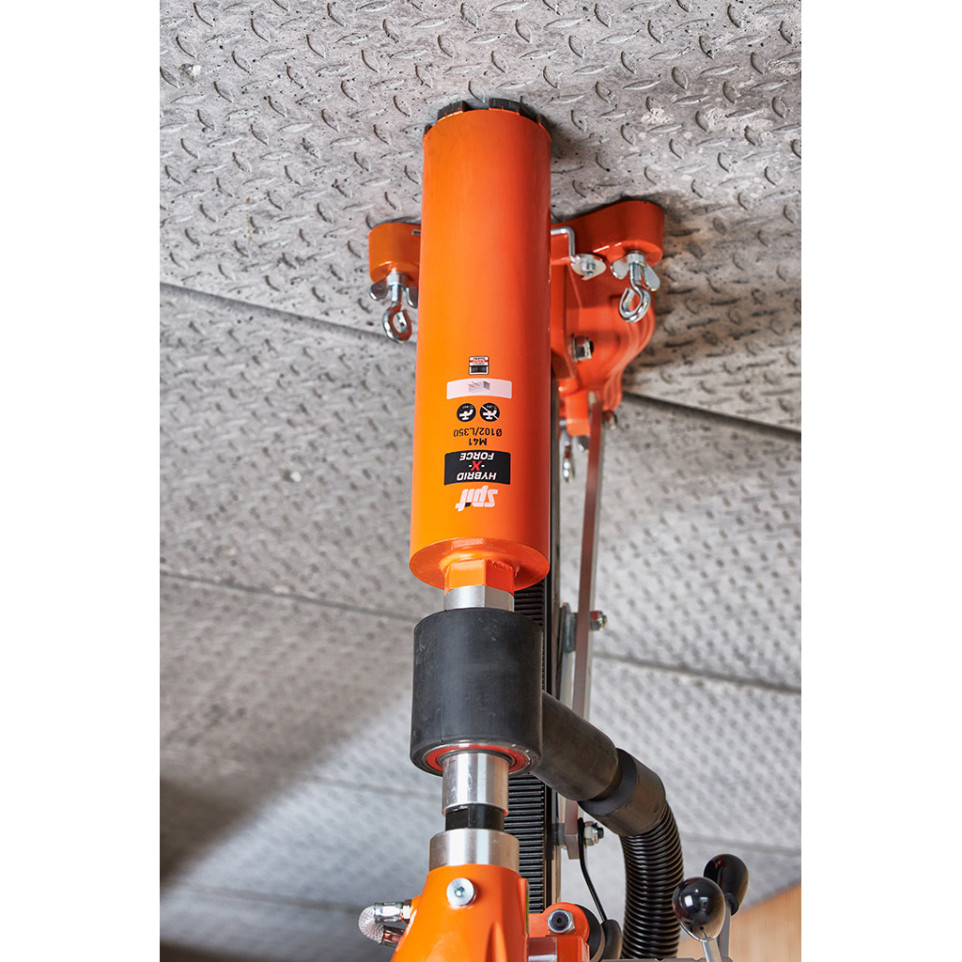

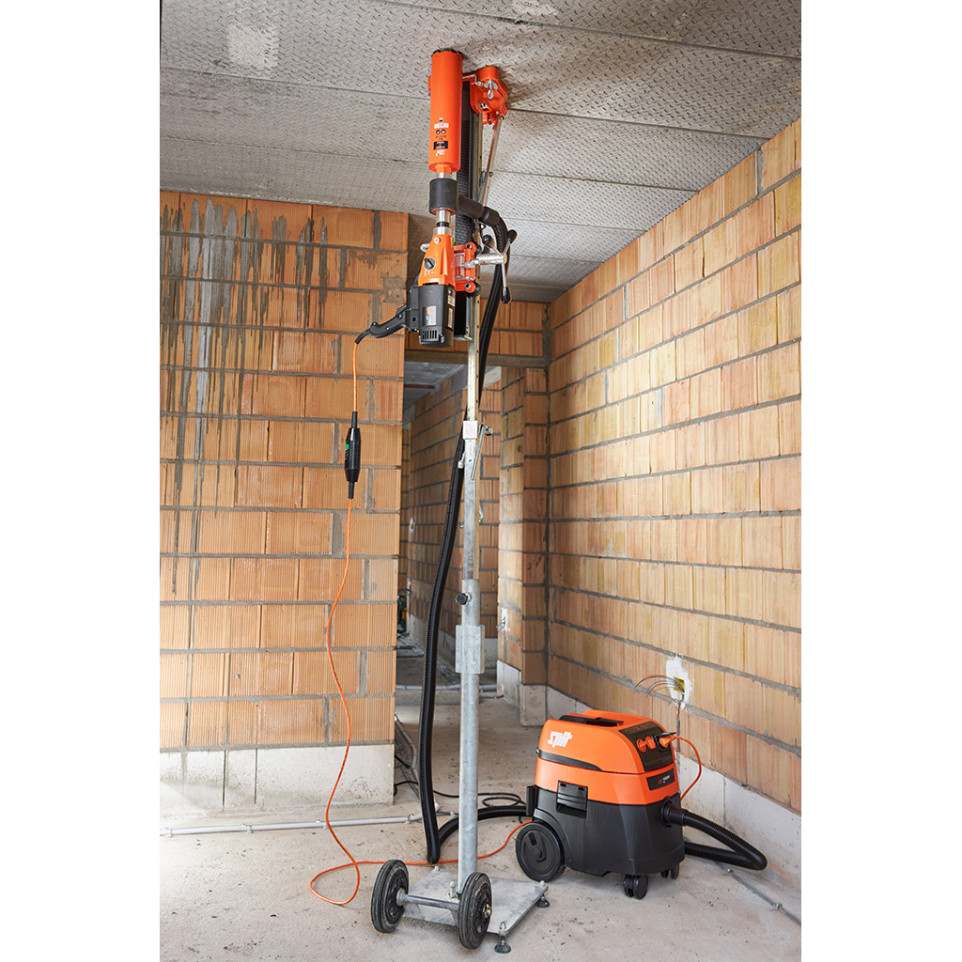

This diamond crown attaches securely to a compatible core drill via its M41 thread. As the tool rotates at moderate speed under controlled pressure—with water cooling recommended for extended life—the hybrid diamond segments grind through stone or concrete. Dust evacuates via segment gaps while the operator advances steadily until full penetration is achieved.
