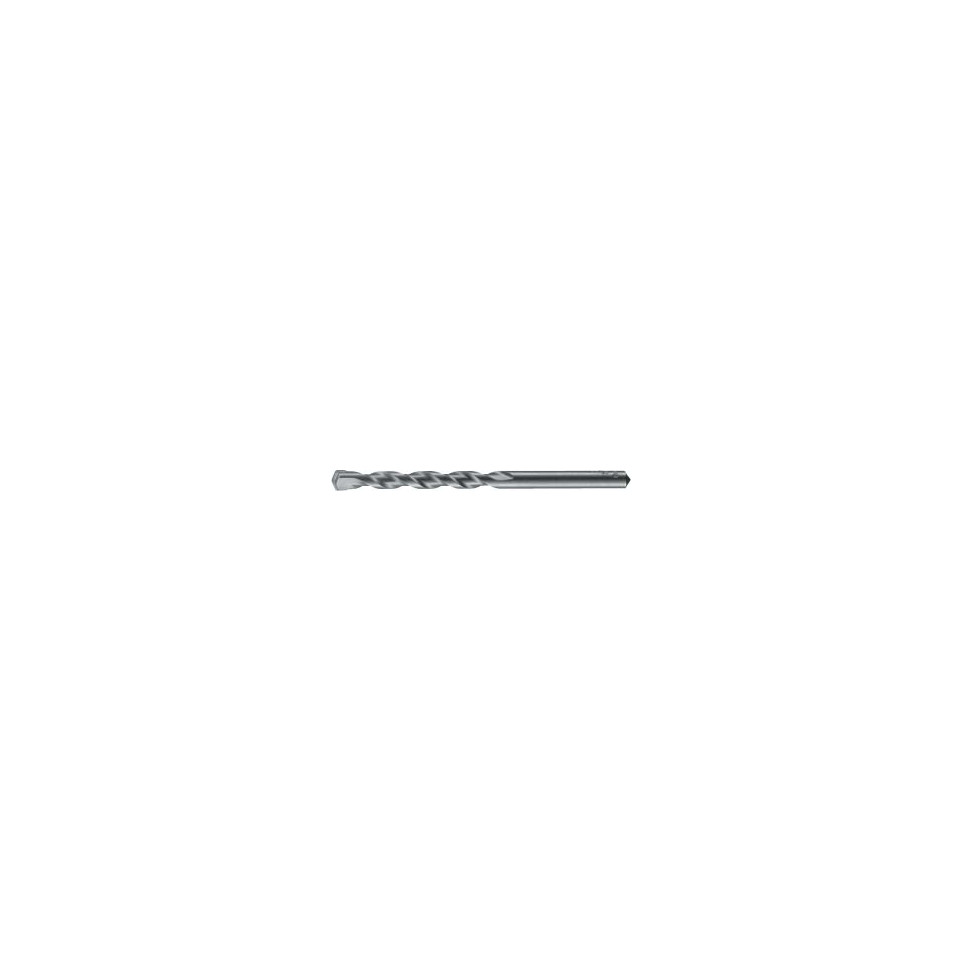

Carbide Drill Bit for Concrete and Stone 12mm Diameter per Piece

Carbide Drill Bit for Concrete and...

Estimated delivery date :  Tuesday 9 June
€12.86 HT
In stock

Ref : FGT-325673

Variantes

Carbide Concrete and Masonry Drill Bit 10mm Diameter per piece Carbide Concrete and Masonry Drill Bit 10mm Diameter per piece Carbide Concrete and Masonry Drill Bit Ø14mm per piece Carbide Concrete and Masonry Drill Bit Ø14mm per piece Carbide Concrete and Stone Drill Bit 10mm Diameter per piece Carbide Concrete and Stone Drill Bit 10mm Diameter per piece Carbide Concrete and Stone Drill Bit 8mm per piece Carbide Concrete and Stone Drill Bit 8mm per piece Carbide Concrete and Stone Drill Bit 8mm per piece Carbide Concrete and Stone Drill Bit 8mm per piece Carbide Drill Bit for Concrete and Stone 12mm Diameter per piece Carbide Drill Bit for Concrete and Stone 12mm Diameter per piece Carbide Drill Bit for Concrete and Stone 18mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 18mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 4mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 4mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 6mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 6mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 8mm Diameter per Piece Carbide Drill Bit for Concrete and Stone 8mm Diameter per Piece Carbide Drill Bit for Concrete and Stone Ø10mm per piece Carbide Drill Bit for Concrete and Stone Ø10mm per piece Carbide Drill Bit for Concrete and Stone Ø12mm per piece Carbide Drill Bit for Concrete and Stone Ø12mm per piece Carbide Drill Bit for Concrete and Stone Ø16mm per piece Carbide Drill Bit for Concrete and Stone Ø16mm per piece Carbide Drill Bit for Concrete and Stone Ø20mm per piece Carbide Drill Bit for Concrete and Stone Ø20mm per piece Carbide Drill Bit for Concrete and Stone Ø3mm / pc Carbide Drill Bit for Concrete and Stone Ø3mm / pc Carbide Drill Bit for Concrete and Stone Ø5mm per piece Carbide Drill Bit for Concrete and Stone Ø5mm per piece Carbide Drill Bit for Concrete and Stone Ø6mm per piece Carbide Drill Bit for Concrete and Stone Ø6mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

This carbide drill bit with a 12mm diameter is designed for drilling precise holes in concrete, natural stone, masonry, and limestone using percussion drills up to 1000 W. Ideal for installation of plugs and anchors.

Advantages

  • Carbide tip ensures effective penetration into hard materials such as concrete and stone
  • Brazed at high temperature for improved resistance to wear and impact
  • U-shaped milled helix allows rapid dust evacuation during drilling
  • Thick steel body provides enhanced flexural strength and durability
  • Wide carbide seating minimizes risk of tip chipping under load

Specifications

  • Toughened steel body with U-form milled spiral; brazed carbide tip according to DIN 8039 standards
  • Carries ISO 5468 certification; designed for use with percussion drills up to a maximum power of 1000 W[1][2][4]
  • Diameter: 12mm; overall length (typical for this range): approximately 160 mm; working length: approximately 100 mm[1][9]
  • Differentiating features include fast dust removal capability and high resistance to bending, ensuring stable operation even in dense materials[1][4]

How it works

The drill bit's robust carbide tip concentrates force on the material surface while the U-shaped spiral quickly channels debris away from the hole. This design enables efficient drilling in tough substrates when used with suitable rotary hammer or percussion drills.

See more

Product Details

Brand Bosch
Useful length (mm) 150
Tail size Ø (mm) 10
Total length (mm) 200
Diameter (mm) 12
FGT-325673
