Usage

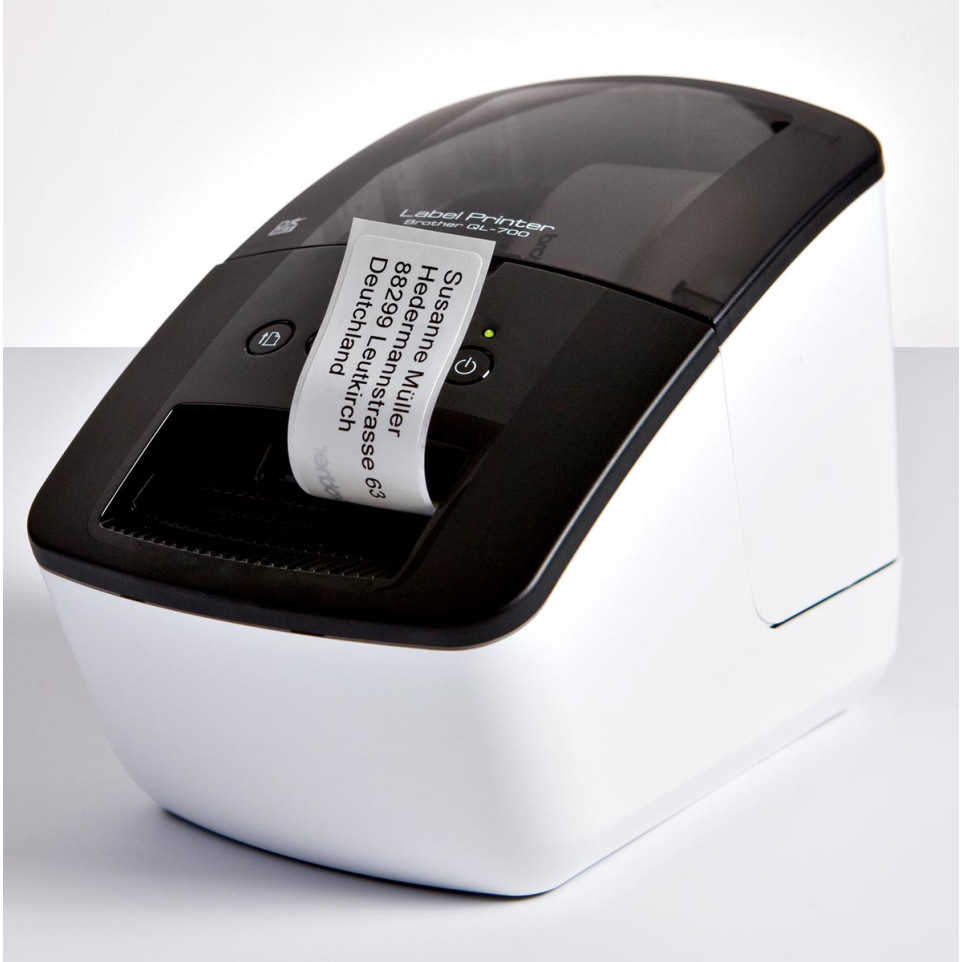

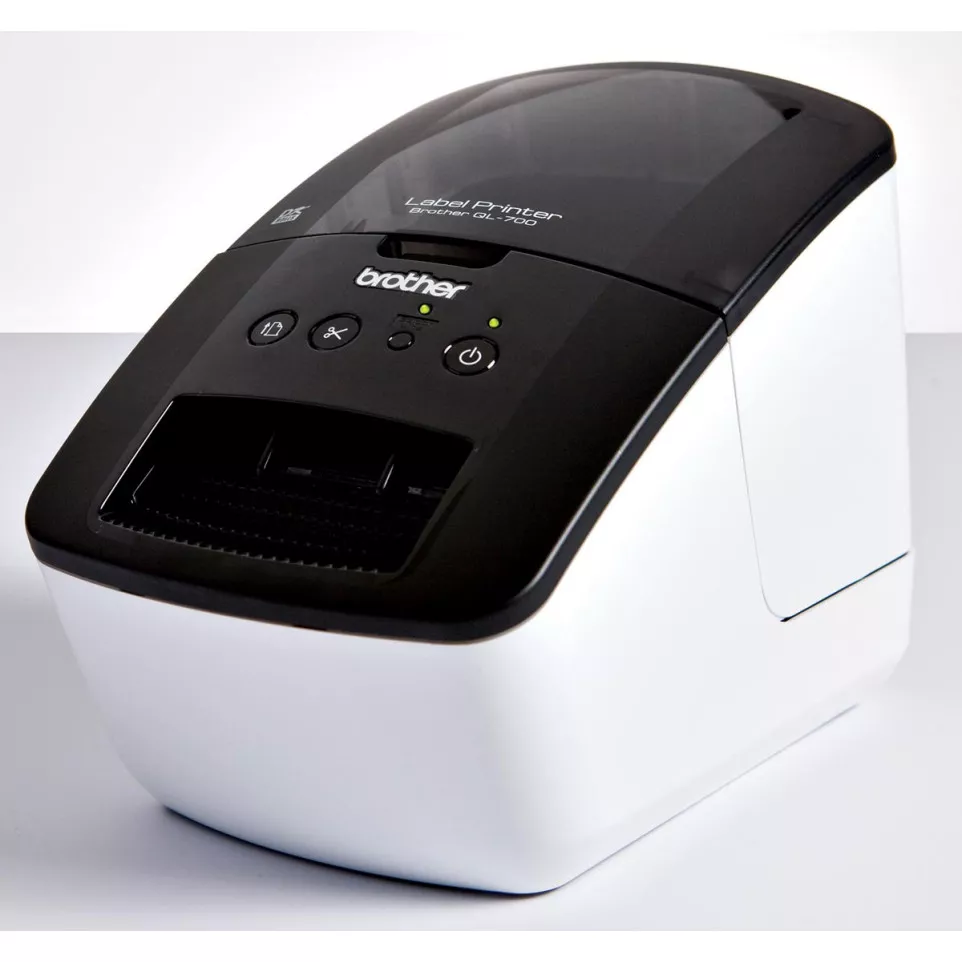

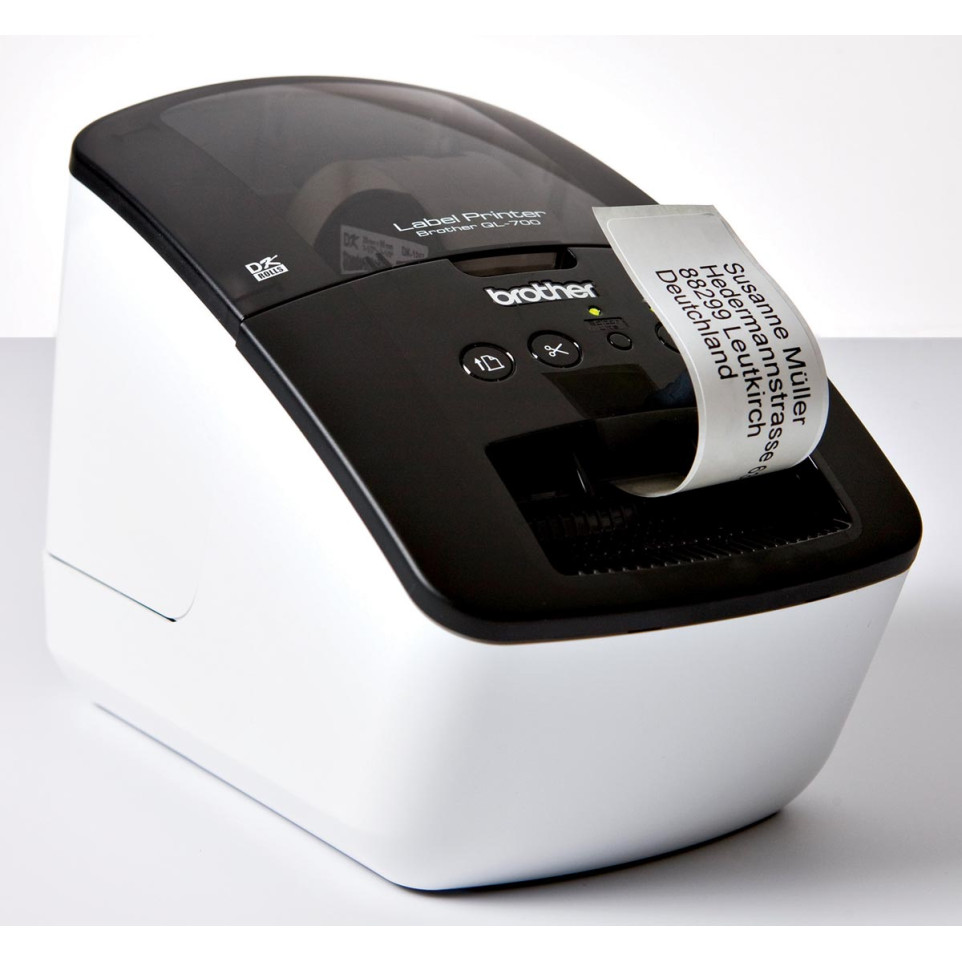

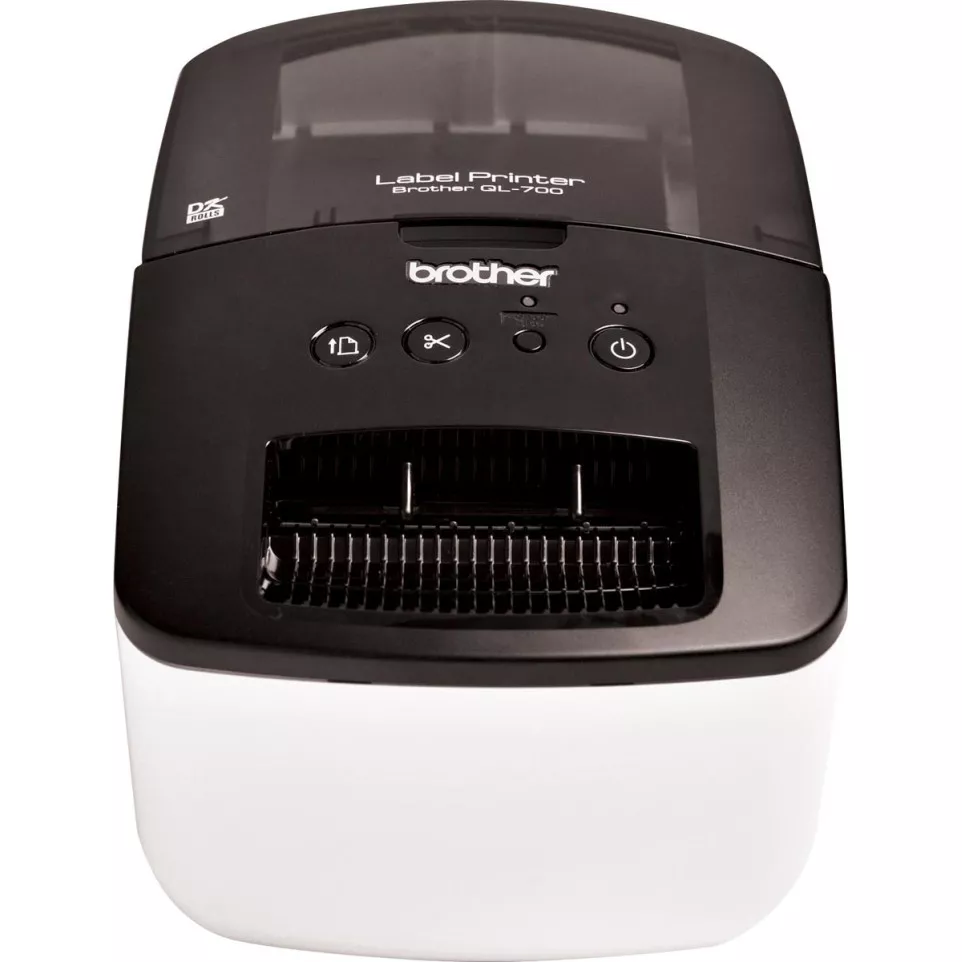

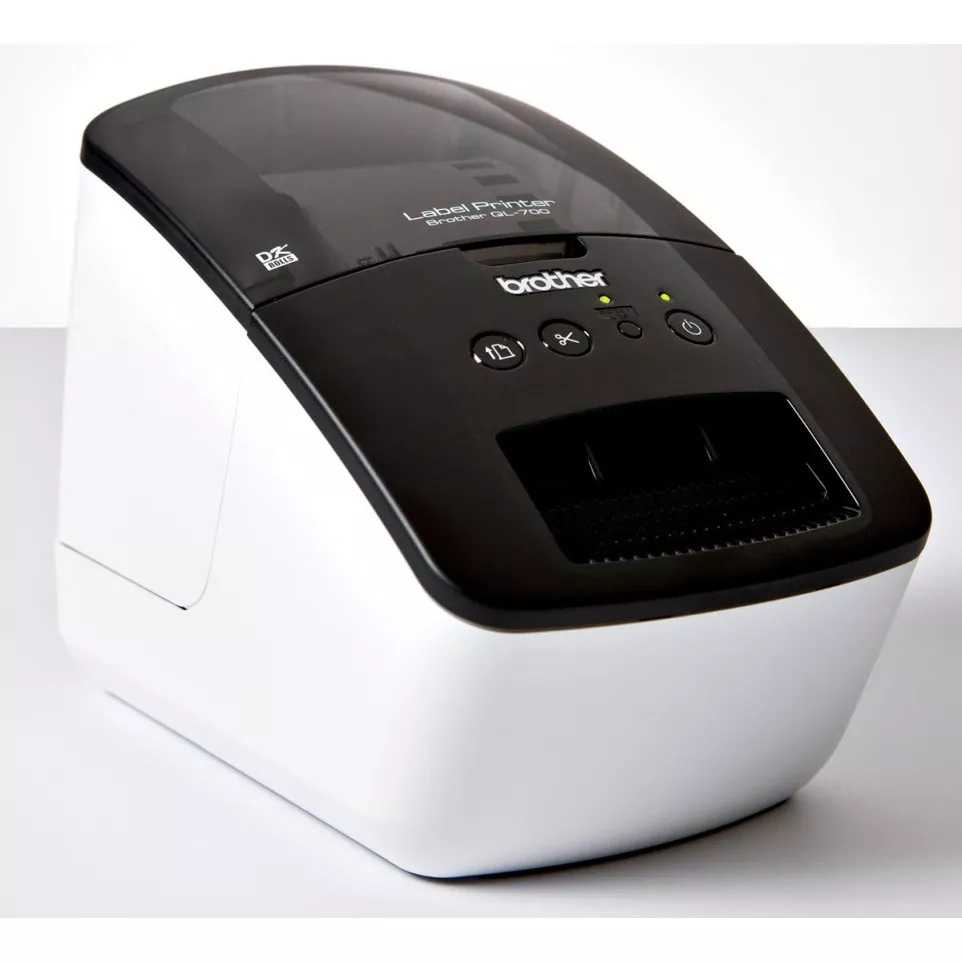

The Brother QL-700 Label Printer is designed for fast and efficient creation of address, shipping, identification, or barcode labels in office or home environments. Suitable for both single and batch label production.
Advantages
- Plug-and-play operation allows immediate use without installing drivers on Windows PCs.
- Prints up to 93 standard address labels per minute at speeds reaching 150 mm/second.
- Supports a variety of label types and sizes, including pre-sized die-cut and continuous rolls up to 1 metre long.
- Automatic durable cutter ensures precise label edges with every print job.
- No direct network connectivity; USB only limits placement flexibility away from computers.
Specifications
- Design & Technologies: Compact desktop unit with black-and-white housing; uses direct thermal printing via a thermal head; features an integrated automatic guillotine cutter.
Dimensions: 128 mm (W) x 221 mm (D) x 153 mm (H); Weight: approx. 1.12 kg (excluding DK roll).
- Durability & Standards: Designed for frequent office use; maintenance-free thermal technology. Operating temperature range from +10°C to +35°C; humidity range from 20% to 80% (non-condensing).
- Performance:- Print speed: Up to 150 mm/sec or 93 labels/minute
- Resolution: Up to 300 × 600 dpi in high-resolution mode
- Maximum print width: 59–60.96 mm
- Label length: From 12.7 mm up to 1 m
- Compatible label widths: From 12–62 mm- Automatic recognition of installed DK rolls prevents alignment errors [1][3][4][9].
- Differentiating Features:- Built-in P-touch Editor Lite software for Windows enables labelling without full software installation.
- Integrates easily with Microsoft Word, Excel, and Outlook.
- Mac users can install included design software via CD-ROM [3][4].
- Supports barcodes and graphics on custom labels.
How it works
Connect the QL-700 via USB cable, insert a compatible DK roll cartridge, then design your label using built-in P-touch Editor Lite software or bundled editing tools.
Press print—labels are produced instantly with clean cuts using the automatic cutter.
Ideal for any workplace needing reliable high-speed labelling.
