Fixed Backplate for Magnetic Retainers per Piece
€17.22
In stock
Product

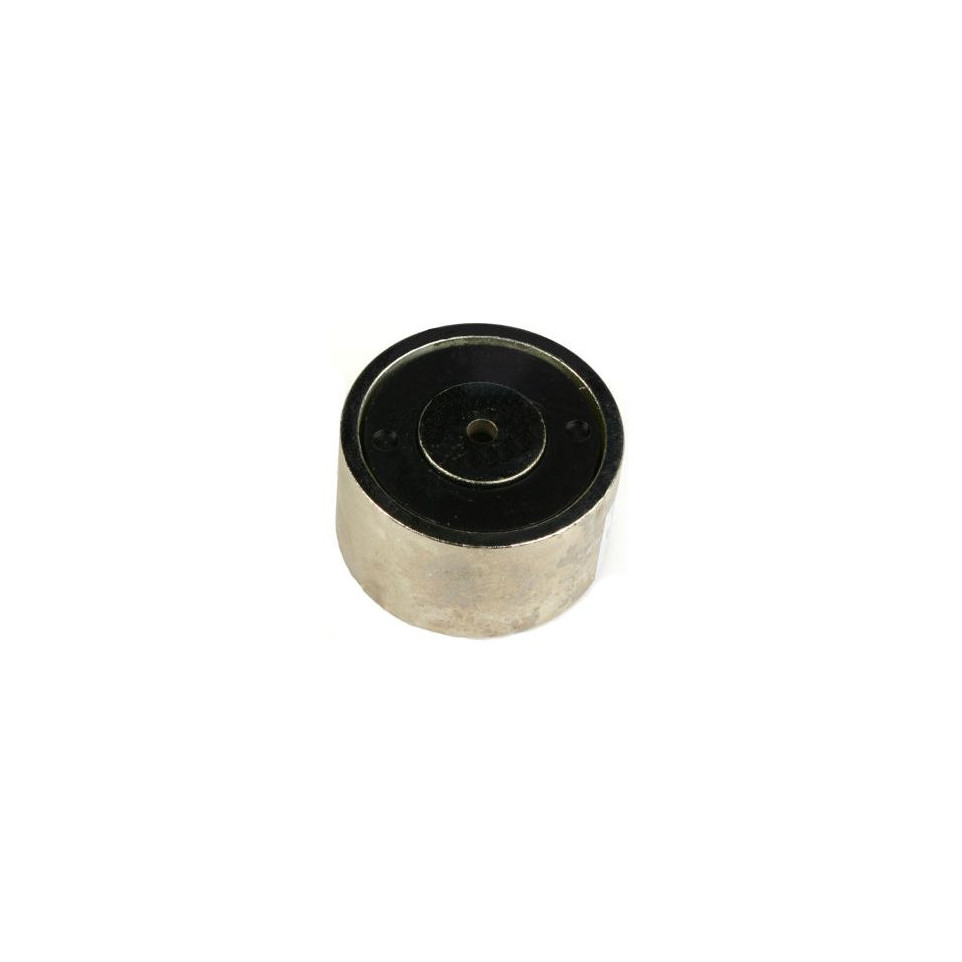

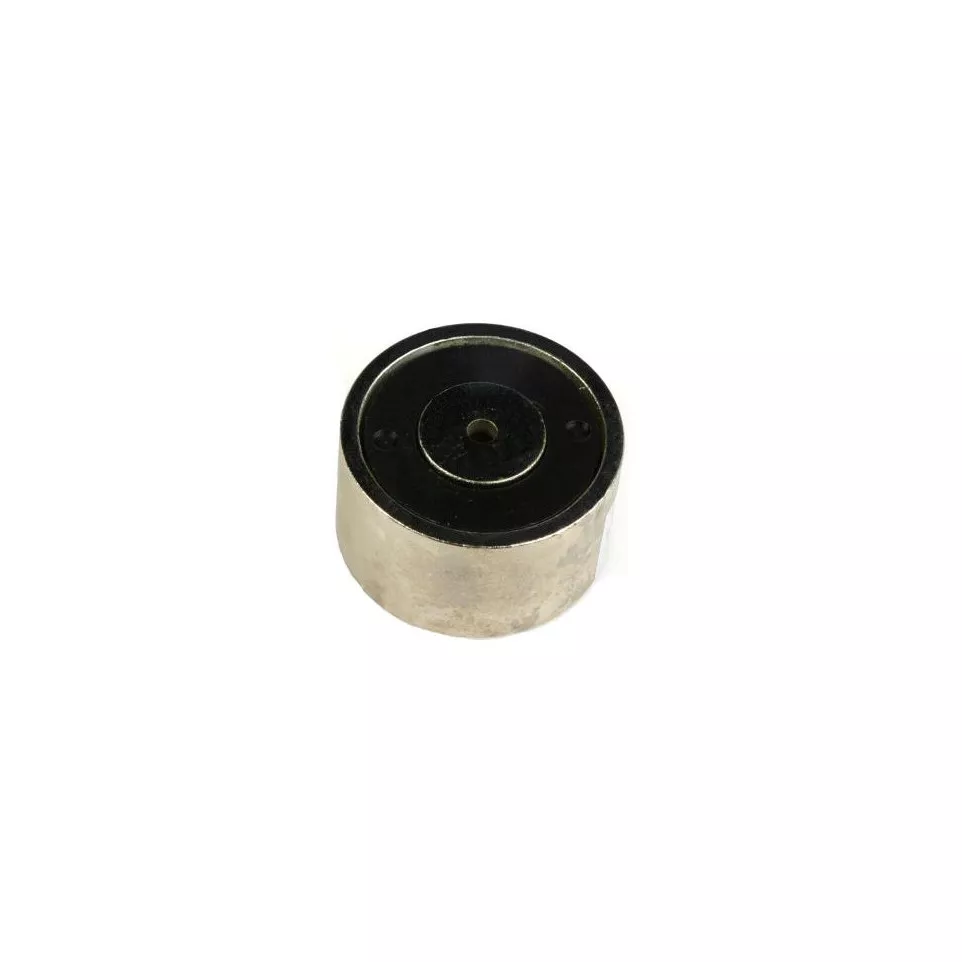

The OPERA 160 Series Magnetic Retainer is a compact, high-strength component designed for secure holding applications in industrial and technical environments. It ensures reliable magnetic retention where controlled release and robust performance are required.
Specifications
- Cylindrical design, diameter 50 mm x height 30 mm
- Rear threaded M8 face for easy installation
- Operates at 24 V DC, current draw 65 mA
- Retention force over 55 kg
- Supplied without counter plate
Usage
Install the retainer by threading the M8 rear face into a suitable mounting point. Connect to a 24 V DC power supply; the device delivers powerful magnetic holding force to secure doors, panels, or machinery elements until voltage is interrupted.
FAQ
-
What is the retention force of the OPERA 160 Series retainer?
The retainer provides a magnetic holding force greater than 55 kg. -
How is the retainer mounted?
The rear of the unit features an M8 threaded insert for secure and straightforward mounting. -
Is a counter plate included with this product?
No, the retainer is supplied without a counter plate. -
What power supply is required?
The unit operates on a 24 V DC power supply and draws 65 mA. -
What are the main use cases for this magnetic retainer?
It is commonly used for holding or locking applications in industrial machinery, access control, and automation systems.
