Fixed Backplate for Magnetic Retainers per Piece
€17.22
In stock
Product

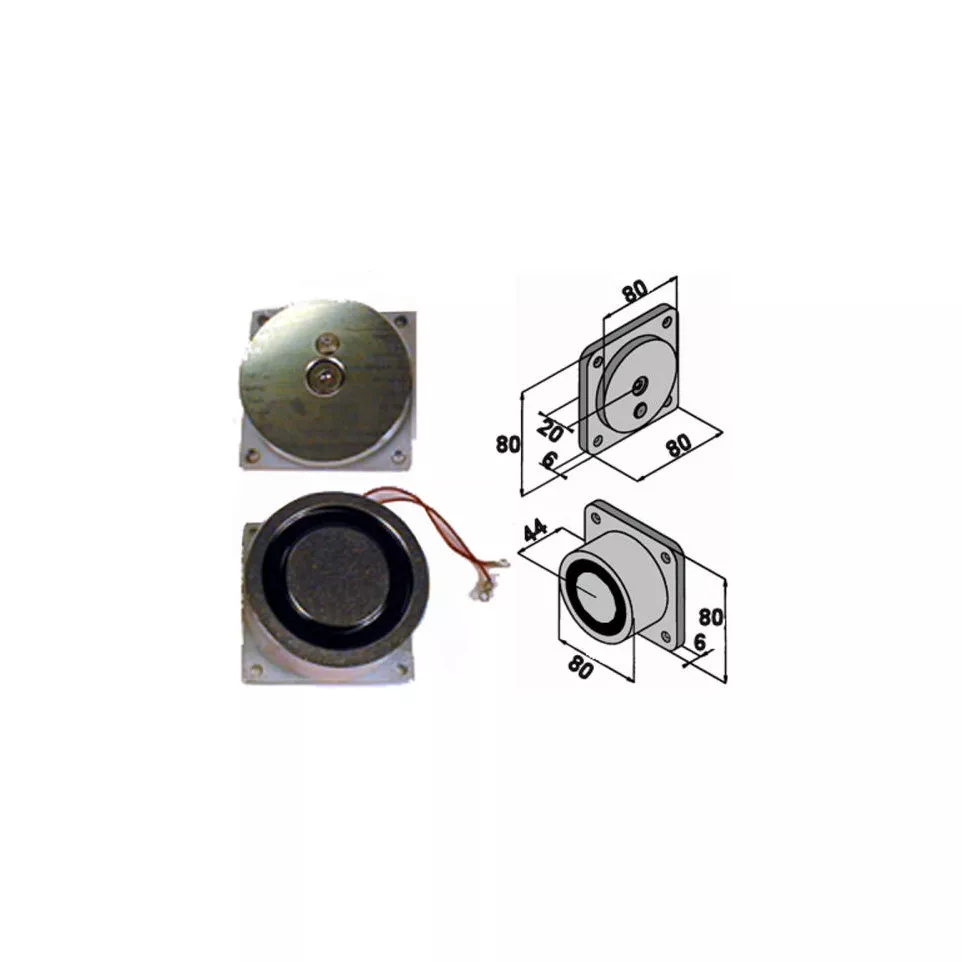

Powerful wall-mounted magnetic retainer from the OPERA series 170, designed to securely hold doors in open positions. Ideal for fire safety and controlled access areas in commercial or industrial environments.
Specifications
- Steel construction with a retainer diameter of 80 mm and depth of 37 mm
- Base dimensions: 80 mm x 80 mm x 6 mm
- 24 Vdc power supply, 150 mA current
- Retention force up to 180 kg
- Counterplate fitted with ejector to reduce residual magnetism
- Supplied with matching counterplate
Usage
Install the retainer on a wall and the counterplate on the door. When powered, the magnetic field holds the door securely. The built-in ejector on the counterplate ensures reliable door release, even after prolonged contact, by neutralizing any residual magnetism.
FAQ
-
What is the holding force of the Opera series 170 magnetic retainer?
- The retainer delivers a holding force of up to 180 kg.
-
What type of power supply does this product require?
- It operates on 24 Vdc with a current consumption of 150 mA.
-
Is the counterplate included with the product?
- Yes, the magnetic retainer is supplied with a compatible counterplate.
-
How does the ejector mechanism work?
- The ejector compensates for residual magnetism, ensuring the door is released promptly when de-energized.
-
Where is this product typically used?
- It is commonly used in commercial buildings, fire doors, or access-controlled environments to safely hold doors open until automatic release is required.
