Articulated Back Plate for Magnetic Retainers / pcs
€18.46
In stock
Product
This magnetic door retainer by Opera, series 170, is engineered for secure door holding in public or commercial buildings. It features a robust black metal housing and is equipped with a release button and an ejector to counteract residual magnetism.
Specifications
- Sturdy black varnished metal support box
- Equipped with push-button release and residual magnetism ejector

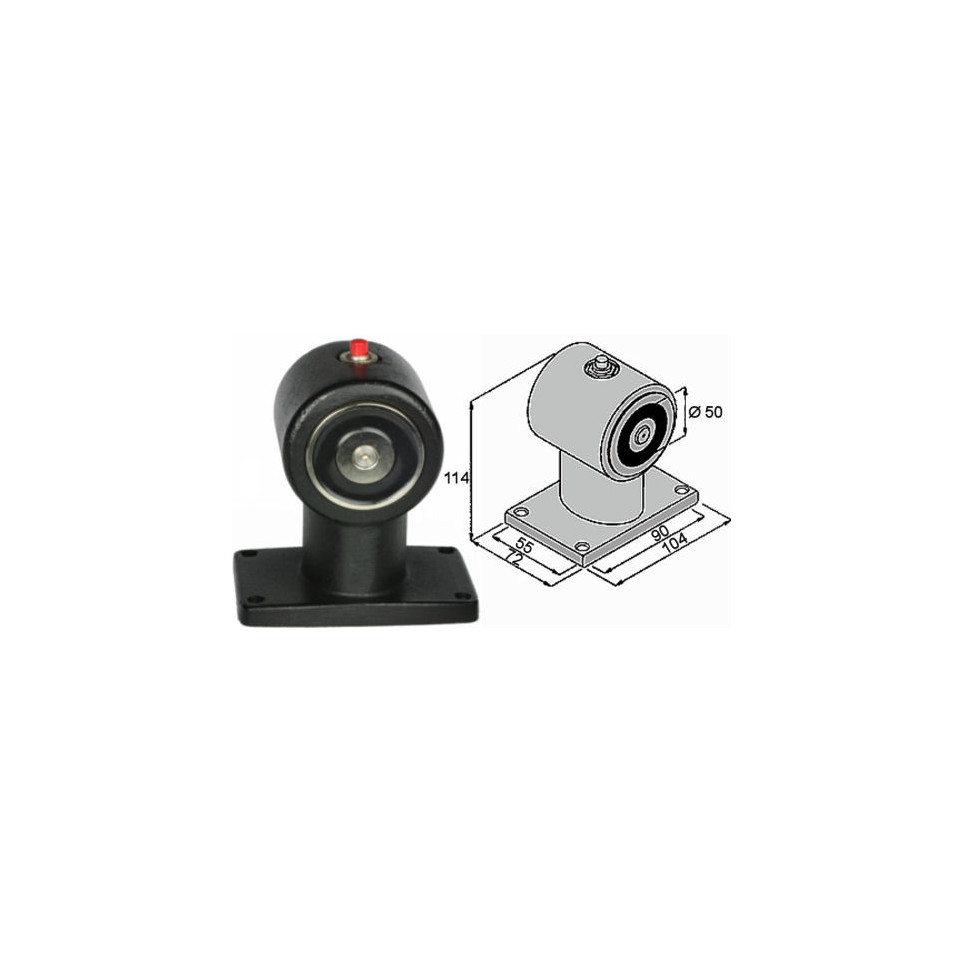

- Dimensions: 114 mm x 104 mm x 72 mm
- Power supply: 24 Vdc; Current draw: 65 mA
- Retaining force: 50 kg
- Delivered without counter plate
Usage
Install the retainer on the floor to securely hold doors open via its magnetic force. Press the release button to disengage the magnetic hold and close the door; the integrated ejector assists in counteracting any residual magnetism, ensuring smooth operation.
FAQ
-
What power supply is required for this retainer?
The device operates on 24 Vdc with a current draw of 65 mA. -
What is the maximum holding force?
The retainer provides a holding force of up to 50 kg. -
Is the counter plate included in the package?
No, the product is delivered without a counter plate. -
How is the magnetic hold released?
A manual push-button is used to release the magnet and an ejector compensates for any residual magnetism. -
What are the main applications for this product?
It is suitable for holding open doors in public or commercial spaces, ensuring controlled access and safe closure when needed.
