Usage
This double Euro profile cylinder is used to secure residential or commercial doors requiring high resistance against snapping, drilling, and unauthorized key duplication. It is suitable for applications such as armored doors, shops, and small offices.
Advantages
- Enhanced snap resistance with a steel bi-material core visible at both ends of the cylinder for added deterrence
- Bumping protection via the patented BKP (Bump Key Power) system to prevent unauthorized opening techniques
- High drill and pick resistance thanks to hardened steel pins and special driver profiles
- User-friendly: double clutch mechanism enables operation from either side even if a key is inserted in the opposite side
- Tested for durability up to 100,000 cycles in compliance with EN 1303:2005 standard; supplied with three reversible keys for convenience
Specifications
- Design & Materials: Brass body and plugs; laminated steel core running throughout cylinder length; nickel-plated finish; DIN standard cam
- Durability & Standards: Certified EN 1303:2005; SKG** rating; endurance tested up to 100,000 operating cycles; attack resistance: grade 1; key-related security: grade 6[1][3][7]
- Performance: Cylinder length overall: 90 mm (40 mm external / 50 mm internal); security provided by a bitting system with ten pins (six active, four passive); over 1.6 million possible key combinations[1][3][6]
- Differentiators: Double clutch functionality allows both sides to operate independently even when a key is present on one side; compatible with master-keying systems supporting up to 63,000 different cylinders per master key[3][7]
How it works

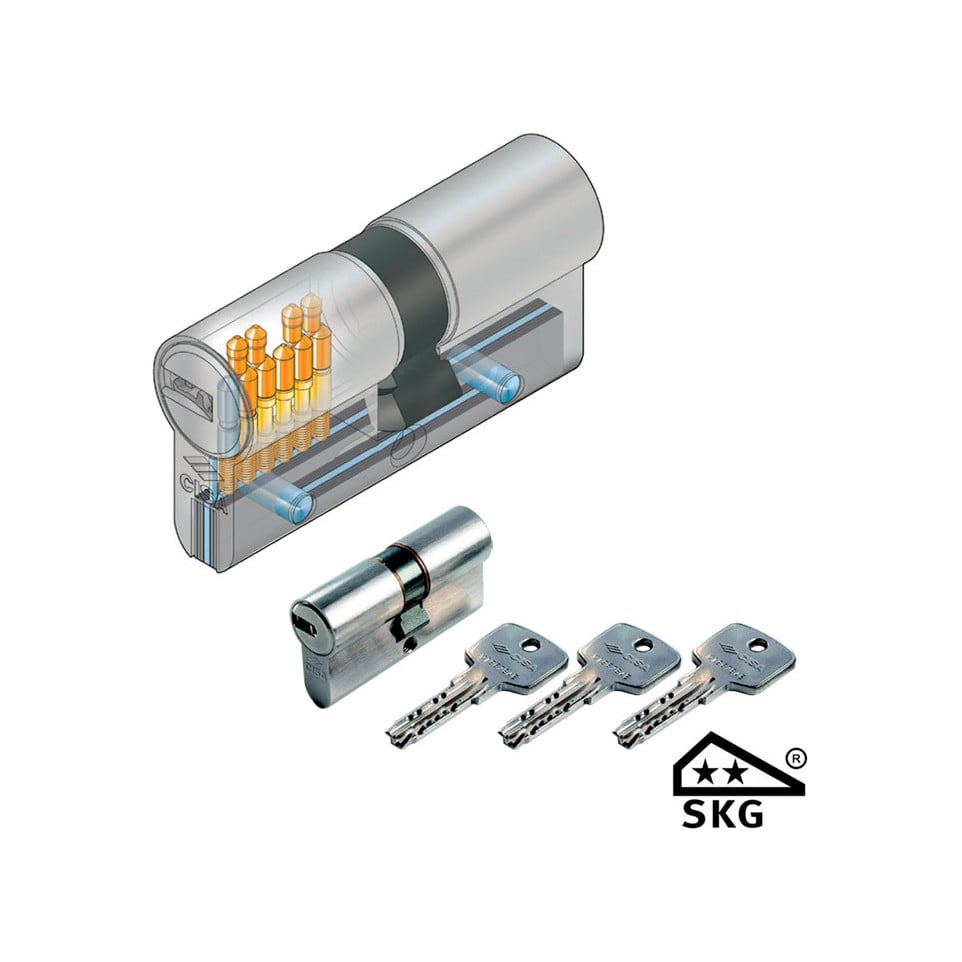

The CISA Astral S DUO Euro profile double cylinder operates by aligning its internal pin tumblers using an authorized reversible flat key. Insertions from either end are possible even if another key remains inserted on the opposite side. Security features actively resist snapping, drilling, bumping, and picking attempts during use.
