Usage

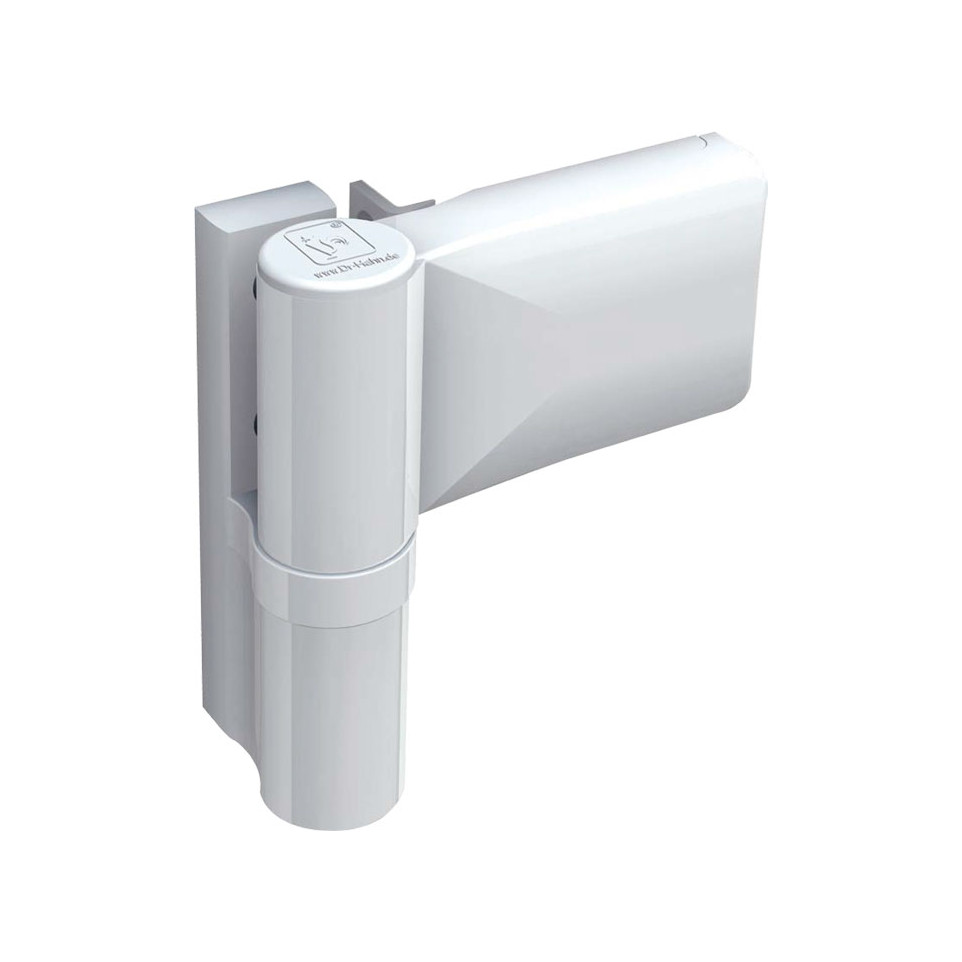

The Dr Hahn KT-V 6R hinge is designed for mounting and adjusting PVC entrance or interior doors with profiles between 22 and 27 mm, ideal for residential, commercial, or accessible environments.
Advantages
- Supports heavy doors up to 160 kg without compromising stability or function.
- Slim hinge diameter (22 mm) provides an unobtrusive appearance on modern PVC doors.
- Adjustable in six directions: height, lateral, and sealing pressure for perfect door alignment after installation.
- Manufactured from extruded aluminium ensuring high strength and corrosion resistance.
- No interruption of the seal—maintains thermal insulation and energy efficiency; not fire-rated.
Specifications
- Design/Material: Extruded aluminium construction; available in RAL colours for visual integration with door design. Compatible with profile upstands of 22–27 mm diameter.
- Durability/Certifications: Designed for very heavy usage (Class 4); tested to withstand at least 200,000 opening cycles. CE-certified according to EN1935:2002 (class in testing); SKG two-star security rating pending certification; corrosion resistance class up to salt spray test class five (in preparation).
- Performance: Max load capacity of up to 160 kg per set depending on frame system. Adjustable horizontally (+/-3 mm), vertically (+/-3 mm), and sealing pressure (+/-0.4 mm).
- Differentiating Features: Suitable for left- or right-handed installations; factory pre-assembled parts streamline fitting. Maintains full clear width—ideal where wide access is required such as hospitals or public buildings.
How it works
The KT-V hinge directly mounts into the frame and sash of PVC doors using included fastening hardware. After installation, users can easily adjust position and pressure settings without removing the door itself—ensuring optimal fit, durability, and long-term performance even under frequent use scenarios.
