Usage

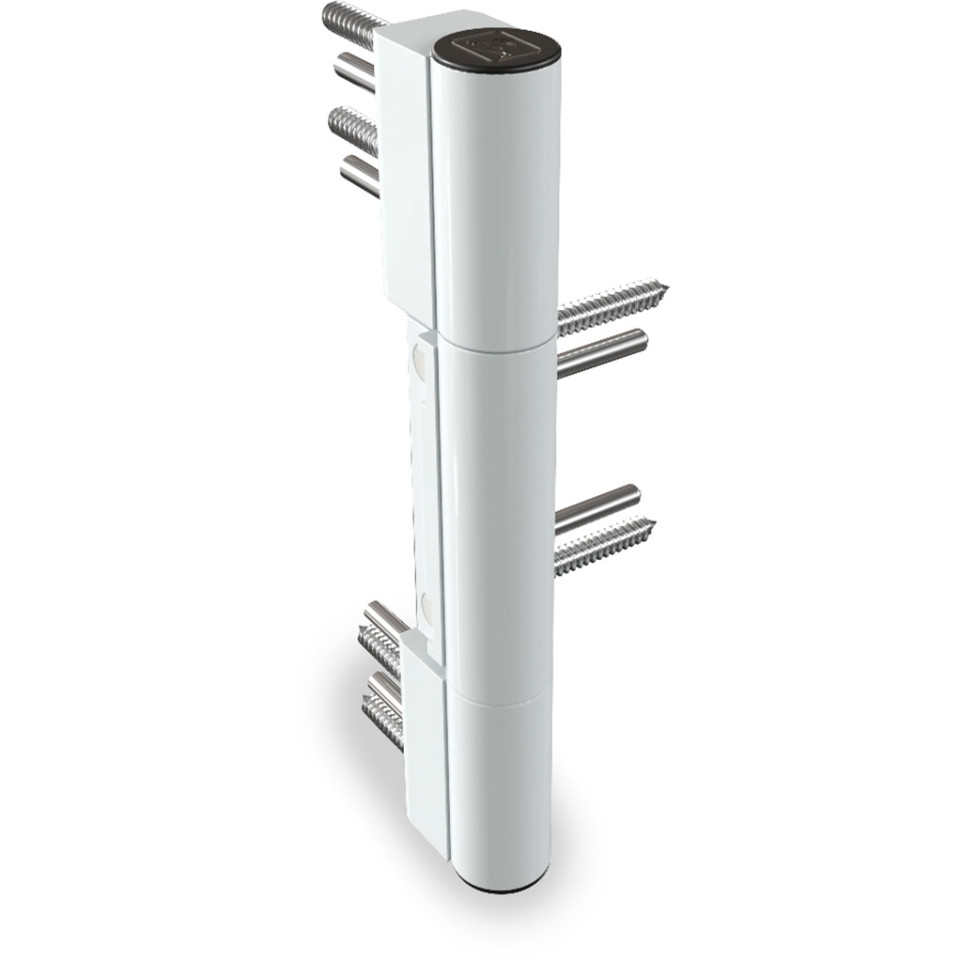

The Paumelle Dr.Hahn KT-RN 3 lames 0° is designed for mounting and securing PVC doors in residential, commercial, or industrial contexts requiring high reliability and stable alignment over frequent use.
Advantages
- Supports heavy doors up to 160 kg depending on door/frame design, suitable for large or reinforced PVC entries.
- Very slim hinge curl of only 22 mm preserves the modern appearance of the door profile while enabling discreet installation.
- No break in the door seal during installation guarantees maximum thermal insulation and energy efficiency.
- Six-way adjustability (±3 mm horizontally/vertically; ±0.4 mm sealing pressure) allows precise alignment and maintenance without removing the door.
- Corrosion resistance rating class 4 ensures durable performance even under demanding environmental conditions; not fire rated (class 0).
Specifications
- Design/materials: Manufactured from extruded aluminium; includes self-tapping screw fastening directly into frame and sash for secure mounting.[1][3][5]
- Sustainability/standards: CE classification EN1935 hinge class 14 (very heavy usage), SKG two-star certification pending.[1][5]
- Lifespan/performance: Rated for at least 200,000 test cycles with a maximum load capacity of up to160 kg per set depending on profile configuration.[1][4][5]
- Differentiating features: Accommodates overlaps/upstands from approximately16.5 mm (check profile); can be installed on either side of left- or right-opening doors; available in multiple RAL colors to match different profiles.[1][3]
How it works

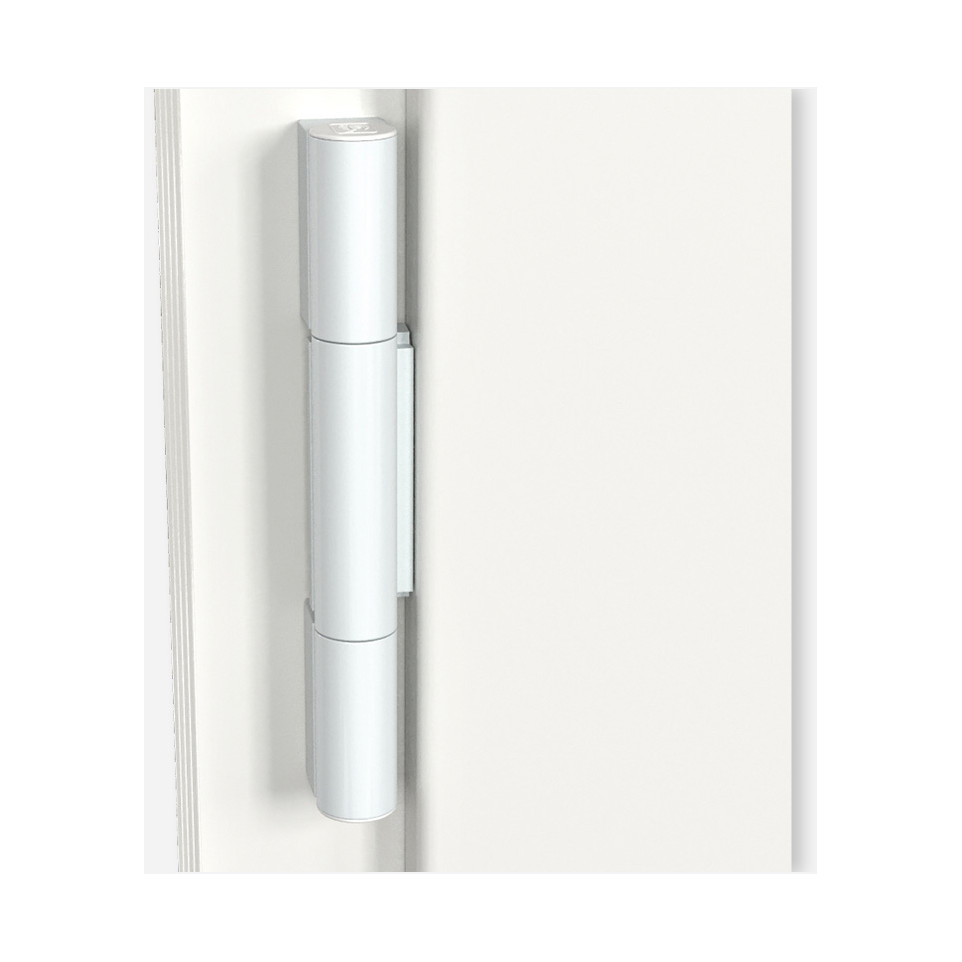

This three-part butt hinge mounts directly onto PVC door frames using self-tapping screws. Once affixed, it holds the leaf securely while permitting fine six-direction adjustments so that the installer can precisely align and tension the assembly to maintain insulation values, smooth operation, and robust long-term stability—no extensive disassembly required during adjustment or service.[1][5]
