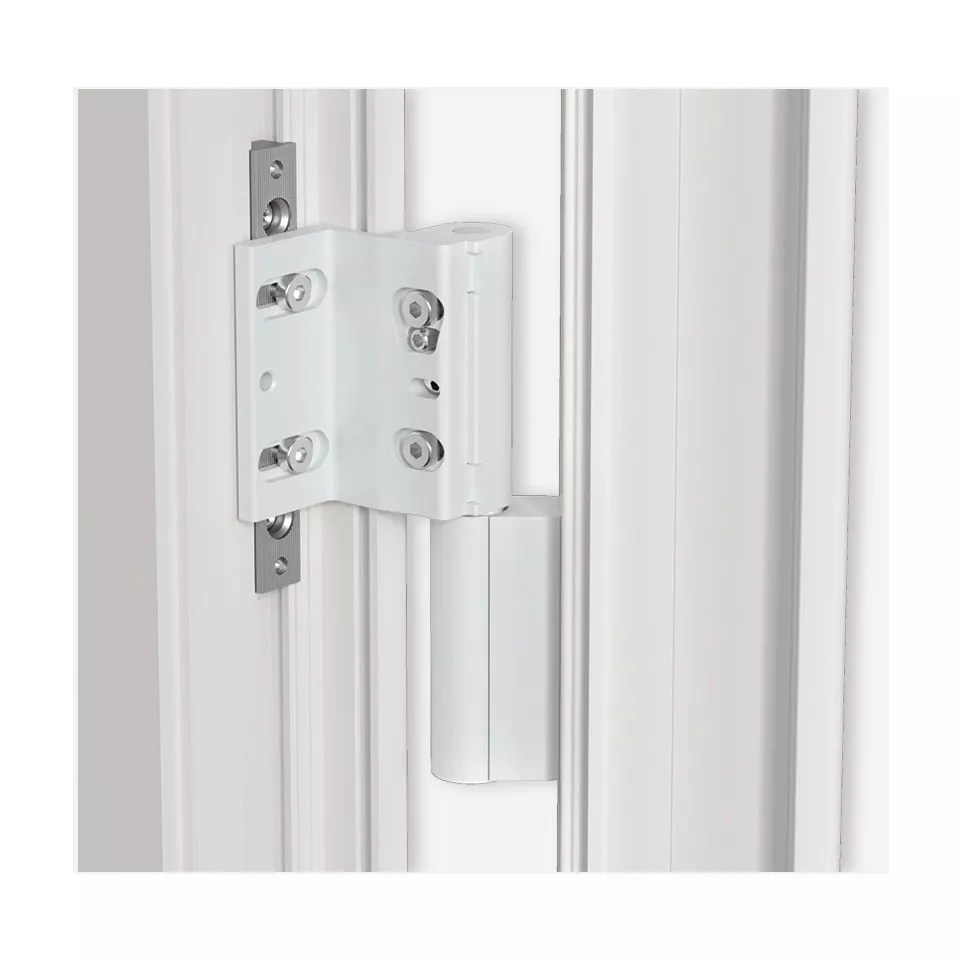

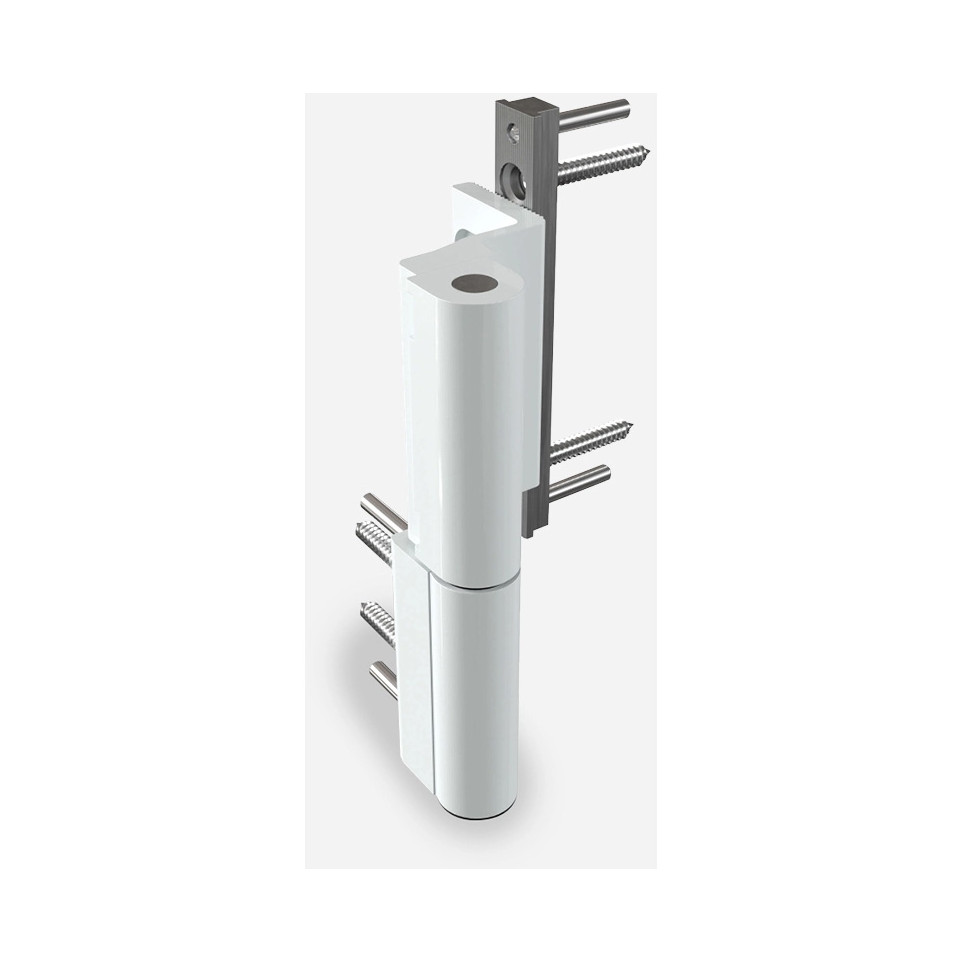

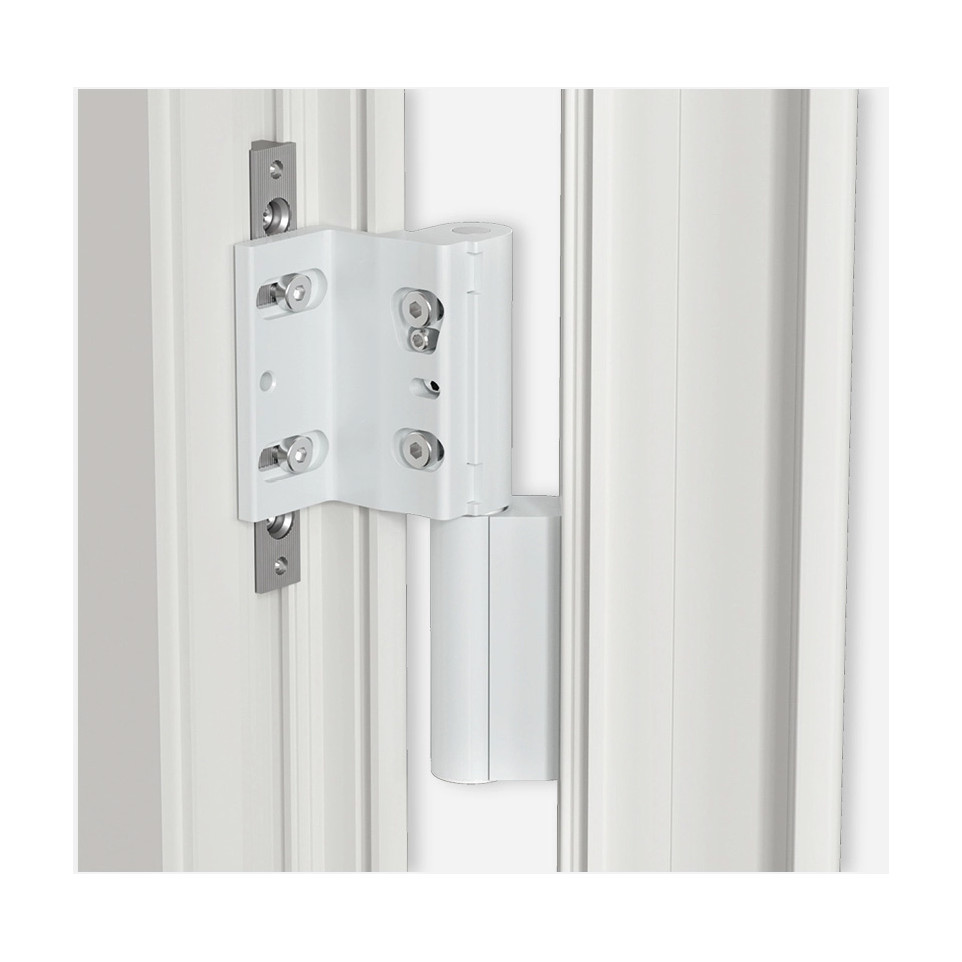

Dr Hahn KT-RV 2-Blade Hinge Nut 16/3mm Screw 50mm RAL9001 Cream per piece

Dr Hahn KT-RV 2-Blade Hinge Nut 16/3mm Screw 50mm RAL9001 Cream per piece
Dr Hahn KT-RV 2-Blade Hinge Nut 16/3mm Screw 50mm RAL9001 Cream per piece
Dr Hahn KT-RV 2-Blade Hinge Nut...
Dr Hahn KT-RV 2-Blade Hinge Nut...

Estimated delivery date :  Wednesday 10 June
€34.27 HT
In stock

Ref : FGT-1243563

Quantity

Add to your shopping List

You must be logged


Description

Usage

The Paumelle Dr Hahn KT-RV 2 lames is designed for mounting and adjusting PVC doors in residential or commercial environments, offering secure hinge support and ease of installation.

Advantages

  • Quick installation without drilling, thanks to its clamping system
  • Supports door weights up to 90 kg, ensuring stable performance
  • 4-way adjustment (horizontal ±1.5–2 mm; vertical up to +5 mm) without removing the door
  • Maintenance-free operation with self-lubricating, wear-resistant bushings
  • Cream RAL9001 finish integrates smoothly with contemporary PVC profiles; limited compatibility with some profile types may require verification before purchase

Specifications

  • Made from extruded aluminium for robustness and light weight; includes high-quality maintenance-free plastic bearing bushings
  • Certified to EN1935:2002 hinge class 12 (CE marking), suitable for professional use in demanding settings[1][3]
  • Carries up to a maximum of 90 kg per pair (depending on profile design), adjustable horizontally ±1.5–2 mm and vertically +5 mm[3]
  • Suits both DIN left/right installations; compatible with Nut/Slot width of16/3mm, screw length:50mm; colour-matched RAL9001 crème lacquered surface[1][3]

How it works

The hinge clamps directly onto the PVC door’s frame using integrated set screws. Fine adjustments in alignment can be made laterally or vertically by turning dedicated elements—without the need to remove the door—ensuring precise fit and consistent long-term operation[1][3].

See more

Product Details

Brand Dr.Hahn
Door weight (kg) 120kg
FGT-1243563
New
