Usage

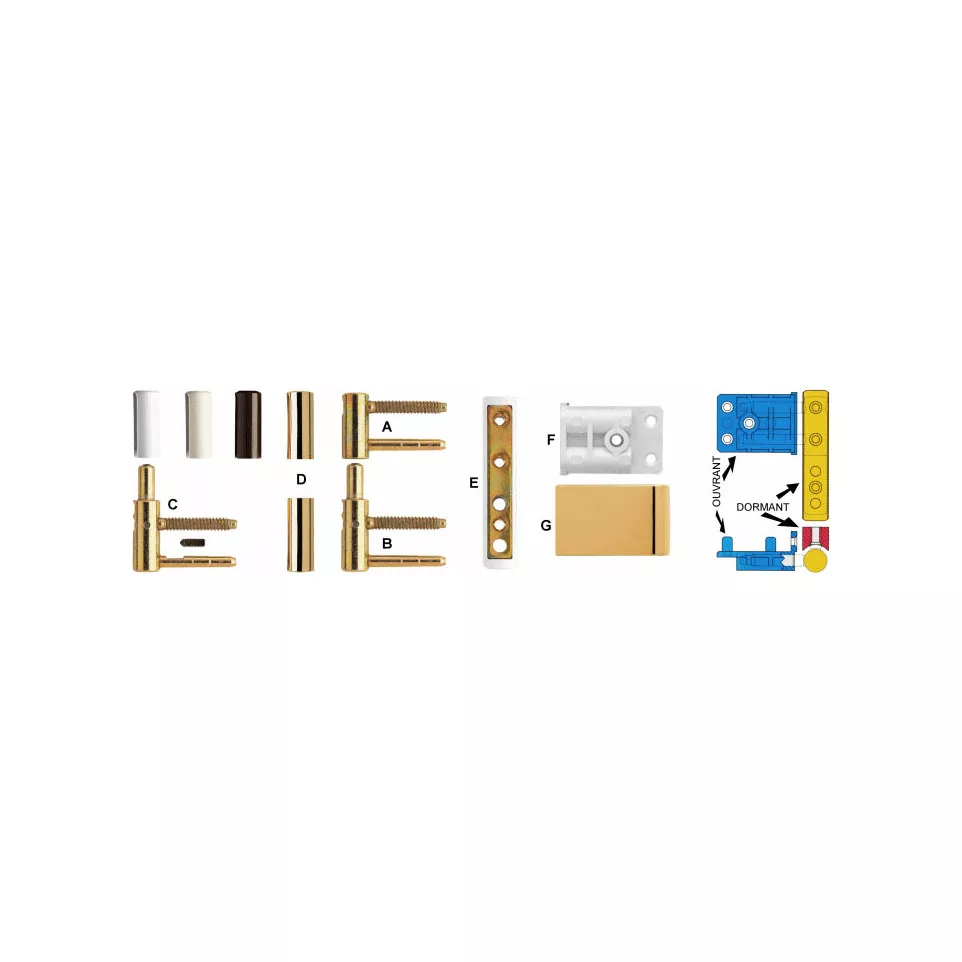

The Otlav Exacta 495 adjustable 3D male junction plate in brown is designed for secure and precise assembly of wooden doors or windows, allowing three-dimensional positioning for a perfect fit during installation.
Advantages
- Enables quick and easy height, side, and depth adjustments for optimal alignment
- Supports doors up to 120 kg with reliable stability due to robust construction
- Nylon bush reduces friction and ensures smoother hinge operation over time
- Simplifies installation—single person can complete fitting efficiently
- Available in various finishes to match different aesthetic requirements; brown finish blends discreetly with common wood colors
Specifications
- Made from stainless steel with high-resistance corrosion protection; includes durable nylon bush insert for smoother movement[1][5]
- Carries EC certification; conforms to European standards (e.g., EN1935:2002) after passing rigorous laboratory testing for lifecycle and intensive use[5][9]
- Cylinder diameter: Ø16 mm. Pin length: up to 45 mm. Door weight capacity: up to 120 kg when used according to manufacturer guidelines[3][9]
- 3D adjustability (height, lateral, depth). Designed specifically for wooden door leaves or window frames. Modular design allows matching accessories such as decorative caps[5]
How it works
This junction plate forms the male part of a three-dimensional adjustable hinge system. Once fitted on the frame or leaf, its adjustment screws enable installers to fine-tune height, side gap, and depth so the door aligns perfectly within its opening—even after initial mounting.
