Usage
The Otlav Exacta 495 adjustable 3D female hinge is used for mounting and precisely adjusting wooden or PVC doors, ensuring optimal alignment and smooth operation in both residential and commercial settings.
Advantages
- Three-dimensional adjustability (height, side, depth) allows precise door positioning with a hex key.
- Zinc-plated steel construction offers enhanced corrosion resistance and durability.
- Nylon ring reduces friction between moving metal parts, leading to quieter operation.
- Reversible design supports installation on left- or right-hand opening doors.
- Easy-to-install screw-on system accelerates fitting for professionals and DIY users.
Specifications
- The hinge is made from zinc-plated steel with a nylon bushing at contact points to minimize wear.

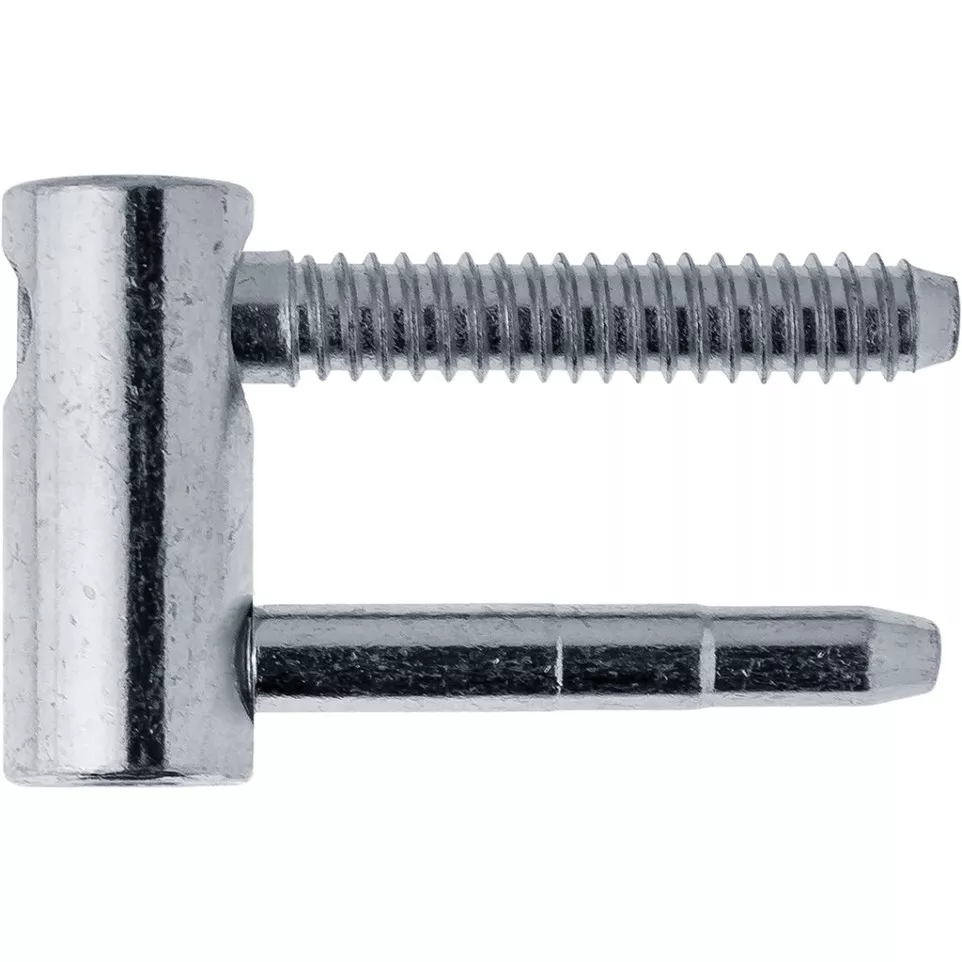

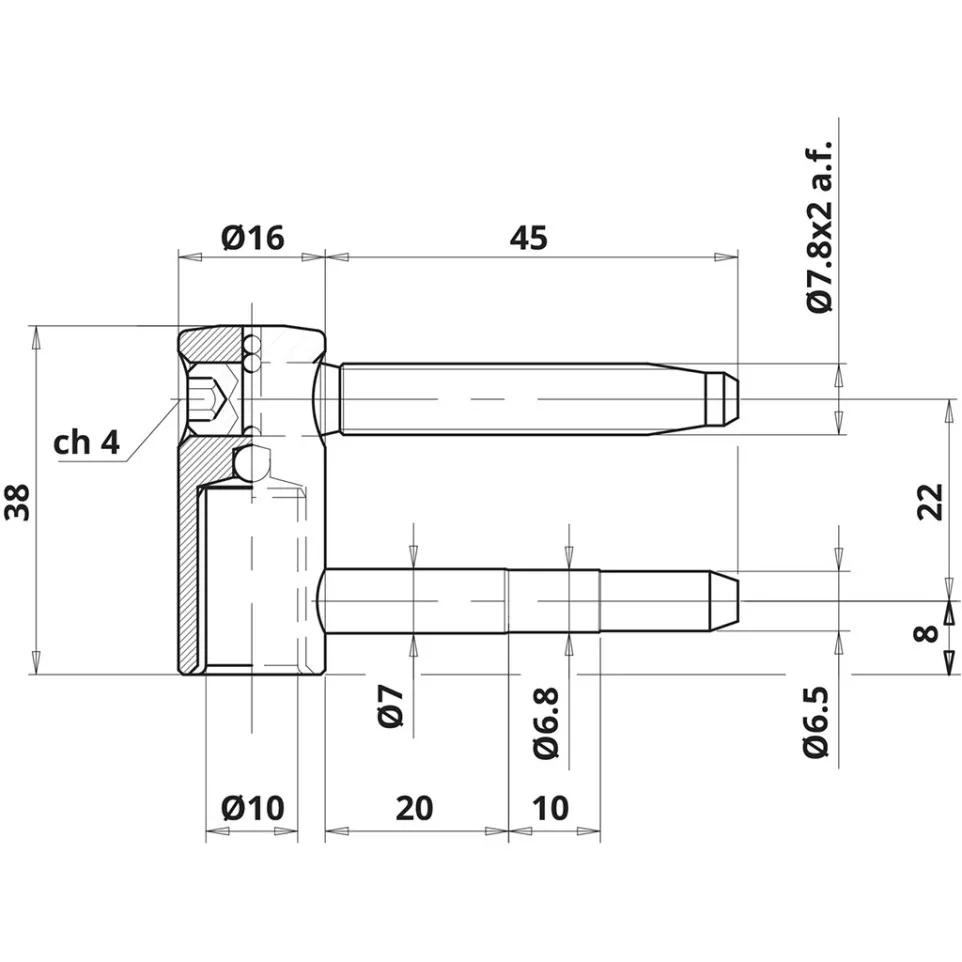

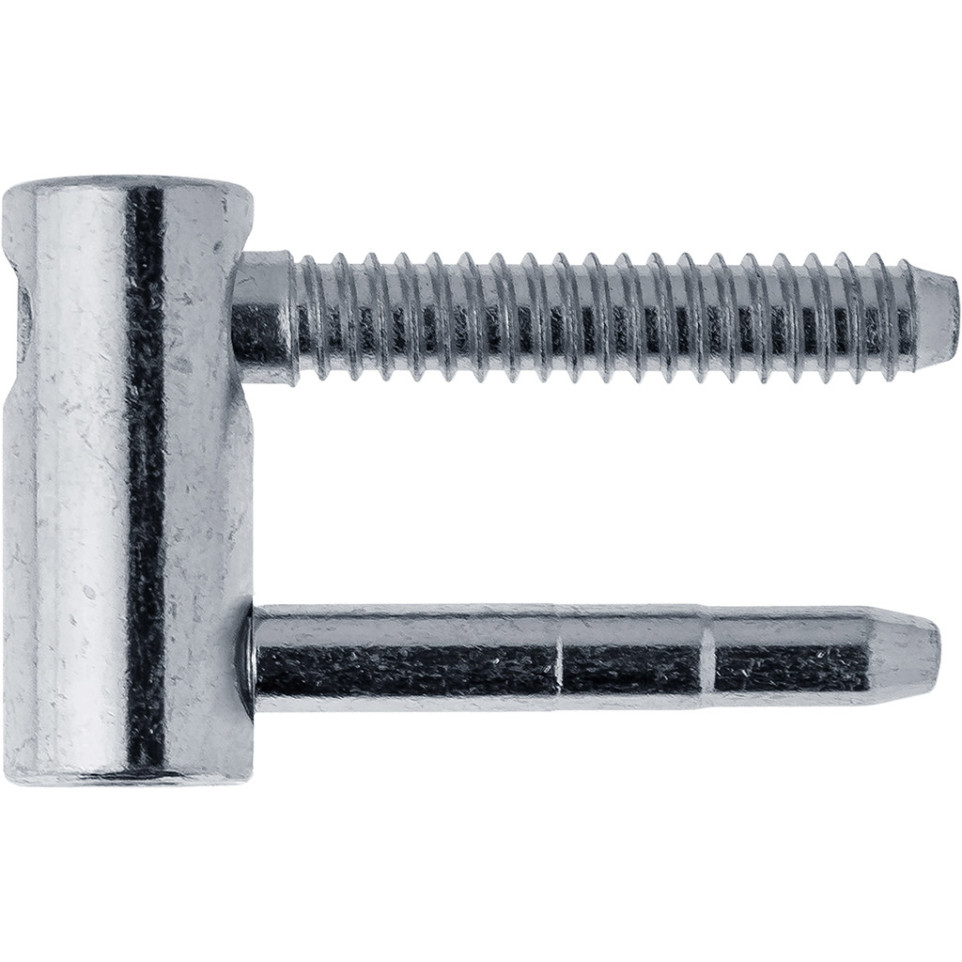

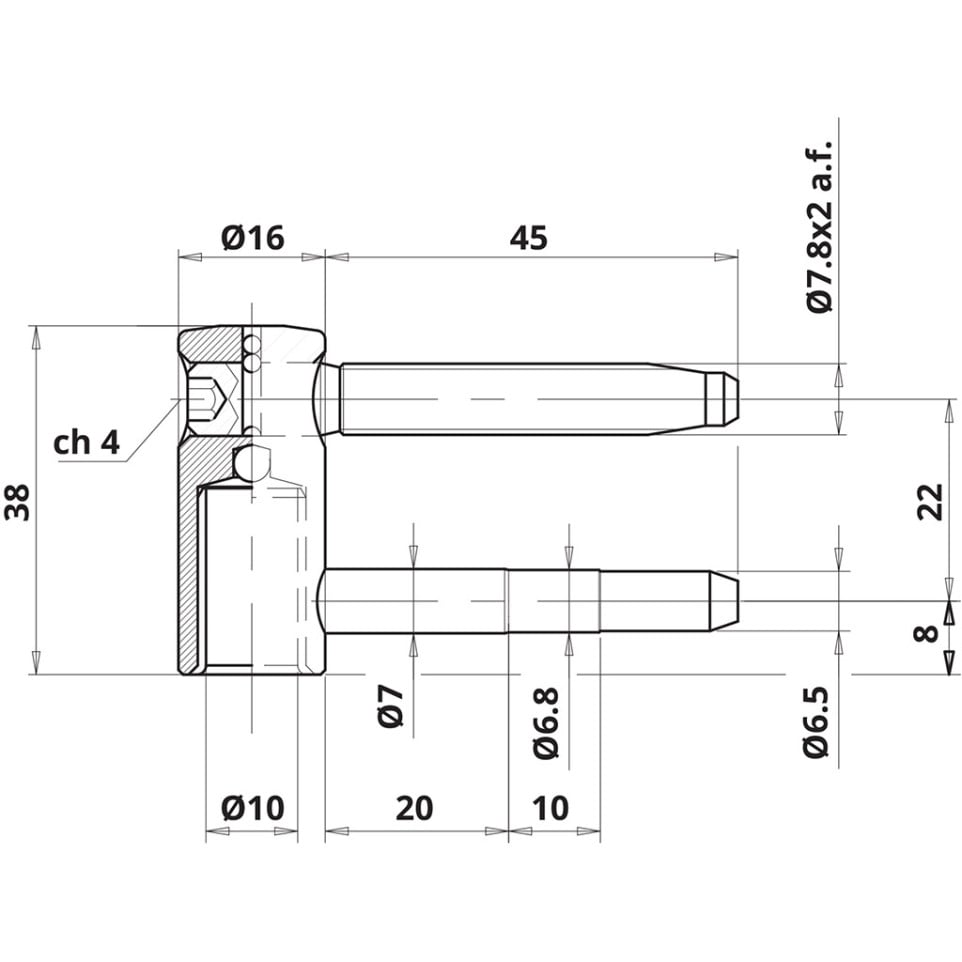

Diameter: available in Ø13 mm, Ø14 mm, or Ø16 mm; common pin size ø14: pins of 7.8 x 38–45 mm.
Fixes via threaded holes (8.1 x 45 mm typical).
- Complies with European standards for mechanical performance; tested under Regulation (EU) No.305/2011; suitable for intensive use according to Otlav’s laboratory protocols.
Finish resists oxidation per hardware industry norms.
- Bearing capacity depends on the number of hinges:
For a standard door (1.8 – 2.1 m height; width: .8 – .9 m):
– Three hinges support up to ~45 kg
– Four hinges: up to ~65 kg
– Five hinges: up to ~85 kg
- Differentiator: three-axis independent adjustment (+3 mm vertical/lateral/depth), nylon anti-friction ring at joint ensures long-lasting quiet efficiency.
How it works
The Otlav Exacta 495 female hinge screws onto wood or PVC frames. After mounting, its three-dimensional adjustment lets you fine-tune the door’s vertical position (up to +3–5 mm), lateral alignment, and depth using a hex key—optimizing fit without removing the leaf during adjustments.
