Usage

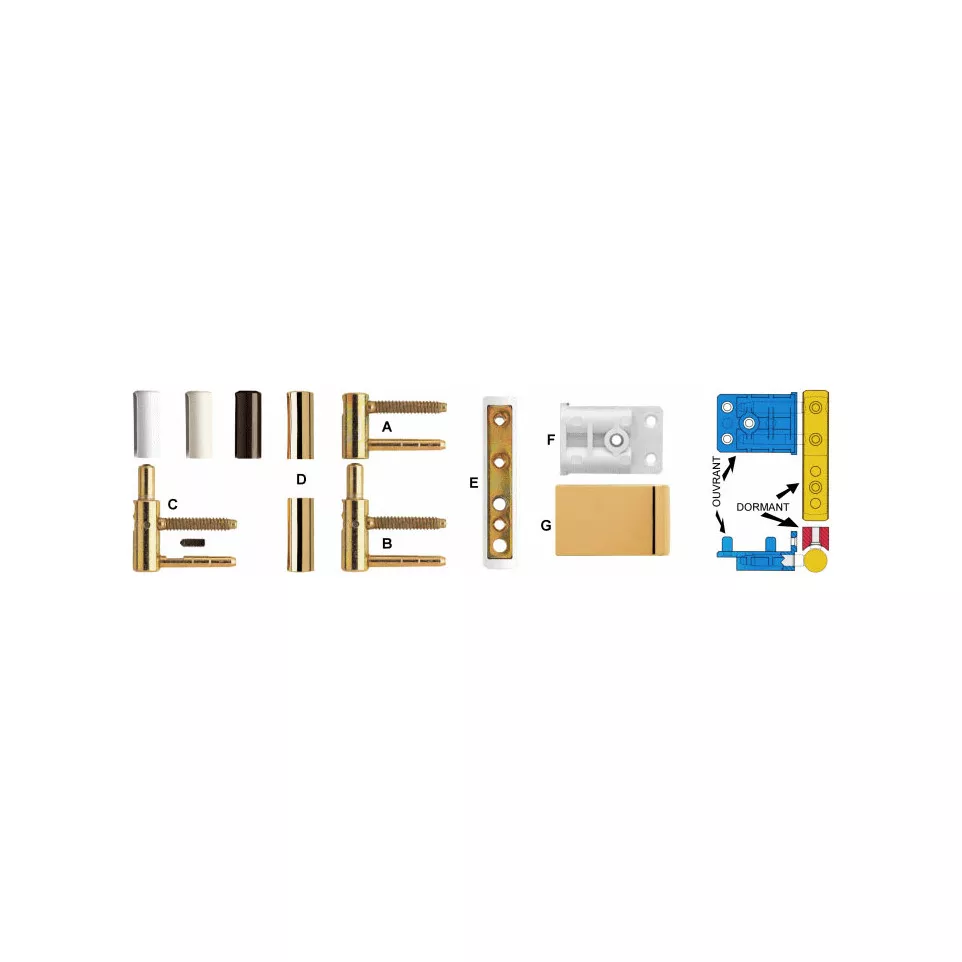

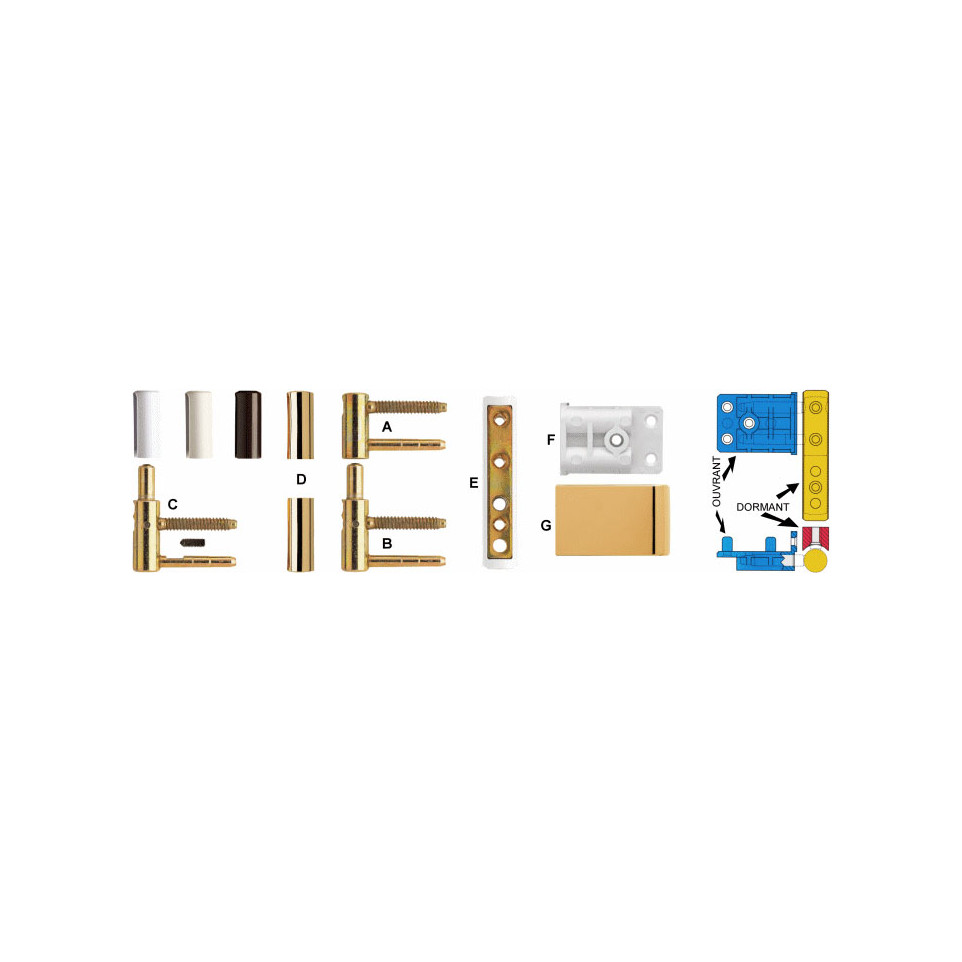

The Otlav Exacta 495 adjustable 3D male junction plate is designed for precise connection of door hinge components in wooden doors, offering reliable support and seamless integration in carpentry and joinery projects.
Advantages
- Allows three-dimensional (height, lateral, and depth) adjustment for perfect door alignment
- Manufactured from corrosion-resistant steel with white finish for enhanced durability
- Supports a maximum load capacity up to 100 kg when used with compatible hinges (3 per standard wooden door)
- Nylon bush reduces friction and ensures smooth operation over time
- Compatible with decorative covers in various finishes for aesthetic flexibility
Specifications
- Constructed from high-resistance steel; features a nylon bush to minimize wear and noise[1][3]
- Complies with EN1935 Class 4 standards; certified anti-corrosion resistance depending on finish[3]
- Keeps secure performance up to a maximum supported weight of approximately 100 kg per set (with correct installation)[3]
- Main dimensions: roll diameter Ø16 mm; pin length: typically around 45 mm; adjustable hinge height: approx.80 –85 mm[1][3][5]
How it works
This junction plate forms the male part of an Otlav Exacta adjustable hinge system. It is installed into the frame or sash, enabling precise three-dimensional adjustments that ensure optimal door alignment and lasting functionality.
