Usage

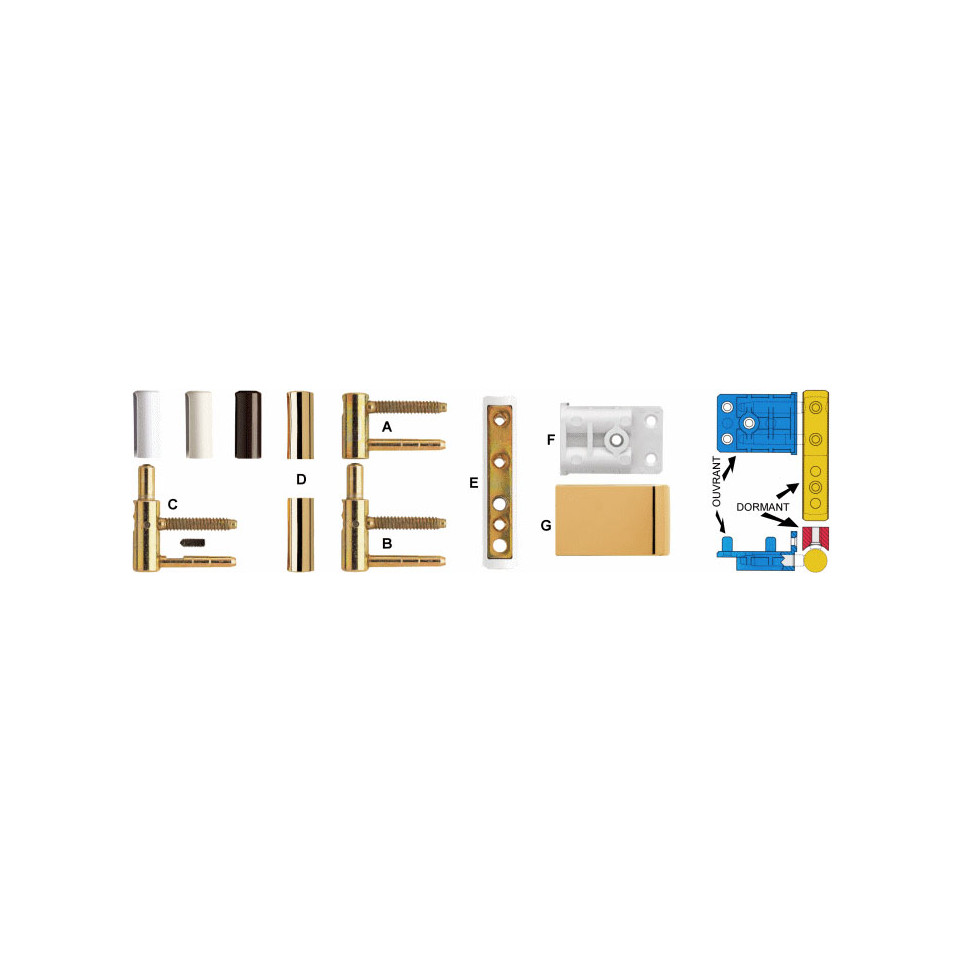

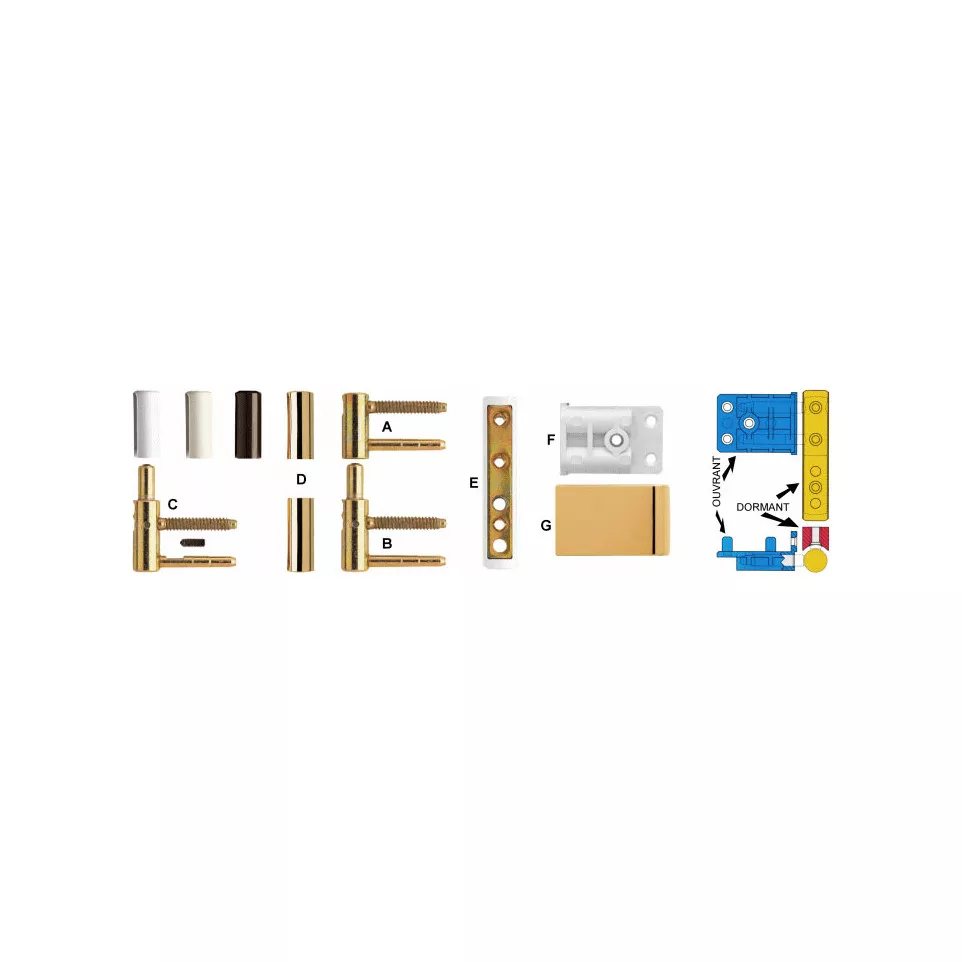

The Otlav Exacta 495 female joint cover plate is used as a finishing and protection element for the female side of adjustable 3D hinges, specifically designed for doors made of wood or PVC where precise alignment and stability are required.
Advantages
- Provides a clean and protective finish to the hinge assembly on the door leaf.
- Compatible with Exacta 495 adjustable hinges for both wood and PVC doors.
- Simplifies installation thanks to its snap-on design, requiring no special tools.
- Durable white-coated surface resists corrosion and impacts in daily use.
- A minor limitation: intended exclusively for use with Otlav Exacta 495 hinges; not suitable for other models.
Specifications
- Made from high-strength steel with white powder-coated zinc finish for enhanced durability.
Designed to fit Ø14 mm or Ø16 mm hinge versions as part of the modular Exacta system.
The product’s dimensions correspond to standard hinge heights between approximately 79.5 mm and 82.5 mm, matching typical door leaf heights.
Suitable for reversible left/right installation on rebated or non-rebated wooden or PVC doors.
Certified anti-corrosion resistance according to EN standards when paired with certified hinges.
Mounts directly onto the junction plate via integrated clips without additional fasteners (referenced from Otlav technical documentation)[1][3][6].
How it works
This decorative white cover snaps securely onto the junction plate of an installed Exacta female hinge part, protecting structural elements while providing an aesthetically pleasing look. It does not affect door movement or adjustment but maintains proper alignment and surface integrity during operation[3][6].
