The DTC Stylish 110° nickel-plated hinge is designed for overlay doors requiring reliable soft-closing and automatic shut. Ideal for cabinet and furniture installations, it features a press-fit mounting system compatible with standard drilling patterns.
Specifications
- Nickel-plated finish with integrated soft-close and automatic closing
- 110° opening angle for broad access
- Hinge cup depth: 11.5 mm; diameter: 35 mm
- For overlay applications on doors 16–26 mm thick

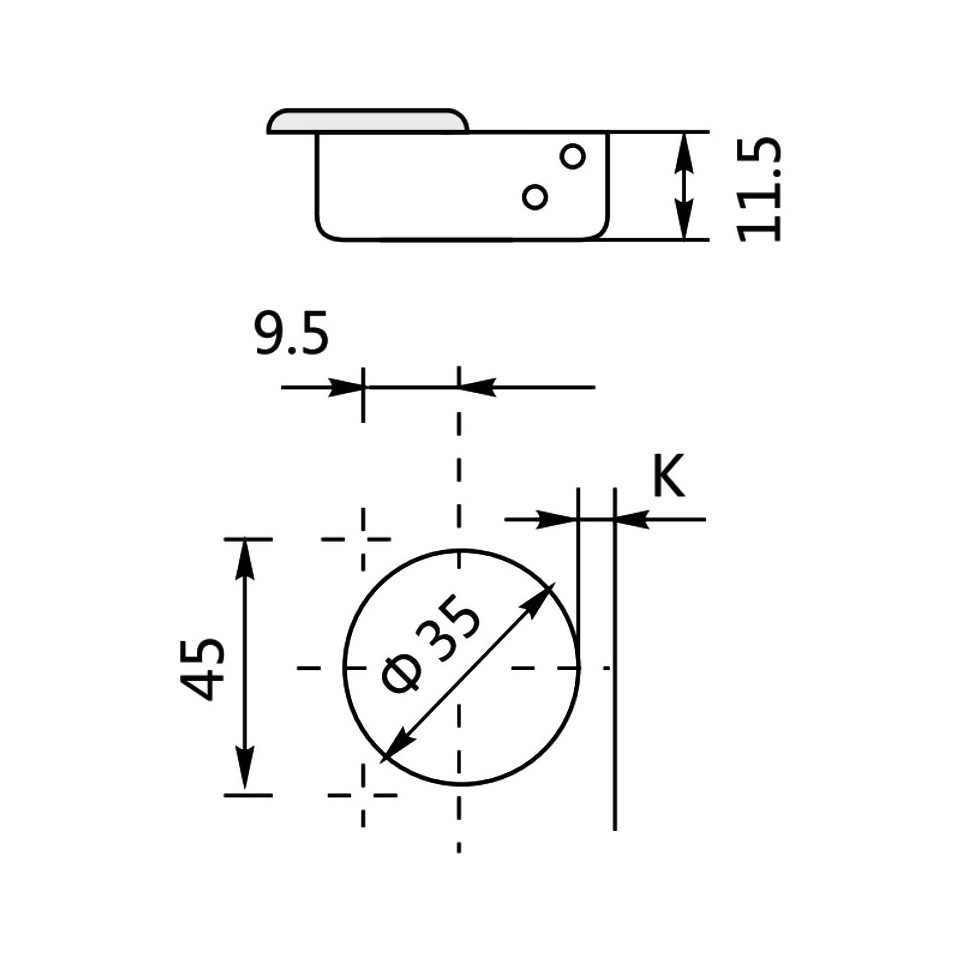

- Press-fit installation with 8 x 10 mm holes; drilling pattern: 45 x 9.5 mm

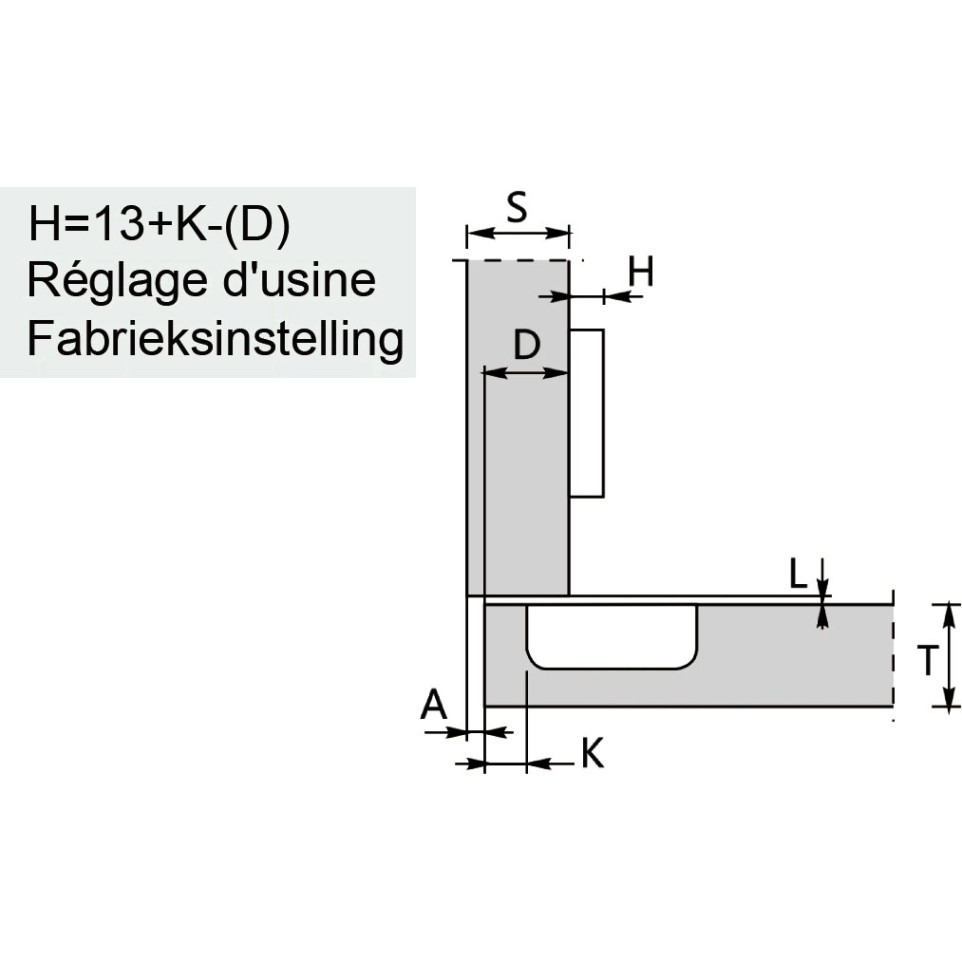

- Adjustable mounting for drilling distances (K) of 3–6 mm
Usage
This hinge is fitted by inserting the cup into a 35 mm hole on the door and fixing it using the press-fit system. It provides controlled soft closing and secure automatic shut, making it suitable for frequently used cabinets and furniture doors.
FAQ
-
What is the maximum opening angle of this hinge?
The hinge opens to a full 110°, allowing easy access to cabinet interiors. -
Is this hinge suitable for soft-close doors?
Yes, it features integrated soft-close technology for quiet and controlled door closure. -
What door thickness does this hinge support?
It is compatible with doors between 16 mm and 26 mm thick. -
Can this hinge be used for overlay applications?
Yes, it is designed specifically for overlay (en applique) door mounting. -
What are the required drilling dimensions for installation?
The hinge requires a 35 mm diameter cup hole with a depth of 11.5 mm and a drilling pattern of 45 x 9.5 mm.
